Eaton CVS3100X CVS, 3P, 100 A, 240 V, 4

Product Description

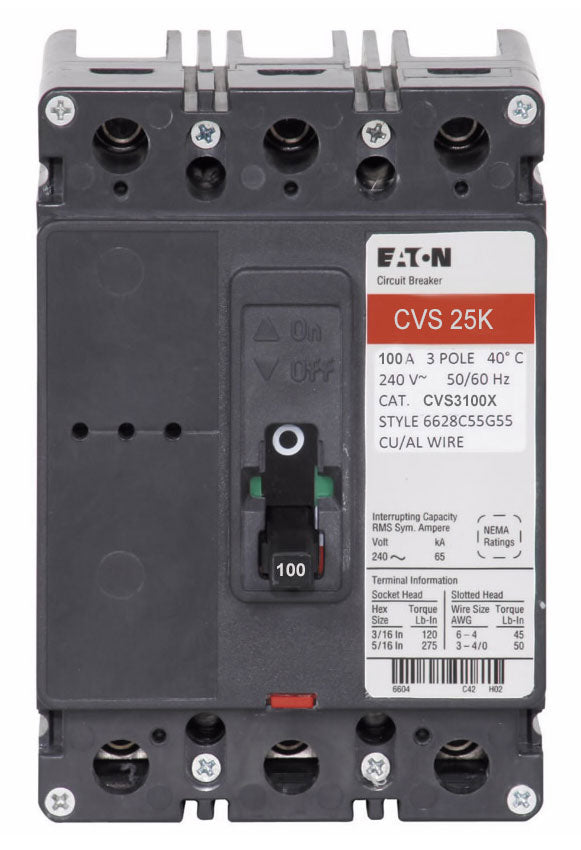

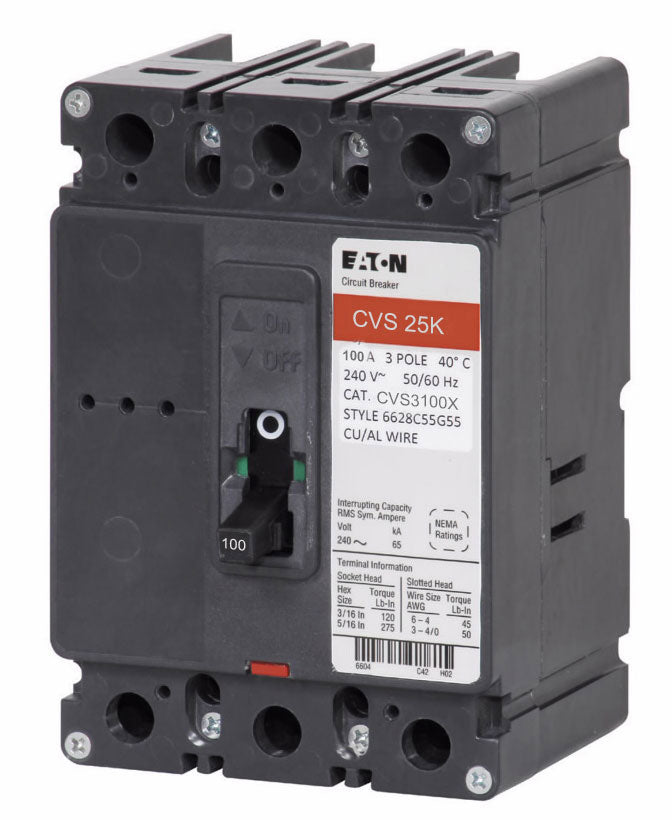

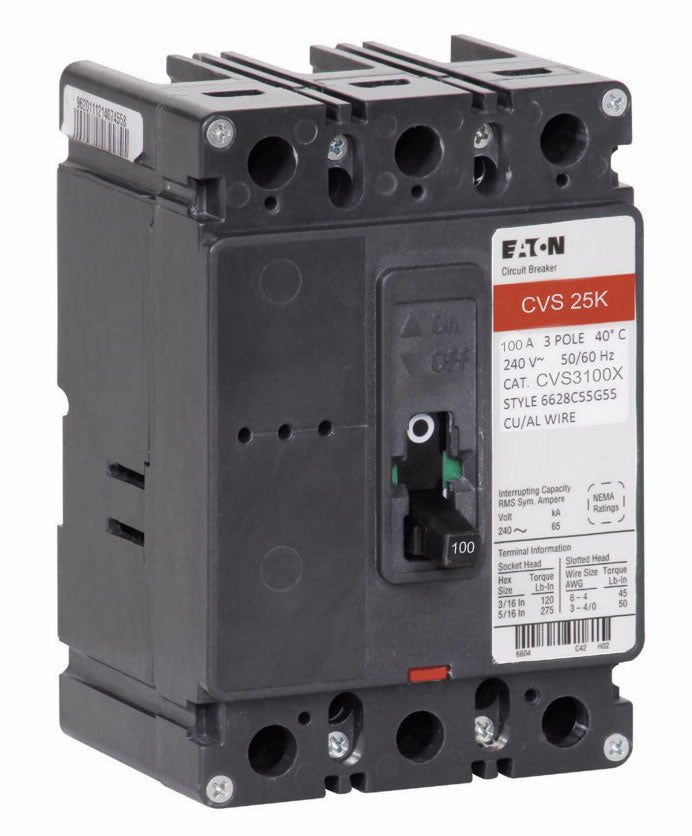

The Eaton CVS3100X is a Type CV molded case circuit breaker rated 100 A and 240 V for three-pole thermal-magnetic protection. It provides a 42 kAIC interrupting rating and accepts #6 to 4/0 AWG copper or aluminum conductors with load-side lug terminals. The bolt-on breaker includes a handle actuator, is rated to 40 �C, and measures approximately 7.5 in x 5 in x 5 in for tenant main and three-phase distribution applications.

• Three-pole Type CV molded case breaker rated 100 A with 42 kAIC interrupting capacity
• Accepts #6 to 4/0 AWG (Cu/Al) conductors with #4/0 kcmil maximum load and load-side lug terminals
• Bolt-on mounting, handle actuator, thermal-magnetic trip, temperature rating 40 �C; dimensions 7.5 in x 5 in x 5 in

Product Highlights

3-pole, 100 A thermal-magnetic protection; 42 kAIC interrupting rating; accepts #6�4/0 AWG; bolt-on load-lug connection.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: CVS3100X
• Country of Origin: Dominican Republic
