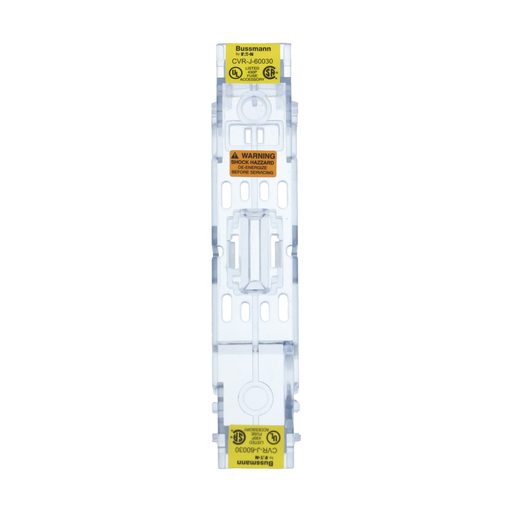

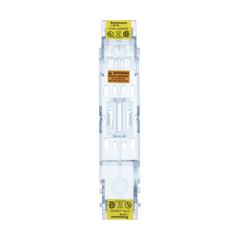

Eaton CVR-J-60030 Bussmann CVR ASY (1) Non-Indicating Fuse Block Cover

Product Description

The Eaton CVR-J-60030 is a non-indicating fuse block cover designed for use with a thirty amp, six hundred volt alternating current class J modular ferrule fuse block. Made from thermoplastic, this cover provides durability and resistance to heat. It features finger grips for easy removal, vent slots to improve cooling, and probe holes for easy testing without the need to remove the cover.

• Compatible with 30 A, 600 VAC Class J Modular Ferrule Fuse Block
• Constructed of thermoplastic material
• Vent slots enhance cooling efficiency

Product Highlights

The CVR-J-60030 is ideal for electrical assemblies and panels. Its robust design ensures safety and functionality in various applications.

Product Information

Standard Information

• Manufacturer: Eaton
• Sub Brand: Bussmann series

Technical Specifications

• Type: Non-Indicating
• Amperage Rating: 30 A
• Material: Thermoplastic
• Standards/Approvals: UL Guide JDVS, File No. E58836 | CSA 47235-622501 | UL 94-HB Flammability Rating
• Suitable For Use With: 30 A, 600 VAC Class J Modular Ferrule Fuse Block
• Application: Electrical Assemblies, Panels and OEMs
• Height: 10-1/2 inch
• Length: 16-1/2 inch
• Width: 12.8 inch
• Weight: 4.1 lb
