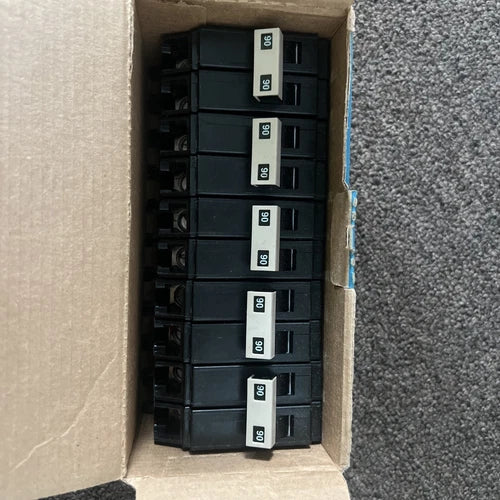

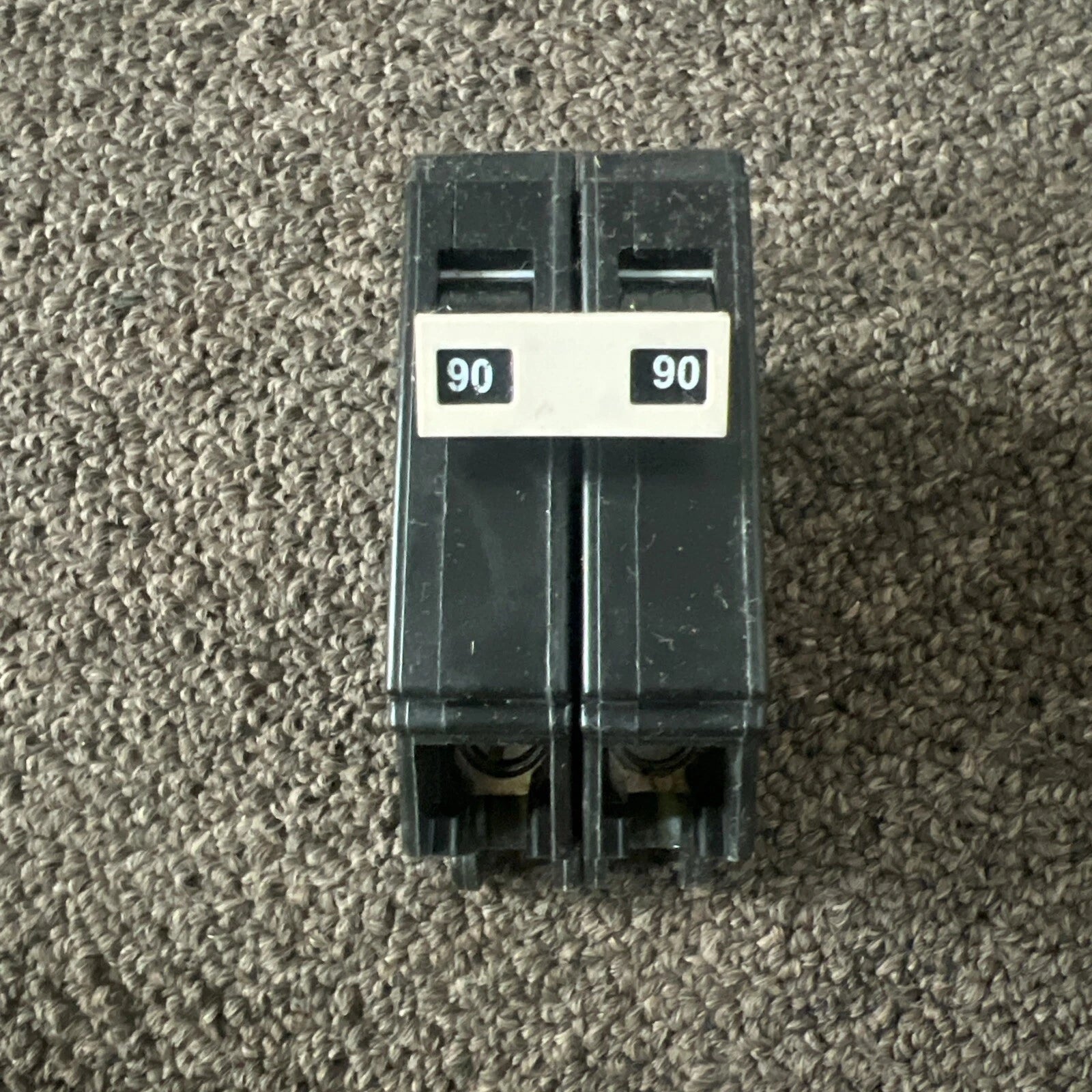

Eaton Cutler-Hammer CH290 Circuit Breaker

Product Description

The Eaton Cutler-Hammer CH CH290 is a reliable 2-pole thermal-magnetic circuit breaker. This breaker is designed to protect electrical systems from overheating and short circuits. The thermal-magnetic trip curve minimizes unintended trips during minor overloads. It is suitable for Type CH load centers and needs two three-quarter inch spaces for installation.

• Two-pole configuration
• Thermal-magnetic trip functionality
• Compatible with CH type load centers

Product Highlights

Provides necessary circuit protection while preventing minor nuisance trips.

Product Information

Standard Information

• Brand: Eaton
• MPN: CH290

Technical Specifications

• Amperage Rating: 90 A
• Voltage Rating: 120/240 V
• Number of Poles: 2
• Interrupt Rating: 10 kAIC
• Wire Size: #10-1/0 AWG Cu/Al
• Circuit Breaker Type: CH
• Trip Type: Common breaker trip
• Used With: Type CH Loadcenters
• Product Length/Depth: 3.25 inches
• Product Height: 3.375 inches
• Product Width: 1.5 inches
• Product Weight: 0.57 lb
• Certifications: UL 489
• Operating Temperature: 40 °C (104 °F)
• Electrical Connection: Screw Terminal
• Mounting Style: DIN Rail, Screw, Plug-In/On, Snap-In
• Protection Properties: Overload Protection
