EATON CUTLER-HAMMER CH CHF240 Circuit Breaker

Product Description

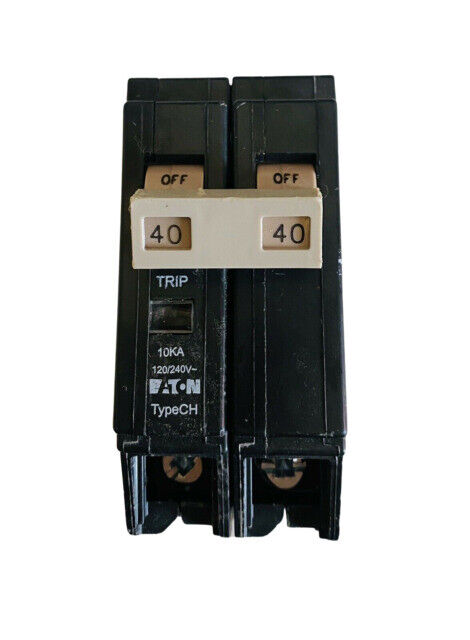

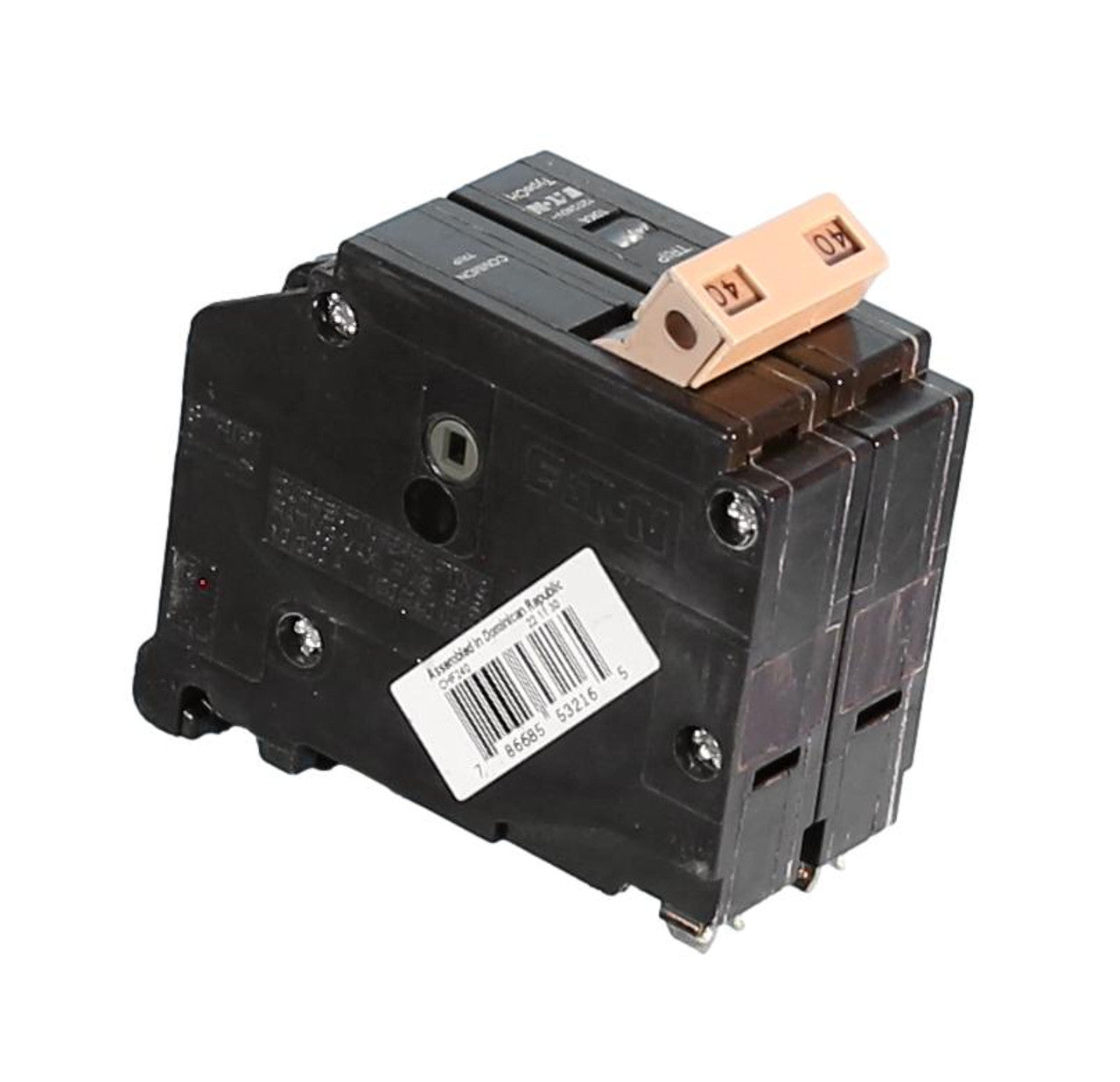

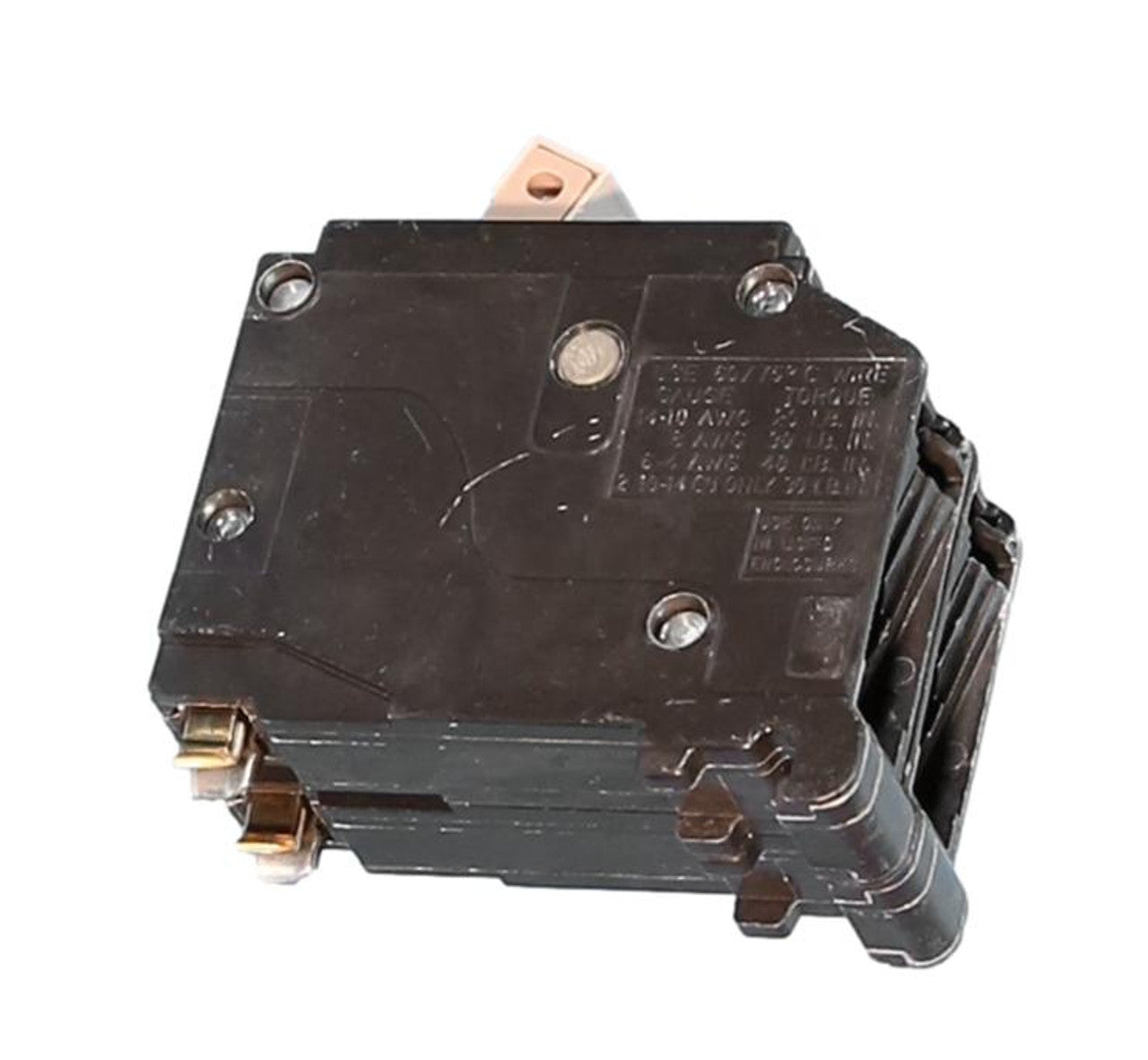

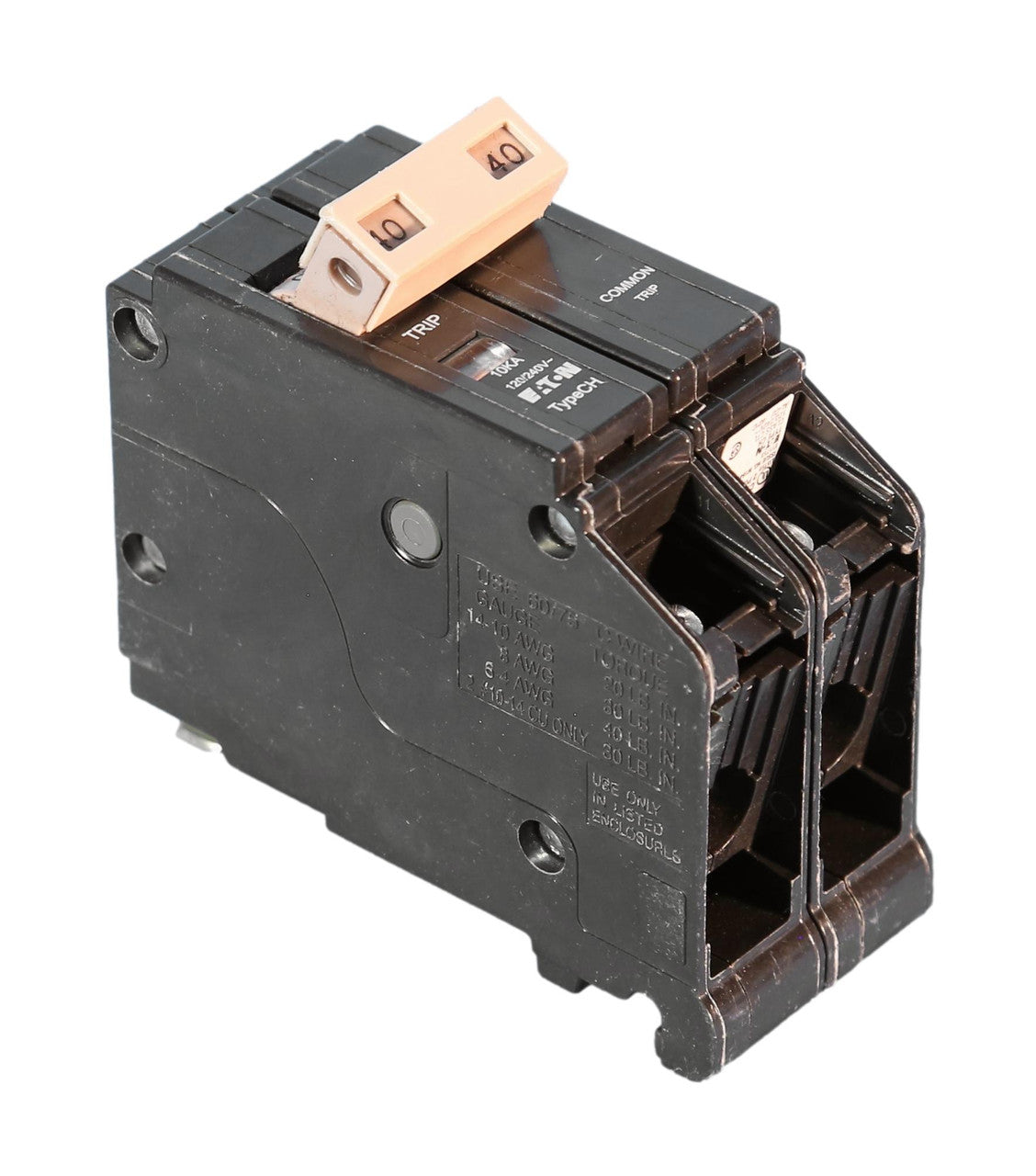

The EATON CUTLER-HAMMER CH CHF240 is a two-pole thermal magnetic circuit breaker. It operates at 120/240VAC and has a rating of 40 Amps. This model features a trip flag for visible status indication. The CHF240 is designed for overload and short-circuit protection in residential and light commercial settings.

• Two-pole configuration
• Thermal magnetic trip type
• Plug-in connection

Product Highlights

This circuit breaker is suitable for Type CH load centers and is ideal for a variety of applications.

Product Information

Standard Information

• Brand: Eaton | Cutler-Hammer
• MPN: CHF240

Technical Specifications

• Series: CH
• Amperage: 40 A
• Voltage: 120/240 VAC
• Number of Poles: 2
• Phase: 1
• Interrupting Rating: 10 kAIC
• Connection Type: Plug-In
• Protection: Thermal Magnetic
• Circuit Breaker Type: CHF
• Wire Gauge: AWG 10 to AWG 1/0, Cu/Al
• For Use With: Type CH Load Centers
• Operating Frequency: 50/60
• Mounting Type: Plug
• Operating Temperature: 60 to 75
• Product Length/Depth: 1.5 in
• Product Height: 2.6 in
• Product Width: 3.3 in
• Product Weight: 0.55 lb
• Certifications: UL 489
• Trip Type: Instantaneous
• Number of Spaces: 2
