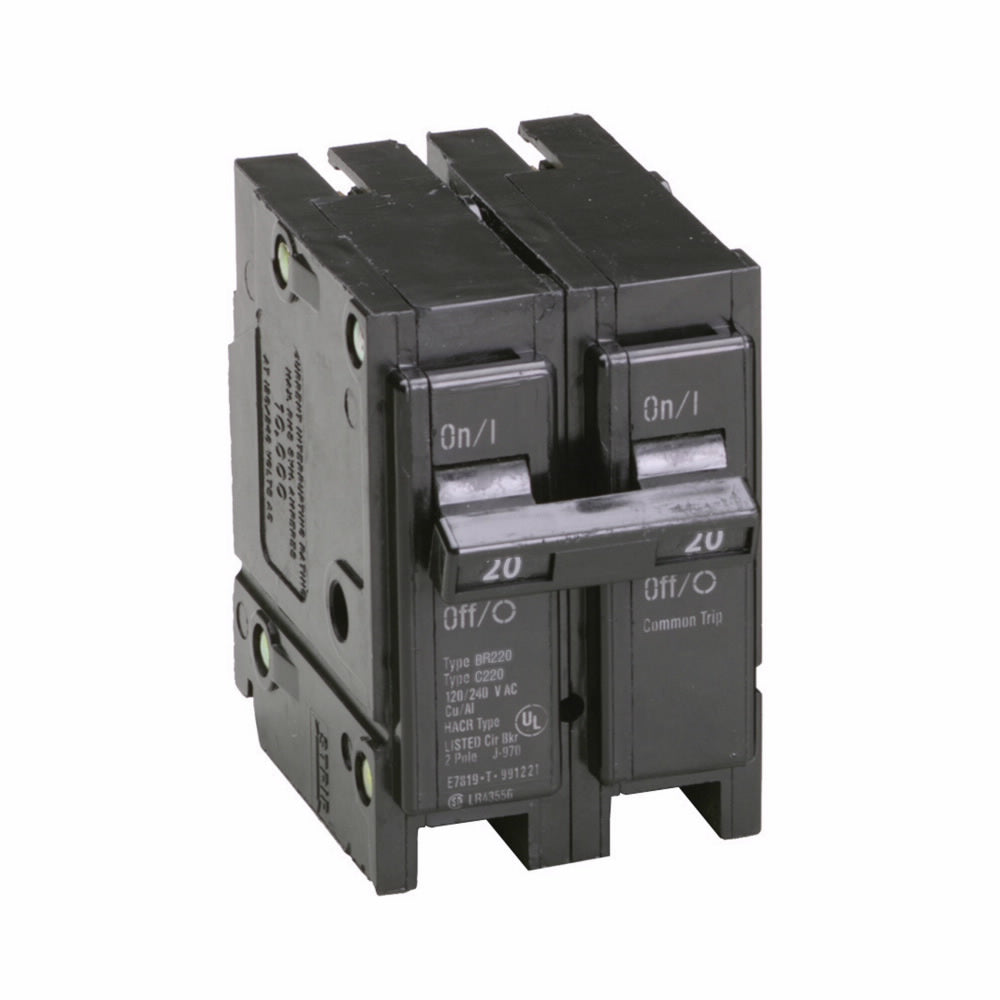

Eaton Cutler-Hammer CH-BR220 Circuit Breaker 20 Amp 2 Pole

Product Description

The Eaton Cutler-Hammer CH-BR220 is a thermal-magnetic circuit breaker rated for 20 Amps and designed for use at 120/240VAC. This device features a 2-pole configuration and provides reliable protection for various electrical applications.

• Plug-in connection type
• Long-time and instantaneous trip functions
• Suitable for type BR load centers

Product Highlights

This circuit breaker offers thermal and magnetic protection to prevent overload and short circuits. Its plug-on mounting type allows for easy installation in compatible load centers, ensuring safe operation in residential and commercial settings.

Product Information

Standard Information

• Brand: Eaton Cutler-Hammer
• MPN: CH-BR220

Technical Specifications

• Series: BR
• Amperage: 20 A
• Voltage: 120/240 V
• Number of Poles: 2
• Phase: 1
• Mounting Type: Plug-On
• Interrupting Rating: 10 kAIC
• Connection Type: Plug-In
• Protection Type: Thermal Magnetic
• Trip Functions: Long-Time and Instantaneous Trip
• Product Length/Depth: 1.9 inches
• Product Width: 2 inches
• Product Height: 2.5 inches
• Product Weight: 0.6 lb
• Wire Gauge: AWG 14 to AWG 3, Cu/Al
• For Use With: Type BR Load Centers
• Circuit Breaker Type: BR
• Frame Type: BR
• Certifications: UL 489, CSA
• Compliances: Federal Specifications Classification W-C375
