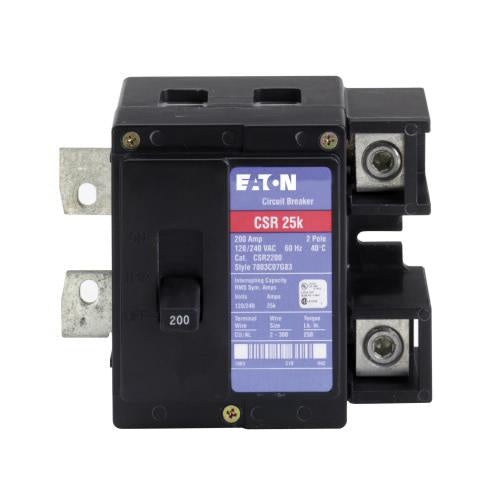

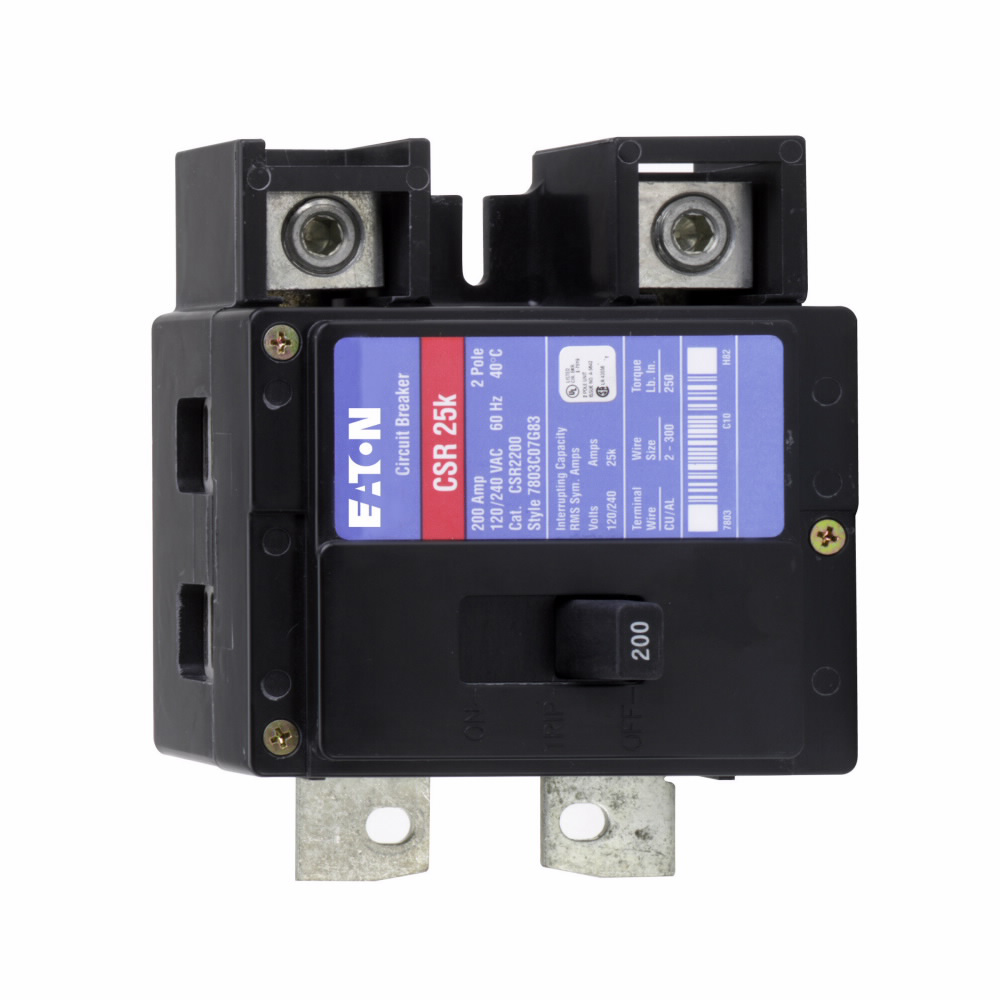

EATON CSR2200N Type CSR Standard Main Circuit Breaker, 120/240 VAC, 200 A, 25 kA Interrupt, 2 Poles

Product Description

The Eaton CSR2200N is a type CSR standard main circuit breaker designed for 120/240 VAC applications. This circuit breaker is rated for 200 amps and features a 25 kA interrupt rating and two poles. It is suitable for various installation types, including ECC unit enclosures.

• Rated for 120/240 VAC
• 200 A with a 25 kA interrupt rating
• Suitable for use in ECC unit enclosures

Product Highlights

This circuit breaker meets high safety standards and offers a direct connection to the neutral bar, which simplifies installation and reduces wiring complexity.

Product Information

Standard Information

• Manufacturer: Eaton
• MPN: CSR2200N

Technical Specifications

• Voltage Rating: 120/240 VAC
• Amperage Rating: 200 A
• Number of Poles: 2
• Interrupt Rating: 25 kA
• Dimensions: 5.3 in L x 4.2 in W x 3.52 in H
• Mounting Type: Surface
• Temperature Rating: 60 to 75 deg C
• Wire Size: 2 AWG to 300 kcmil
