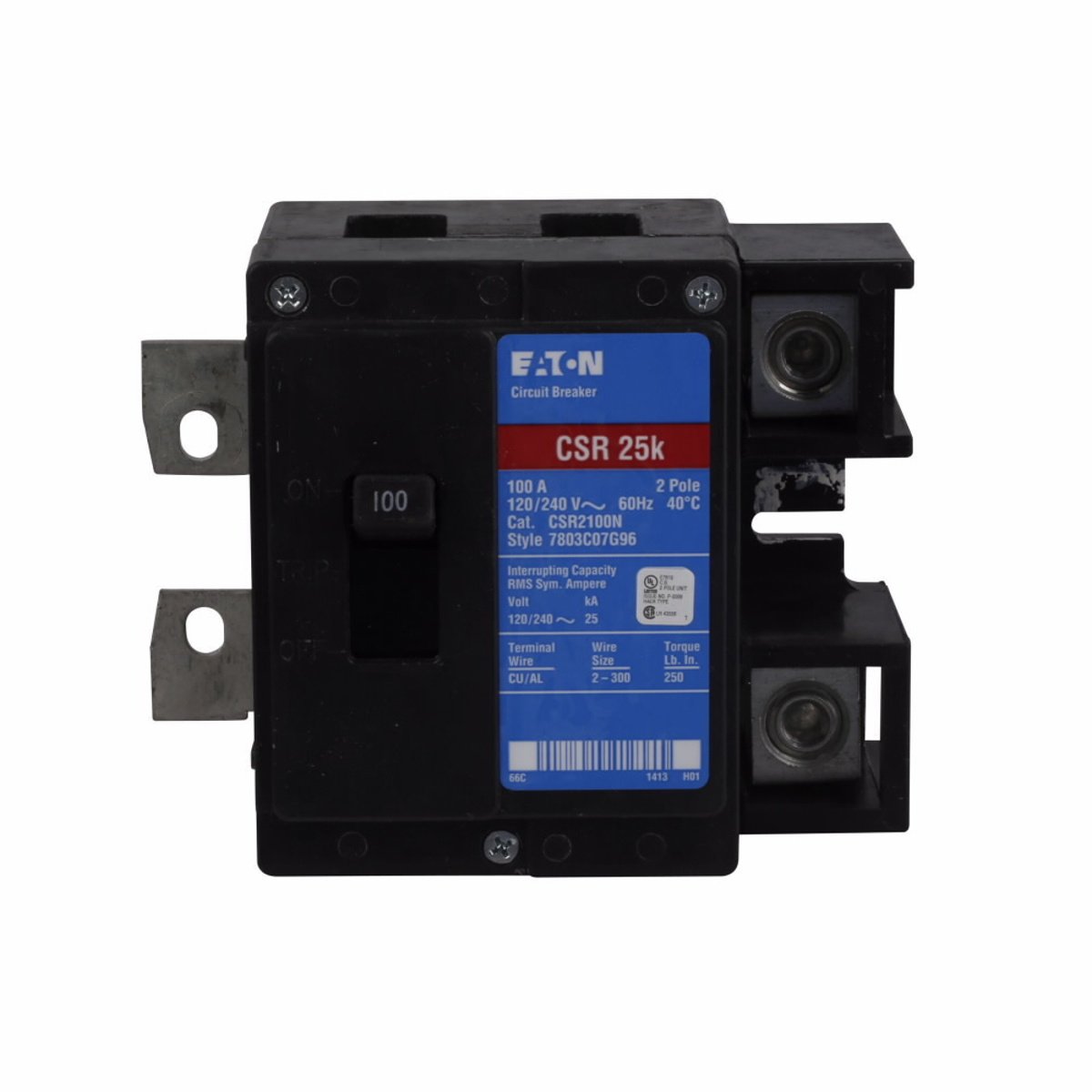

Eaton CSR2100 Type CSR Standard Molded Case Circuit Breaker 100A 120/240V 25kA

Product Description

The Eaton CSR2100 is a two-pole circuit breaker with a capacity of one hundred amperes, designed for use in standard load centers. This breaker operates at a voltage of one hundred twenty to two hundred forty volts with an interrupt rating of twenty-five kiloamperes. The CSR series is suitable for both residential and commercial installations.

• Type CSR Standard circuit breaker
• Rated for 100 amps and 120/240 volts
• Compatible with various wire sizes up to 300 kcmil

Product Highlights

This circuit breaker is essential for main service entrance applications and can be used in multiple setups, including residential, commercial, and industrial settings.

Product Information

Standard Information

• Catalog Number: CSR2100
• Brand: Eaton
• Country of Origin: Dominican Republic

Technical Specifications

• Amperage: 100 Amp
• Voltage Rating: 120/240 Volt
• Interrupt Rating: 25 kAIC
• Wire Size: 2 AWG to 300 kcmil
• Dimensions: 5 inches (L) x 4 inches (W) x 4 inches (H)
• Number of Poles: 2
• Mounting Type: Plug-In
• Standards: UL 489
