Eaton CS8364 Armored Locking Connector 50A 250V 3-Pole 4-Wire

Product Description

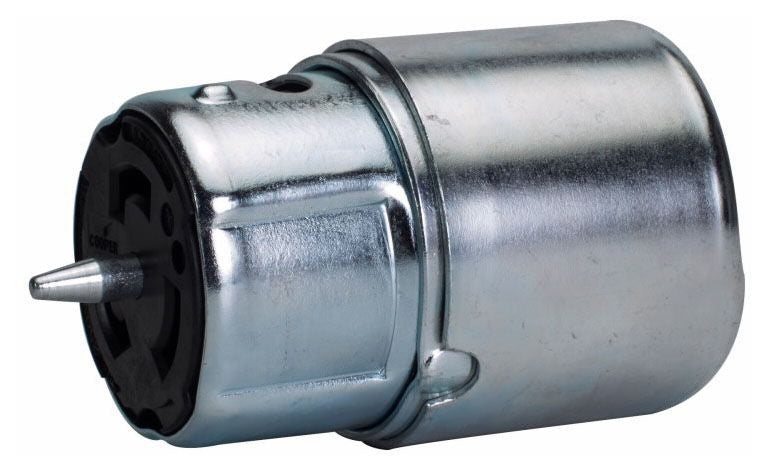

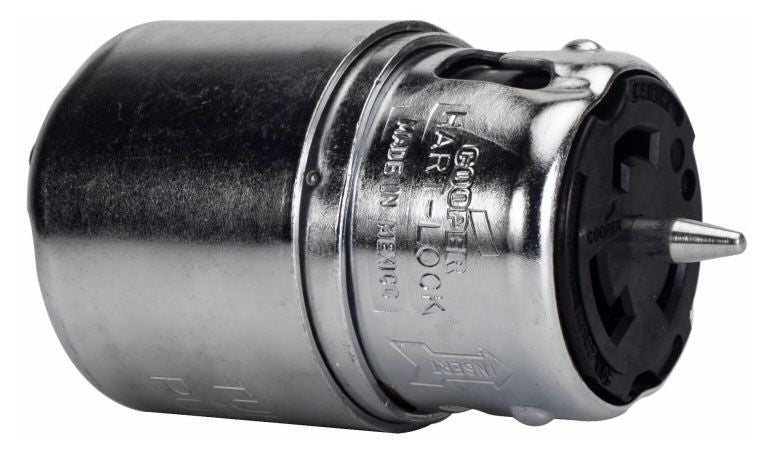

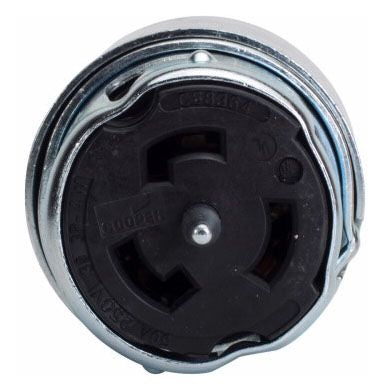

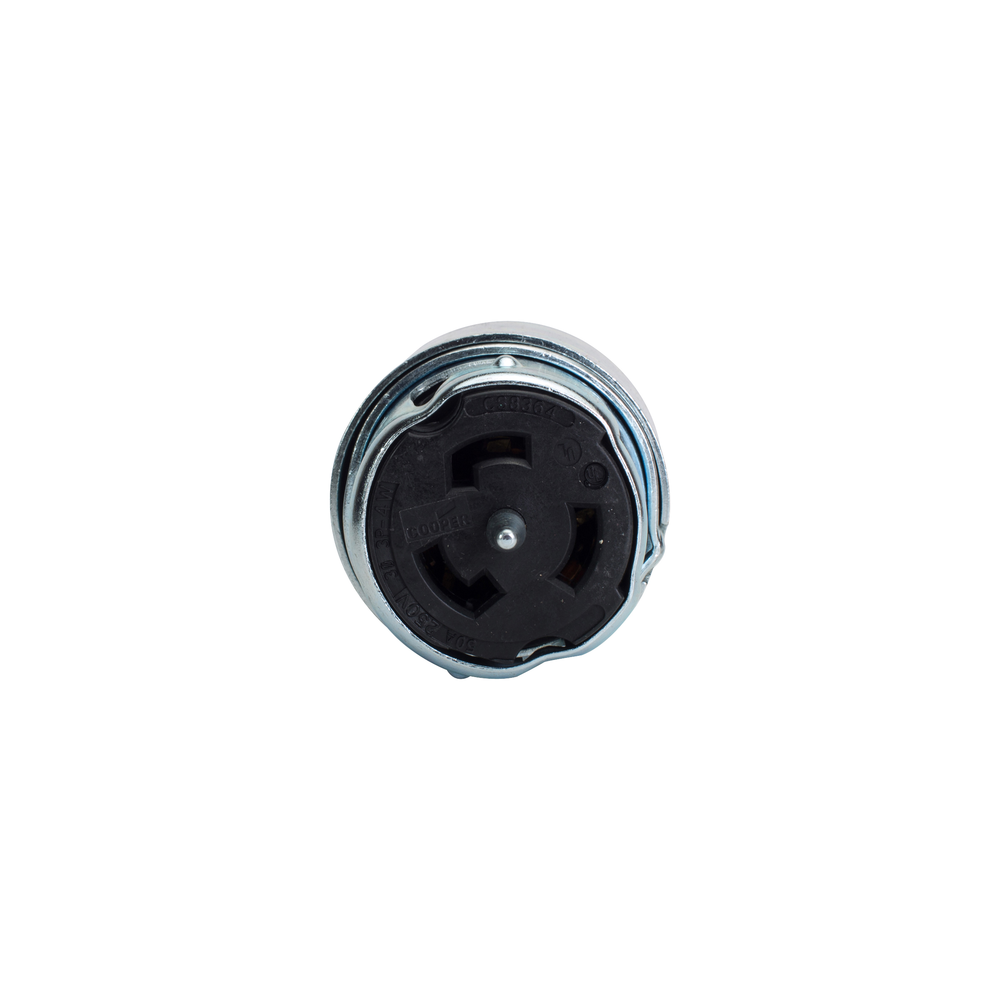

The EATON CS8364 is a locking device connector designed for industrial applications. This armored, polarized, California Style connector features a non-NEMA locking configuration, a 250 VAC 3-Phase voltage rating, and a 50 Ampere current rating. It is constructed with a glass-filled nylon interior and a zinc-plated cold-rolled steel exterior, accommodating 3 poles and 4 wires with a grounding type. It supports wire sizes from 10 to 6 AWG.

• Armored design with glass-filled nylon interior and zinc-plated cold-rolled steel exterior.
• Features a 50 Ampere, 250 VAC 3-Phase rating with 3 poles and 4 wires.
• Non-NEMA locking configuration with back wiring and California standard compliance.

Product Highlights

Armored locking connector with pro-grip lock for industrial 3-phase applications.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: CS8364
• Country of Origin: Mexico

Technical Specifications

• Type: Armored, Polarized, California Style
• Configuration: Non-NEMA Locking
• Voltage Rating: 250 VAC 3-Phase
• Current Rating: 50 Ampere
• Number of Poles: 3
• Number of Wires: 4
• Ground Type: Grounding
• Material: Glass-Filled Nylon Interior, Zinc Plated Cold-Rolled Steel Exterior
• Color: Steel
• Cord Size: 0.68 to 1.13 Inch
• Approval: UL (Canada and US), UL 498
• Flammability Rating: UL 94 V-0
• Wiring Type: Back
• Temperature Rating: -40 to 95 Deg C
• Application: Industrial
• Wire Size: 10 to 6 AWG
• ROHS Compliant: Yes
• NAFTA Compliant: Yes
• Certifications: cULus Listed, CSA certified
• Contact Material: Zinc plated brass
• Device Grade: Extra heavy duty
• Torque Rating: 25 lbf-inch
• Terminal Type: Screw
• Phase: 3
• Body Type: Straight
• Connection Type: Connector
• Watertight: No
• Isolated Ground: No
