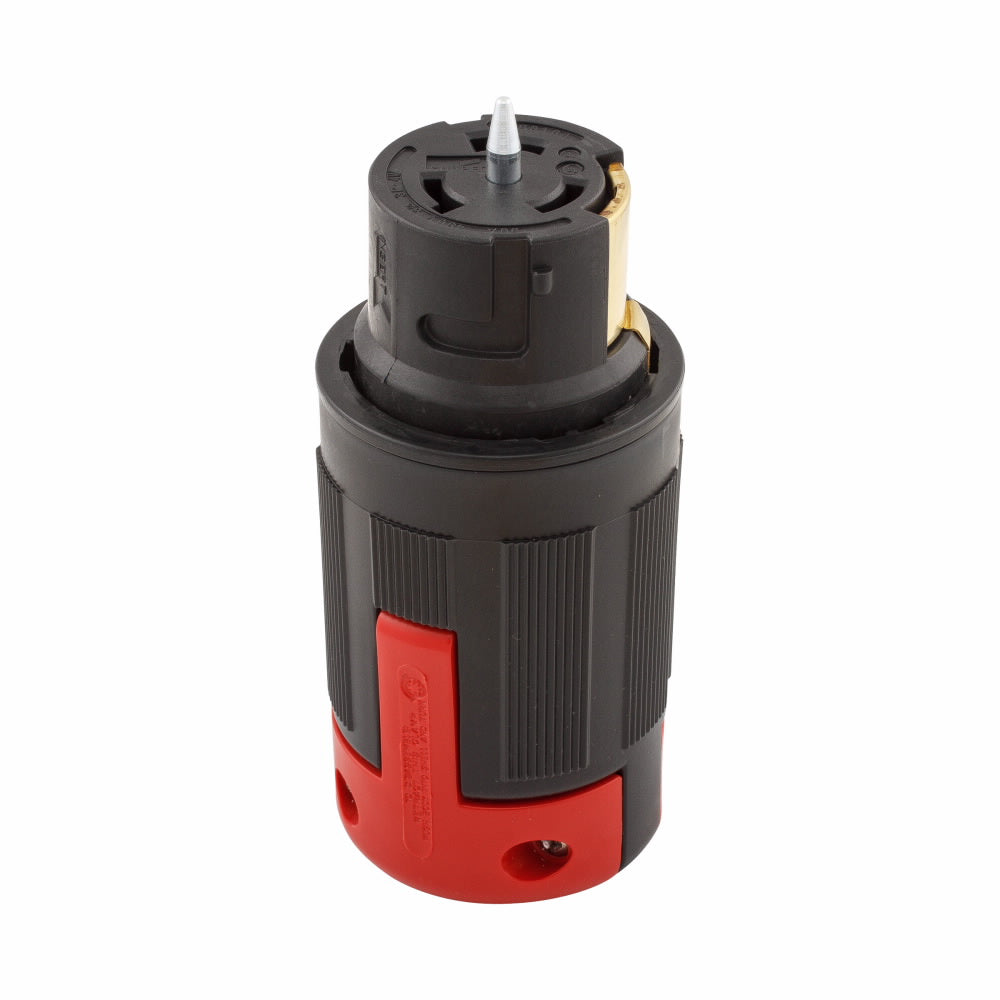

Eaton CS8164EX 3-Phase California Standard Grounding Pro-Grip Locking Connector 480 Vac 50 A (3 Poles 4 Wires)

Product Description

Eaton CS8164EX is a 3-phase California standard grounding Pro-Grip locking connector rated 480 Vac and 50 A with three poles and four wires. It features a high-impact glass-filled nylon internal body and nylon housing, screw terminals, and nickel-plated contacts. The connector accepts 0.44 to 1.06 in cord diameters and 10 to 6 AWG conductors, is rated for -40 to 105 °C, and measures 2.31 in diameter by 4.5 in length.

• Industrial-grade glass-filled nylon internal body and nylon housing with nickel-plated contacts and terminal screws
• Electrical ratings: 480 Vac, 50 A, 2000 Vac dielectric strength; screw terminal and accepts 10 to 6 AWG
• Cord compatibility: accepts 0.44 to 1.06 in diameter cord; temperature rating -40 to 105 °C; dimensions 2.31 in dia x 4.5 in L

Product Highlights

Industrial Pro-Grip locking connector, 480 Vac 50 A, 3 poles 4 wires, accepts 0.44–1.06 in cord and 10–6 AWG, -40 to 105 °C, CSA/UL/NOM certifications

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: CS8164EX

Technical Specifications

• Manufacturer Part Number: CS8164EX
• Brand: Eaton
• Type / Configuration: 3-Phase California Standard Grounding Pro-Grip
• Voltage Rating: 480 Vac
• Amperage Rating: 50 A
• Number of Poles: 3
• Number of Wires: 4
• Cord Diameter: 0.44 to 1.06 in
• Accepts Wire Size: 10 to 6 AWG
• Material: Glass-filled nylon internal body; nylon housing
• Terminal Type: Screw
• Dielectric Strength: 2000 Vac
• Temperature Rating: -40 to 105 °C
• Dimensions: 2.31 in diameter x 4.5 in length
• Grade: Industrial
• Standards/Approvals: CSA C22.2 File No. 42; cULus Listed; NOM Certified; UL 498; UL File No. E3663; UL 94 V-0 Flammability Rated
• Application: For locking device applications
