EATON CS6364EX CWD CONN 50A 125/250V 3P4W

Product Description

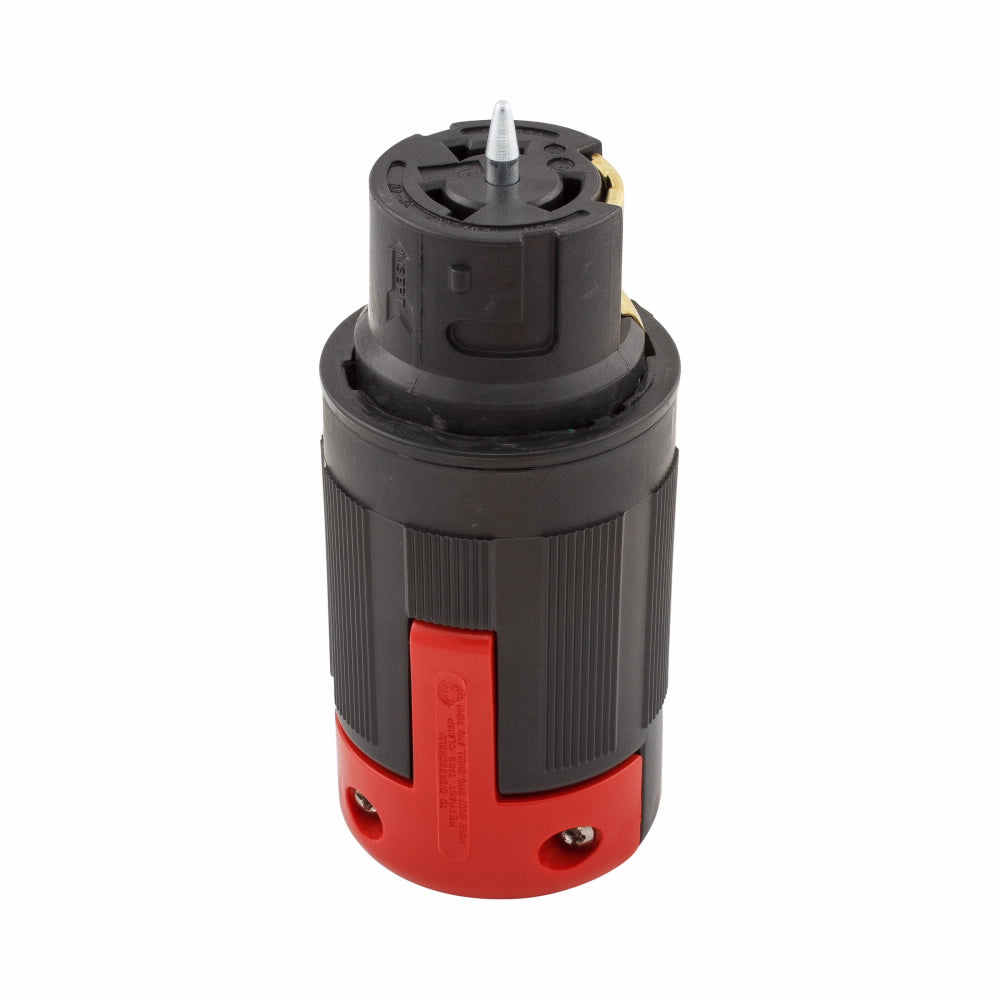

Eaton CS6364EX is a locking connector designed for industrial applications. This device supports a voltage rating of 125/250 VAC and an amperage rating of 50 A. It is built to meet California standard grounding requirements with three poles and four wires. The body is made from nylon, and the color scheme is black and red.

• Suitable for cords with a diameter ranging from 0.44 to 1.06 inches
• Operates within a temperature range of minus forty to ninety-five degrees Celsius
• Meets UL 498 and CSA standards for safety

Product Highlights

This connector is ideal for use in temporary power generators and heavy equipment applications.

Product Information

Standard Information

• MPN: CS6364EX
• Manufacturer: Eaton

Technical Specifications

• Amperage Rating: 50 A
• Voltage Rating: 125/250 VAC
• Number of Poles: 3
• Number of Wires: 4
• Color: Black/Red
• Material: Nylon
• Temperature Rating: -40 to 95 deg C
• Cord Diameter: 0.44 to 1.06 in
• Grade: Industrial
• Terminal Type: Screw
