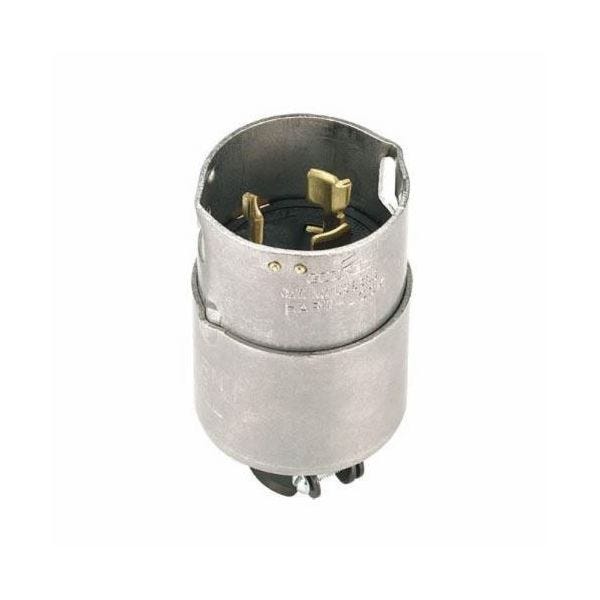

EATON CS6364 Arrow Hart Armored California Standard Locking Connector 50A

Product Description

The EATON CS6364 Arrow Hart armored California standard locking connector is designed for industrial use. Rated at fifty amps and capable of handling 125/250 volts, this three-pole, four-wire connector ensures secure connections. It features back wiring and accommodates wire sizes from #10 to #6 AWG. The durable armored design and stainless steel components make it suitable for harsh environments.

• Armored design for enhanced durability
• Designed for industrial application
• Temperature range from -40 to 90 degrees Celsius

Product Highlights

This connector is made for extra heavy-duty use and is CSA certified, ensuring safety and reliability in demanding applications.

Product Information

Standard Information

• Brand: EATON
• MPN: CS6364

Technical Specifications

• UPC: 040893676654
• Length: 5.73 inches
• Height: 2.68 inches
• Width: 3.1 inches
• Amperage Rating: 50 A
• Voltage Rating: 125/250 V
• Wire Size: #10-6 AWG
• Material: Stainless steel
• Connector Type: Locking
• Operating Temperature: -40 to 90 degrees Celsius
• Torque Rating: 25 lbf-inch
• Face/Body Material: Glass filled nylon
• NEMA Configuration: Non-NEMA
