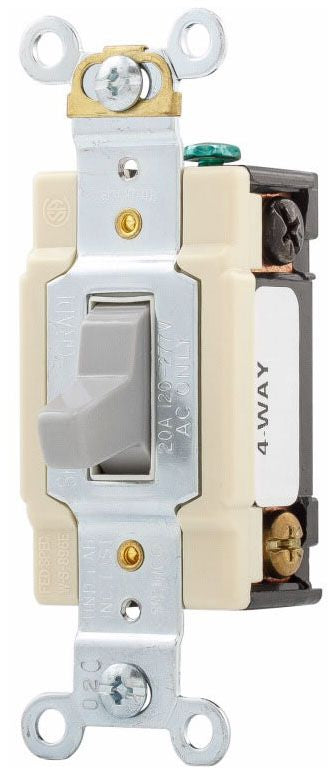

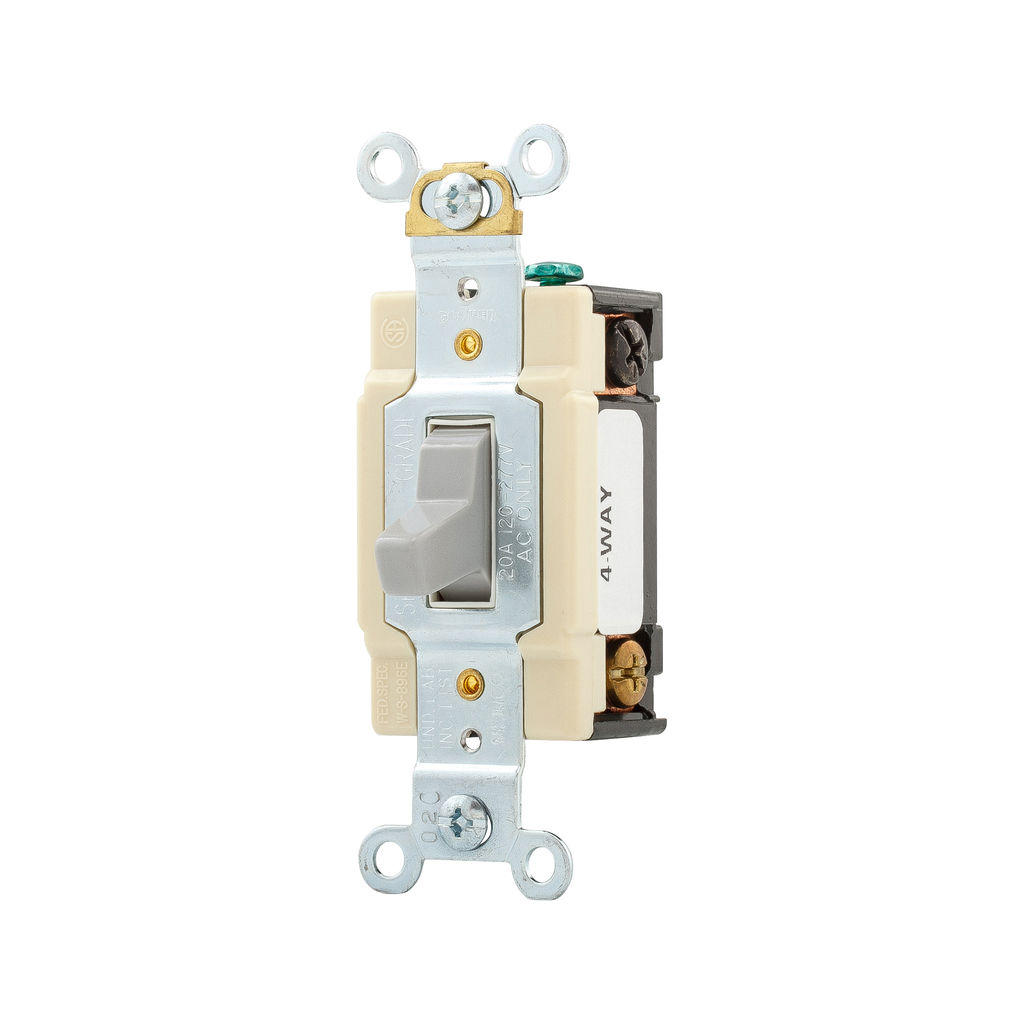

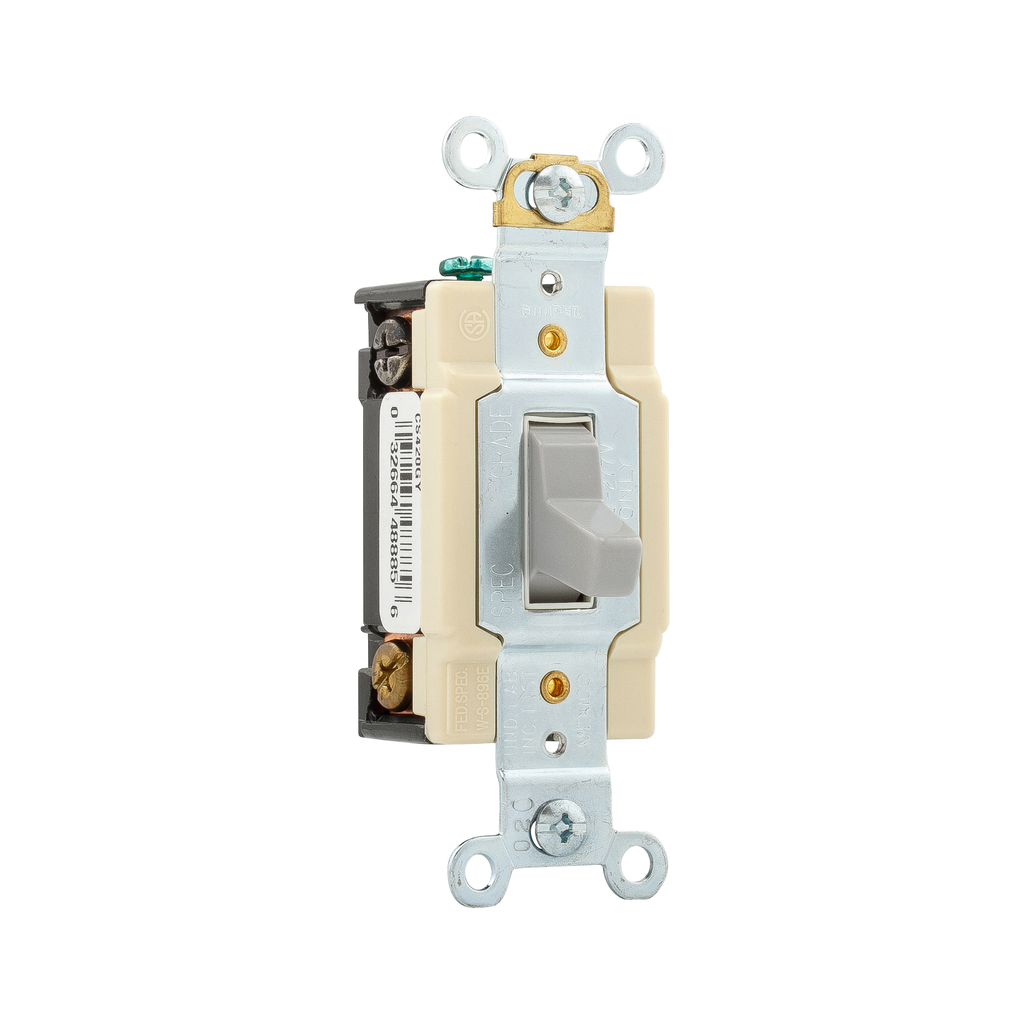

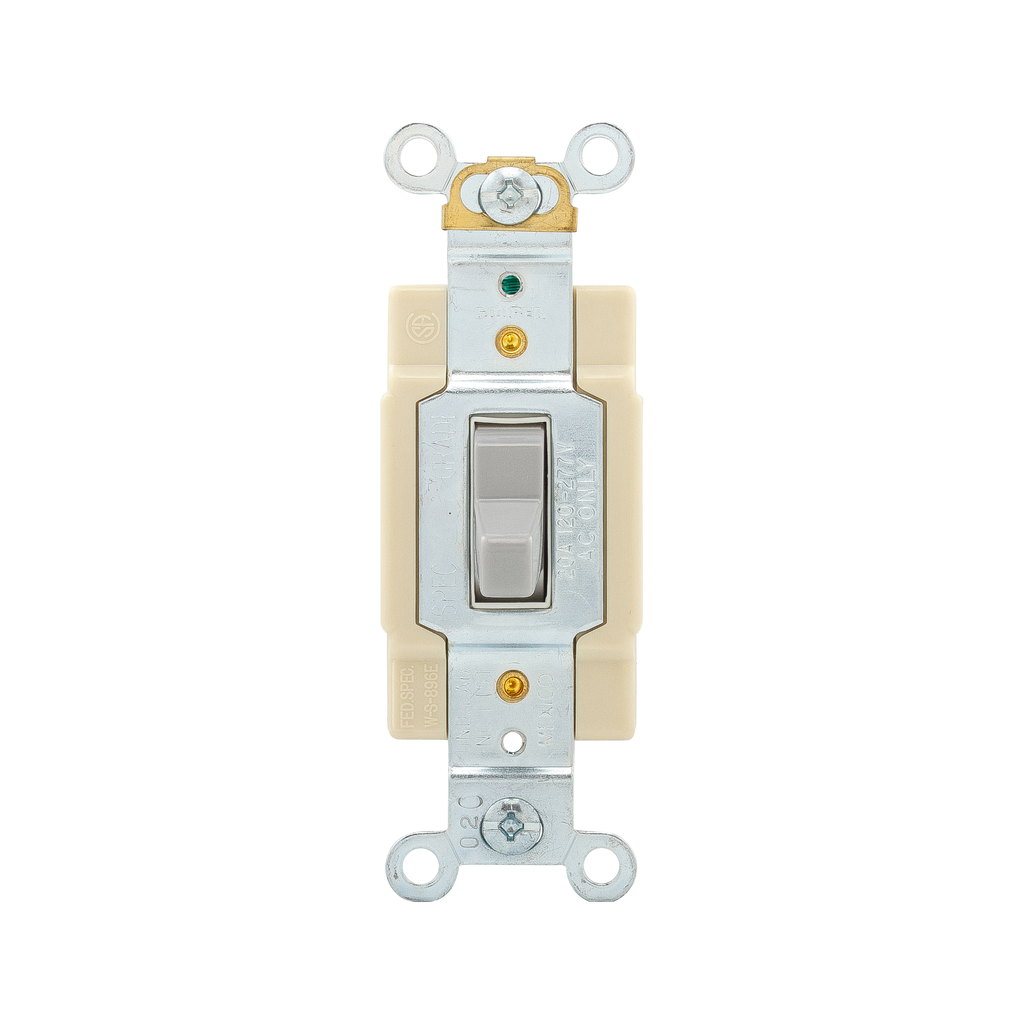

Eaton CS420GY-BU Toggle Switch 4-Way 20 Amp

Product Description

The EATON CS420GY-BU is a commercial grade toggle switch designed for various applications. This 4-way switch has a current rating of 20 Amp and a voltage rating of 120/277 Volt AC. Constructed with a PVC housing and copper alloy terminal enclosure, it ensures durability and reliable performance in commercial settings.

• Four-way toggle switch
• Current Rating: 20 Amp
• Voltage Rating: 120/277 Volt AC

Product Highlights

Ideal for commercial applications, this EATON toggle switch offers a robust and reliable solution for controlling electrical circuits.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: CS420GY-BU

Technical Specifications

• Type: Toggle switch
• Current Rating: 20 Amp
• Voltage Rating: 120/277 V
• Power Rating: 1 HP at 120 Volt AC, 2 HP at 277 Volt AC
• Operation Type: 4-Way
• Material: PVC
• Wiring: Side
• Application: Commercial
• Approval: UL (Canada and US), UL, UL 94, CSA C22.2, NOM 426
• RoHS Compliant: True
• Connection Type: Screw
• Mounting Type: Wall
• Wire Size: #14-10 AWG
• Dielectric Strength: 1500 Volt
• Temperature Rating: -20 to 60 Deg C
• Torque Rating: 14 lbf-inch
• Applicable Standard: Federal Specification 6241-05/WC-896G
• Product Name: Eaton commercial grade toggle switch
• Catalog Number: CS420GY-BU
• Product Length/Depth: 1.3 in
• Product Height: 4.19 in
• Product Width: 1.1 in
• Certifications: UL NOM Federal Specification Classification 6241 05
• Product Type: Commercial grade toggle switch
• Number of poles: Single-pole
• Wiring method: Side wire
• Switch type: Four-way
• Connector type: Screw
• Number of ways: Four-way
• Allowable wire size: #14-10 AWG
• Terminal enclosure material: Copper alloy
• Terminals: 0.031 in
• Brand: Eaton
• Sub Brand: Eaton Wiring Devices
• Actuator: Compact Toggle
• Amperage: 20 Amp
• Contact Configuration: Switches
• Operating Temperature: -40 to 65 DegC
• TC Connection: Screw
