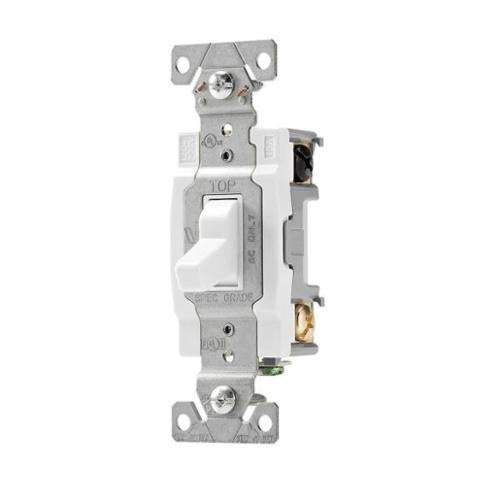

EATON Eaton CS320W Commercial Grade 3-Way Compact Toggle Switch 20-Amp 120/277-volt
EATON Eaton CS320W Commercial Grade 3-Way Compact Toggle Switch 20-Amp 120/277-volt

Eaton CS320W Commercial Grade 3-Way Compact Toggle Switch 20-Amp 120/277-volt

EATON
Brand: EATON
SKU: CS320W
Availability: In Stock

Ships same day if ordered by 12 pm
$33.79
$33.79
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

The Eaton CS320W is a 20-Amp 120/277-volt commercial grade 3-way compact toggle switch with side wiring. Designed for commercial applications, it features a heavy-duty cam action mechanism for quiet operation. Side wire terminals accept up to 10 AWG solid or stranded wire. This switch meets CSA, UL, and CUL standards.

  • Commercial Grade
  • 3-Way
  • Compact Toggle Switch

Product Highlights

Commercial grade 3-way compact toggle switch with side wiring for reliable performance in commercial applications.

Product Information

Standard Information

  • Brand: EATON
  • Manufacturer Part Number: CS320W
  • Country of Origin: China
Technical Specifications
Color
White
Voltage
120 Volts
Material
Metal
Switch Type
3-way
Switch Style
Toggle
Mounting Type
Wall Mount
Connector Type
Screw
Current Rating
20 Amps
Operation Mode
ON-OFF
Specification Met
CSA, UL, CUL
AC Adapter Current
20 Amps
Batteries Included?
No
Batteries Required?
No
Actuator
Compact Toggle
Environmental Conditions
-40 to 65 deg C Operating Temperature
Number of Poles
1
Operating Cycles
50000 Cycles
Series
CS Series
Terminal Type
Side Wire/Screw
Voltage Rating
120/277 V
Power Rating
1/2 hp
Amperage Rating
20A
Wiring method
Side wire
Number of ways
Three-way
Allowable wire size
#14-10 AWG
Terminal enclosure material
Copper alloy
Terminals
0.031 in
Actuator Type
Cam
Contact Material
Silver
Dielectric Strength
1500 V
Housing Material
Nylon
Number Of Positions
3
Temperature Rating
-20 to 60 deg C
Wattage Rating
1 to 2 hp
Product Type
Commercial grade toggle switch
