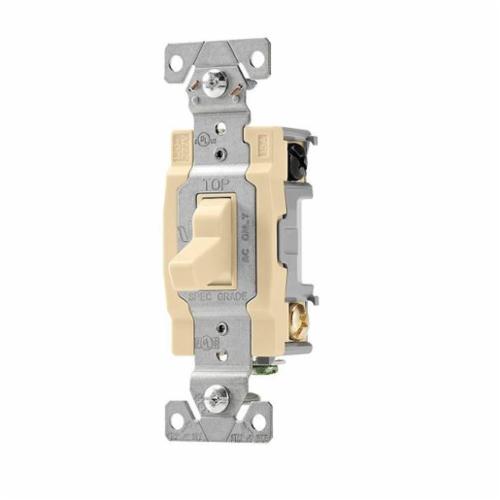

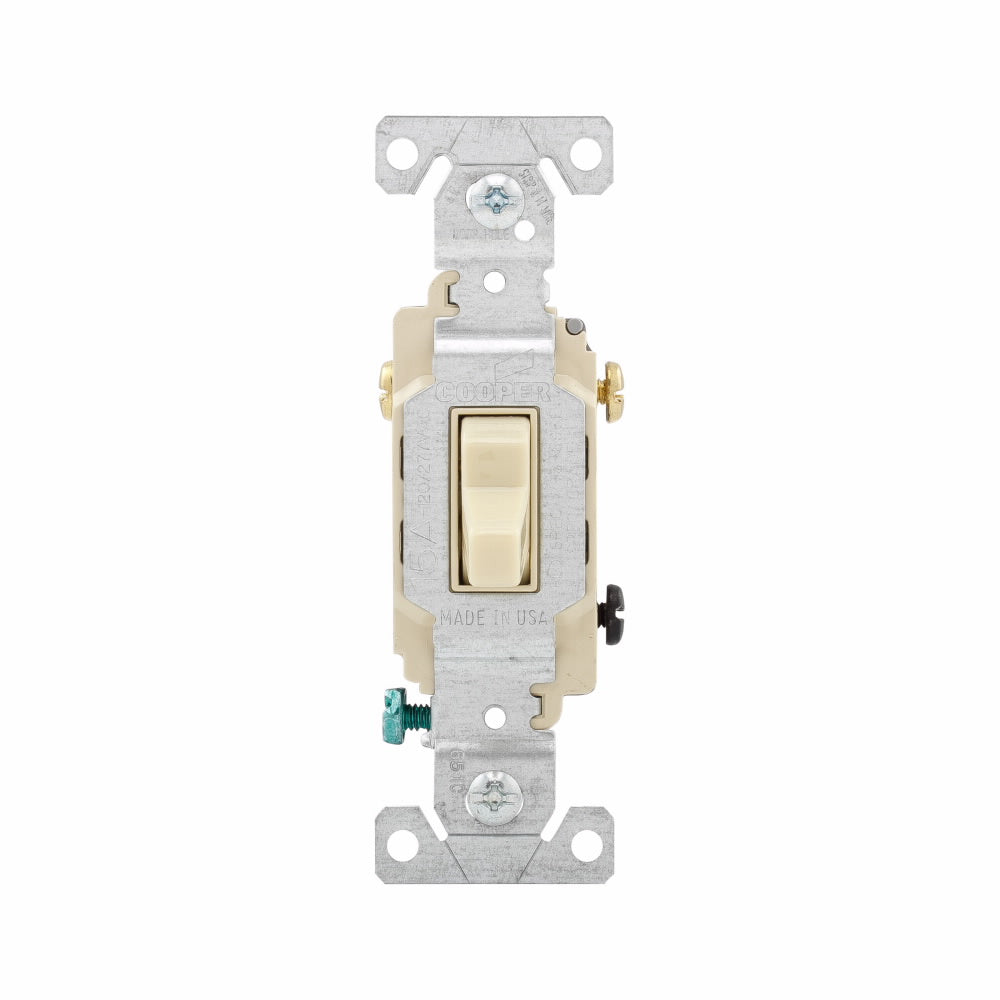

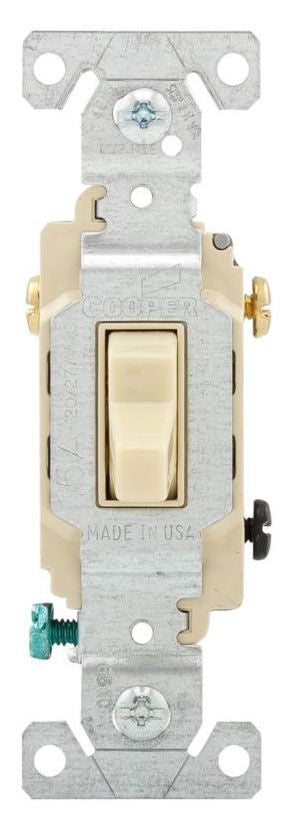

Eaton CS315V COMM Spec AC Quiet Switch 15 AMP 120/277V

Product Description

Eaton CS315V is a commercial grade AC quiet switch designed for reliable performance in various applications. This switch offers a three-way operation with a power rating of 15 amps and supports voltages of 120/277V. It is ideal for fluorescent lighting fixtures commonly found in commercial settings.

• User-friendly installation with side wire connections.
• Automatic grounding system simplifies wiring in grounded enclosures.
• Durable construction guarantees long-lasting operation.

Product Highlights

Built for commercial use, the Eaton CS315V switch features an easy-access grounding terminal and oversized termination screws, ensuring secure wiring connections.

Product Information

Standard Information

• Application: Commercial
• Approval: UL (Canada and US), NOM 426

Technical Specifications

• Power Rating: 1/2 HP at 120 VAC, 2 HP at 277 VAC
• Type: Toggle
• Dimensions: 1.3 inches x 0.9 inches x 4.2 inches
• Material: Nylon Toggle
• Operating Cycles: 50,000
• Environmental Conditions: -40 to 65 degrees Celsius
