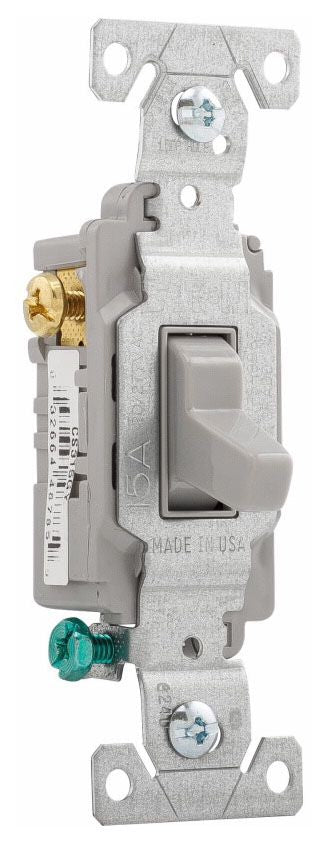

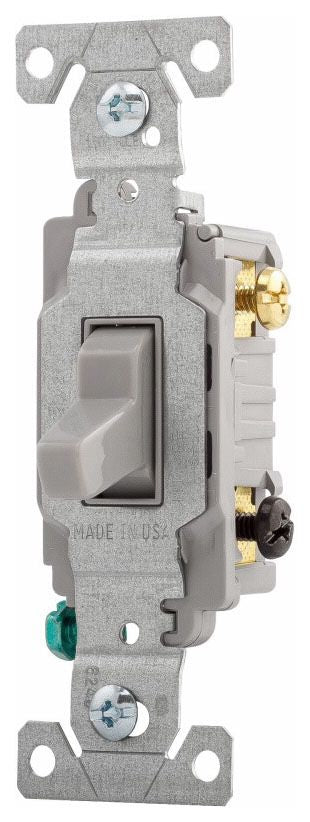

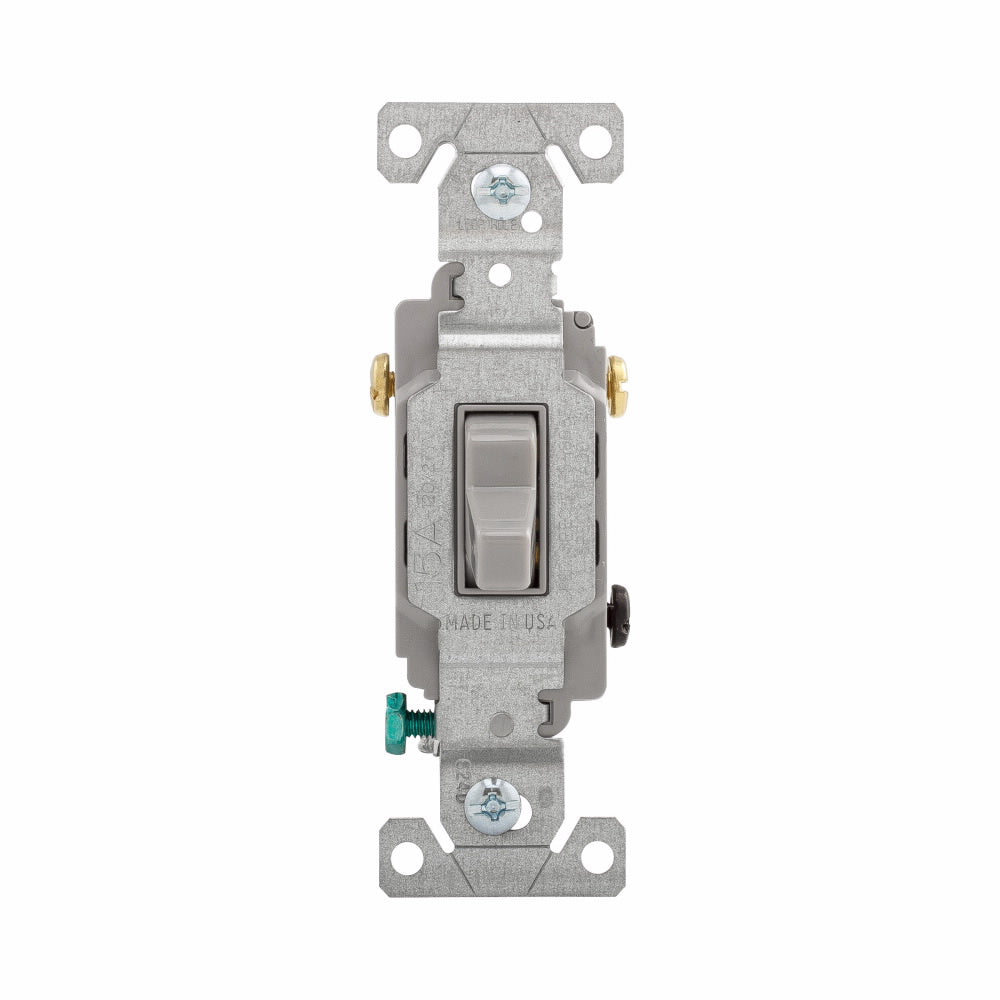

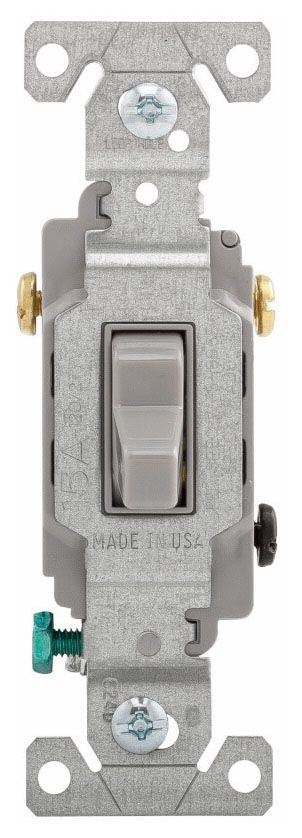

Eaton CS315GY Commercial Grade 3-Way Compact Toggle Switch 15-Amp

Product Description

The Eaton CS315GY Commercial Grade 3-Way Compact Toggle Switch is engineered for reliable performance and ideal for use with fluorescent lighting fixtures. Rated for 15-amps and 120/277-volts, this switch features a heavy-duty cam action mechanism for quiet operation. Side wire terminals accept up to no. 10 solid or stranded wire and has color-coded strap markings to identify amperage.

• Rated for 15-amps and 120/277-volts, for switching one light from two locations
• Heavy-duty cam action mechanism insures quiet switch action
• Ground screw terminal standard

Product Highlights

This Eaton toggle switch is ideal for commercial applications

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: CS315GY
• Country of Origin: USA

Technical Specifications

• Amperage: 15-amps
• Voltage: 120/277-volts
• Switch Type: 3-Way
• Wiring: Side Wiring
• Application: Commercial
• Actuator: Compact Toggle
• Amperage Rating: 15 A
• Contact Rating: 15 A at 120/277 VAC
• Environmental Conditions: -40 to 65 deg C
• Manufacturer Part Number: CS315GY
• Material: PVC
• Mounting: Wall
• Number of Poles: 1
• Operating Cycles: 50000 Cycles
• Power Rating: 1/2 hp, 2 hp
• Series: CS Series
• Standards/Approvals: CSA C22.2 No. 111/10016/6241-05|cULus Listed|Federal Specification W-C-896G|UL 20 File No. E18704|UL 94 V-0 Flammability Rated
• Terminal Type: Side Wire/Screw
• Type: 3-Way Heavy Duty Specification Grade
• Allowable wire size: #14-10 AWG
• Terminal enclosure material: Copper alloy
• Product Length/Depth: 1.3 in
• Product Height: 4.2 in
• Product Width: 0.902 in
• Certifications: cULus Listed
