Product Description

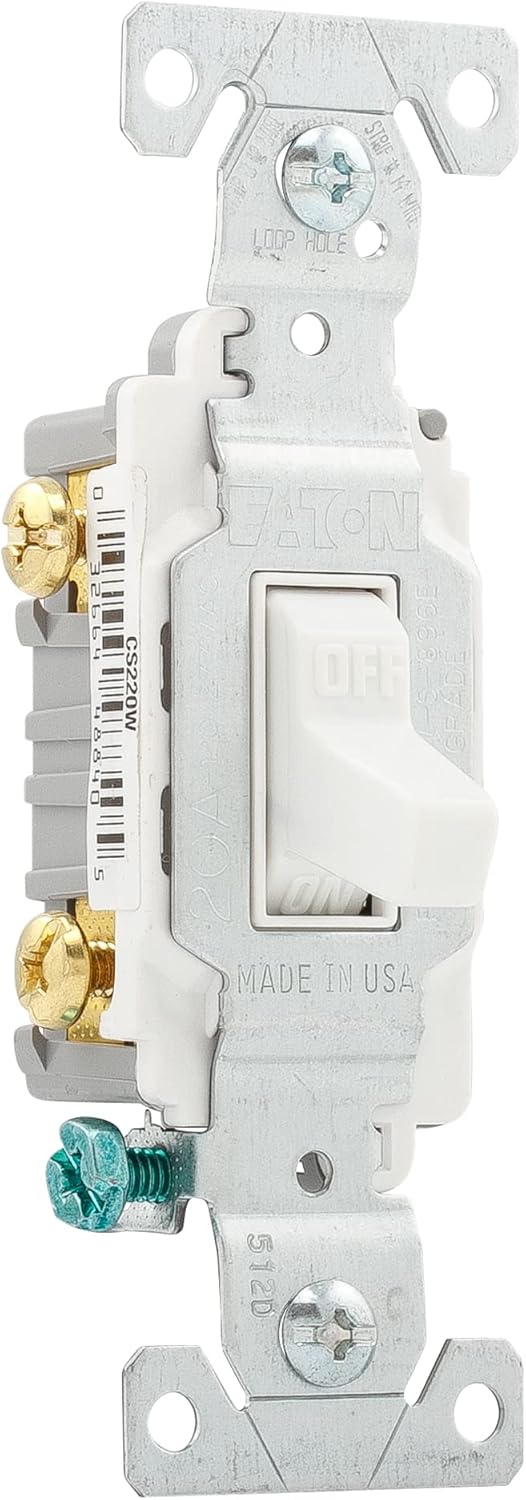

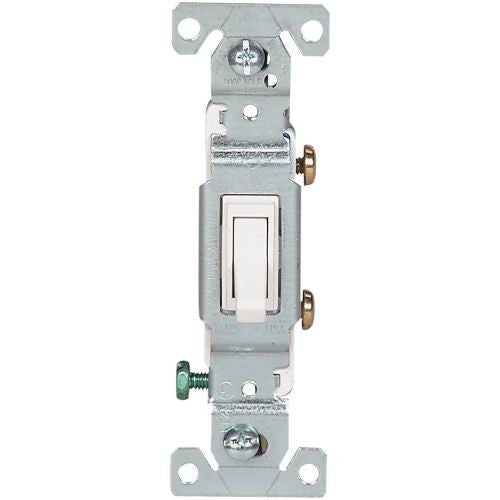

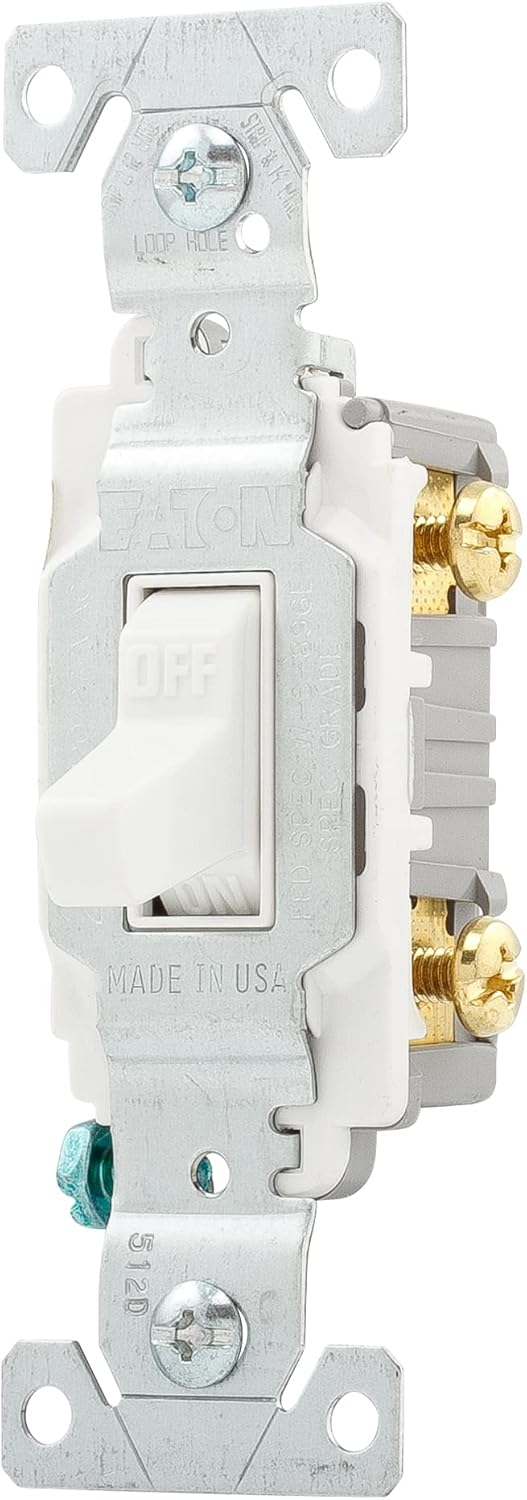

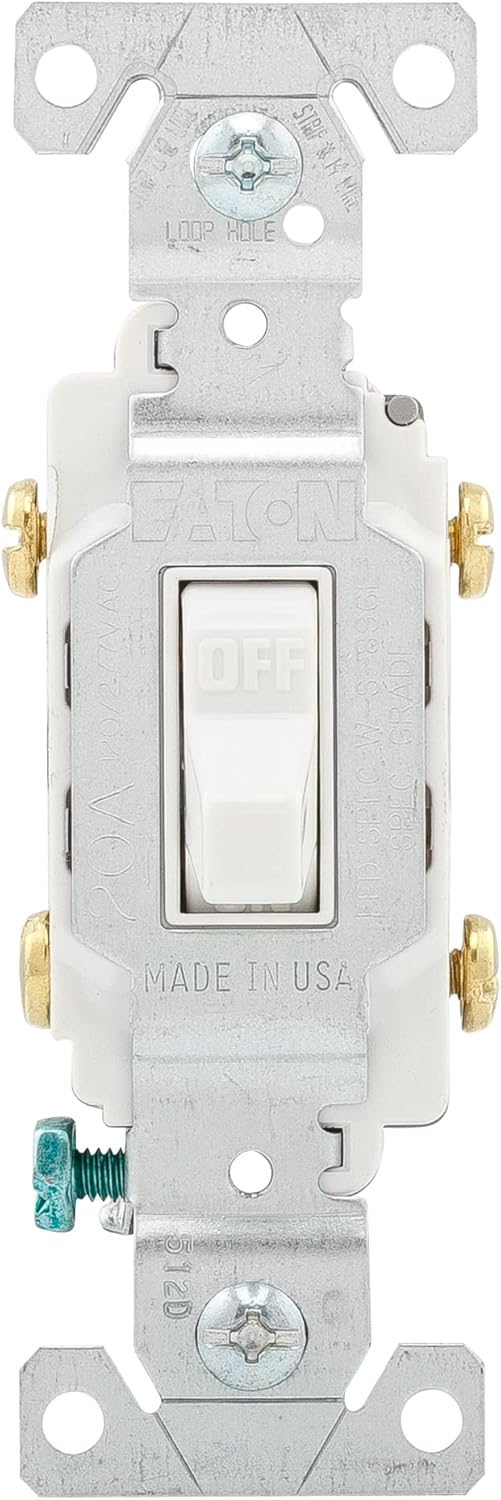

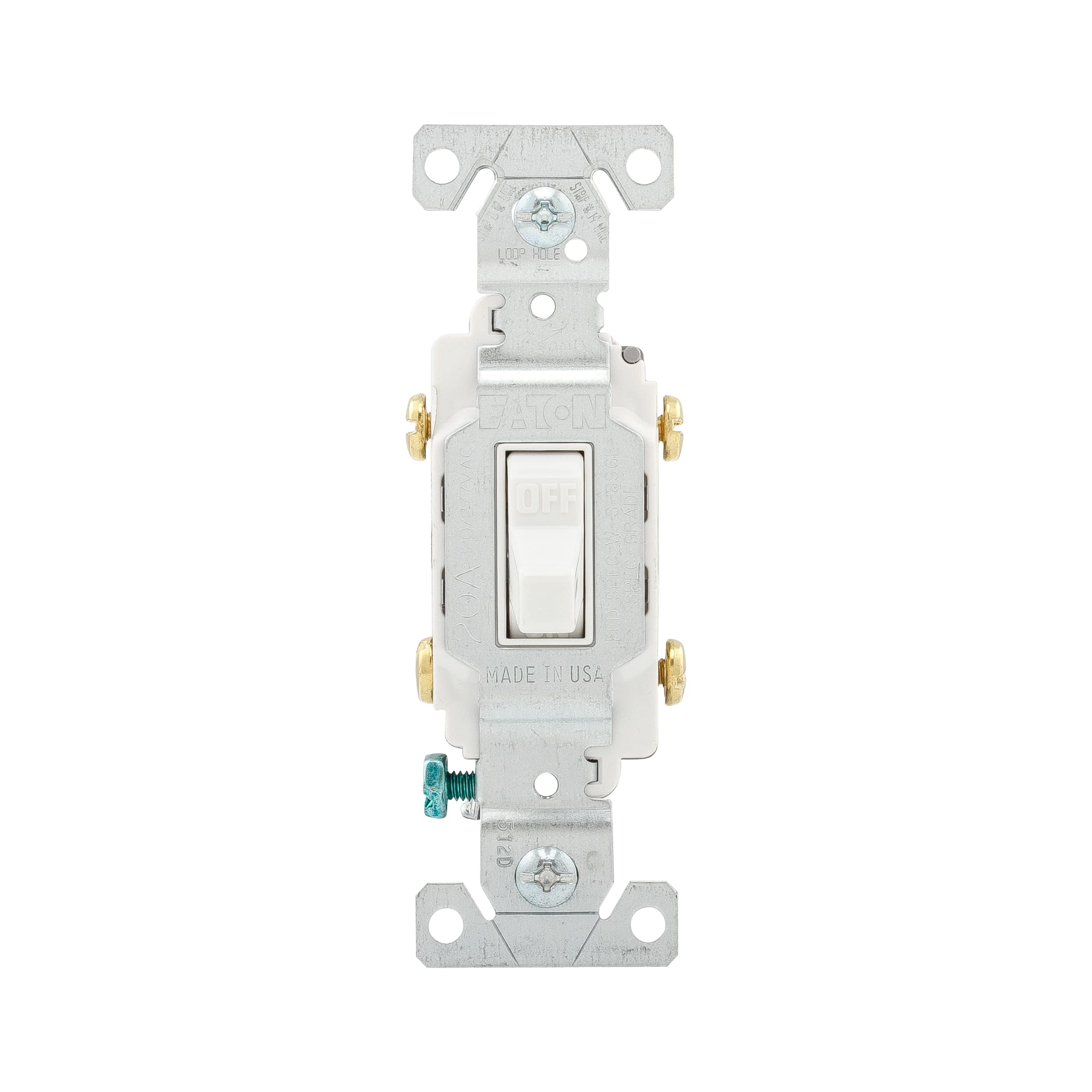

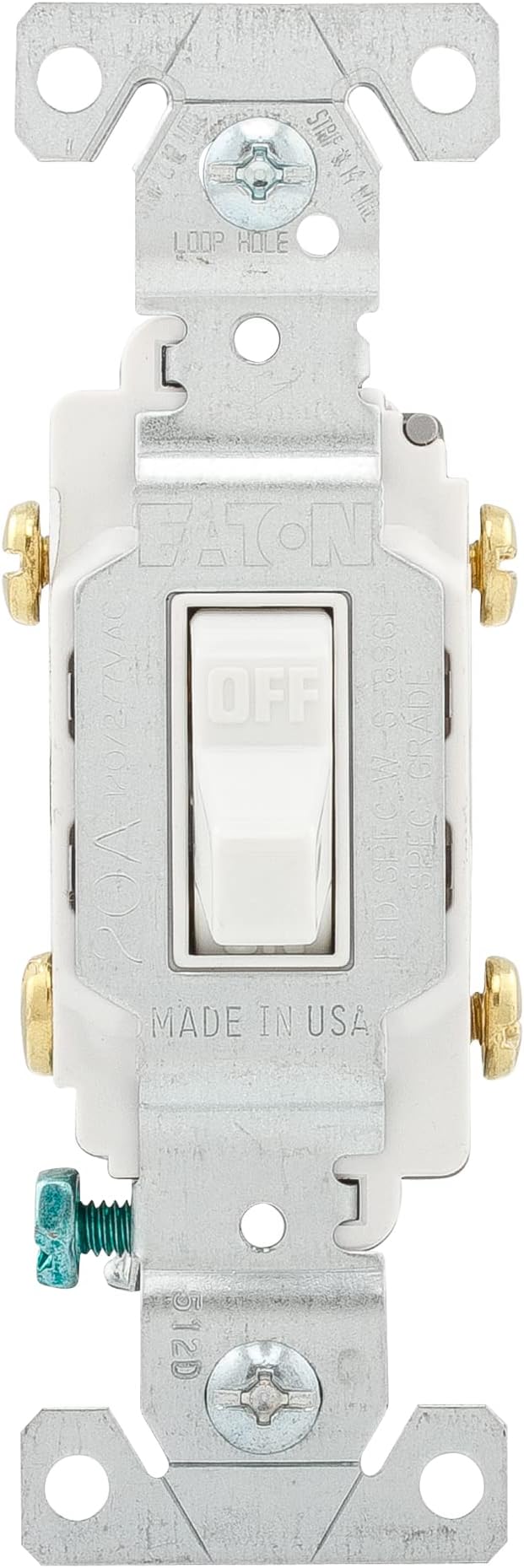

The EATON CS220W Arrow Hart Eagle Cs Toggle Switch operates at 120/277 Vac with a 20 A current rating and 2 poles. This commercial grade AC quiet switch features side wire terminals that accept up to #10 solid or stranded wire. It is ideal for fluorescent lighting fixtures typical in commercial applications.
- Heavy duty cam action mechanism ensures quiet switch action.
- Terminals accept up to 10 AWG solid or stranded wire.
- 120/277 VAC rating ideal for fluorescent lighting fixtures.
Product Highlights
This EATON toggle switch is suitable for commercial or residential applications. It ensures energy efficiency, increases productivity, and promotes safety.
Product Information
Standard Information
-
Brand: EATON
-
Manufacturer Part Number: CS220W
-
Country of Origin: United States
Technical Specifications
-
Color: White
-
Voltage: 120 Volts
-
Material: Metal
-
Switch Type: Double Pole
-
Switch Style: Toggle
-
Mounting Type: Wall Mount
-
Connector Type: Quick Connect
-
Current Rating: 20 Amps
-
Operation Mode: ON-OFF
-
Specification Met: UL
-
AC Adapter Current: 20 Amps
-
Included Components: Electrical & Heating;Dimmers & Lighting Controls;wall-light-switches
-
Insulation Resistance: 20 Megaohms
-
Actuator: Compact Toggle
-
Contact Rating: 20 A at 120/277 VAC
-
Environmental Conditions: -40 to 65 deg C Operating Temperature
-
Series: CS Series
-
Terminal Type: Side Wire/Screw
-
Voltage Rating: 120/277 V
-
Amperage Rating: 20 A
-
Power Rating: 1/2 hp
-
Number of Poles: 2
-
Wiring: Side
-
Application: Commercial
-
Approval: UL (Canada and US), UL 20/94, NOM 426, FS 6241 05
-
RoHS/NAFTA Compliant: RoHS/NAFTA Compliant
-
Wire Size: 14 to 10 AWG
-
Temperature Rating: -20 to 60 Deg C
-
Load Type: Motor Control, Fan, LED, Incandescent, ELV, MLV, CFL, Fluorescent, Halogen
-
Poles: 2
-
Overall Length: 3.28 in
-
Overall Width: 1.13 in
-
Overall Depth: 0.87 in
-
Motor: 1 hp
-
Standard & Approvals: CSA Certified to C22.2 No. 111 File No. 10016 (6241-05), cULus Listed to UL 20 File No. E18704, RoHS Compliant, UL Verified to Federal Specification WC-896G
-
Maximum Amperage: 20 Amp
-
Maximum Voltage: 120V-277V
-
Grade Type: Commercial
-
Control Style: 2-Pole
-
Control Type: Toggle
-
Certificate: cUL/UL Listed
-
Actuator Type: Cam, Toggle
-
Contact Material: Silver
-
Dielectric Strength: 1500 V
-
Housing Material: Nylon
-
Wattage Rating: 1 to 2 hp
-
Terminal Enclosure Material: Brass
