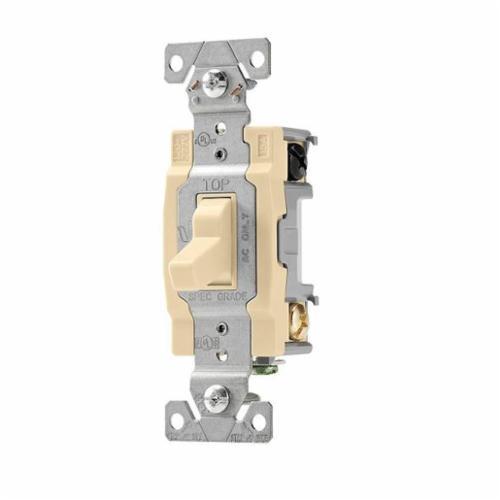

Eaton CS220V Heavy Duty Specification Grade AC Toggle Switch 120/277 V

Product Description

The EATON CS220V is a heavy-duty specification grade AC toggle switch designed for commercial applications. This switch features a cam action mechanism for quiet operation and side wire terminals that accept up to 10 AWG solid or stranded wire. A ground screw terminal is standard. Ideal for fluorescent lighting fixtures.

• Patent pending spring cup toggle design for robust actuation
• Terminals accept up to 10 AWG solid or stranded wire
• 120/277 VAC rating ideal for fluorescent lighting fixtures

Product Highlights

Heavy duty AC quiet switch with side wire terminals and ground screw. Suitable for commercial applications and fluorescent lighting fixtures.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: CS220V
• Country of Origin: USA

Technical Specifications

• Actuator: Compact Toggle
• Color: Ivory
• Contact Rating: 20 A at 120/277 VAC
• Environmental Conditions: -40 to 65 deg C Operating Temperature
• Material: PVC
• Mounting: Wall
• Number of Poles: 2
• Operating Cycles: 50000 Cycles
• Series: CS Series
• Terminal Type: Side Wire/Screw
• Type: Heavy Duty Specification Grade
• Voltage Rating: 120/277 V
• Amperage Rating: 20 A
• Power Rating: 1/2 hp
• Current Rating: 20 Amp
• Operation Type: 2-Pole
• Wiring: Side
• Application: Commercial
• Wire Size: 14 to 10 AWG
• Connector Type: Screw
• Mounting Type: Flush
• Temperature Rating: -20 to 60 Deg C
• Load Type: Motor Control, Fan, LED, Incandescent, ELV, MLV, CFL, Fluorescent, Halogen
• Amperage: 20-Amp
• Switch Type: Double Pole AC Compact Toggle Switch
• Grade: Commercial Specification Grade
• Housing Material: Nylon
• Wattage Rating: 1 to 2 hp
• Product Length/Depth: 1.3 in
• Product Height: 4.2 in
• Product Width: 0.902 in
• Allowable wire size: #14-10 AWG
• Terminal enclosure material: Brass
• AC Adapter Current: 20 Amps
• Operation Mode: ON-OFF
• Circuit Type: Double Pole
• Actuator Type: Cam, Toggle
• Contact Material: Silver
• Dielectric Strength: 1500 V
• Voltage: 120 Volts
