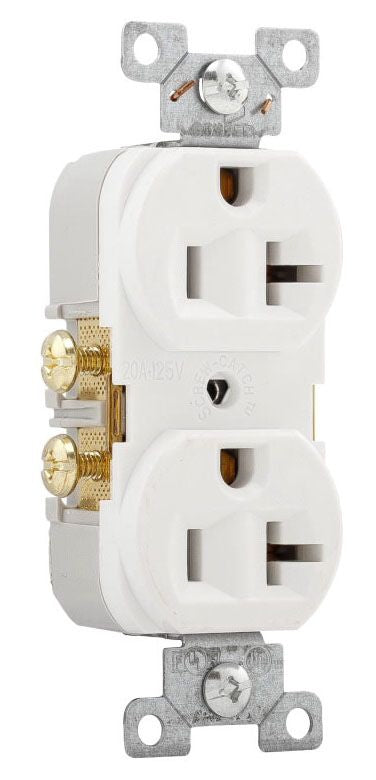

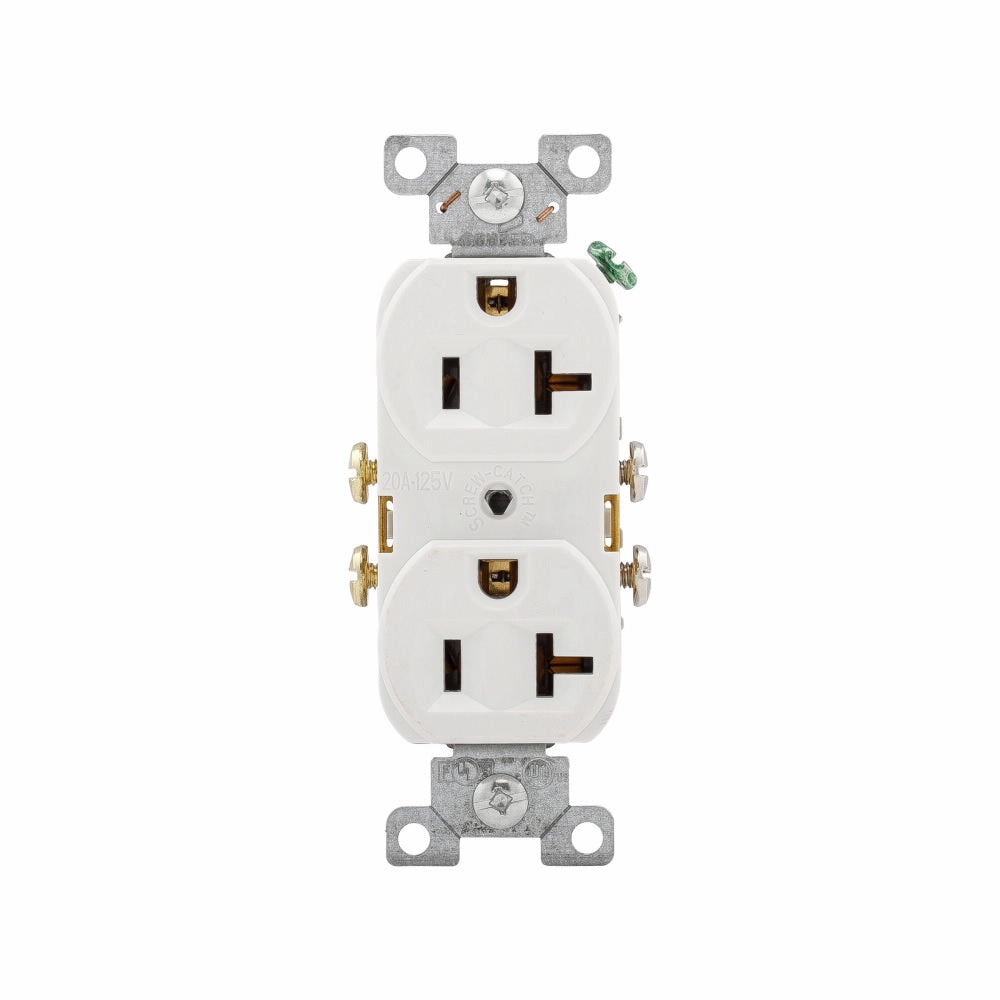

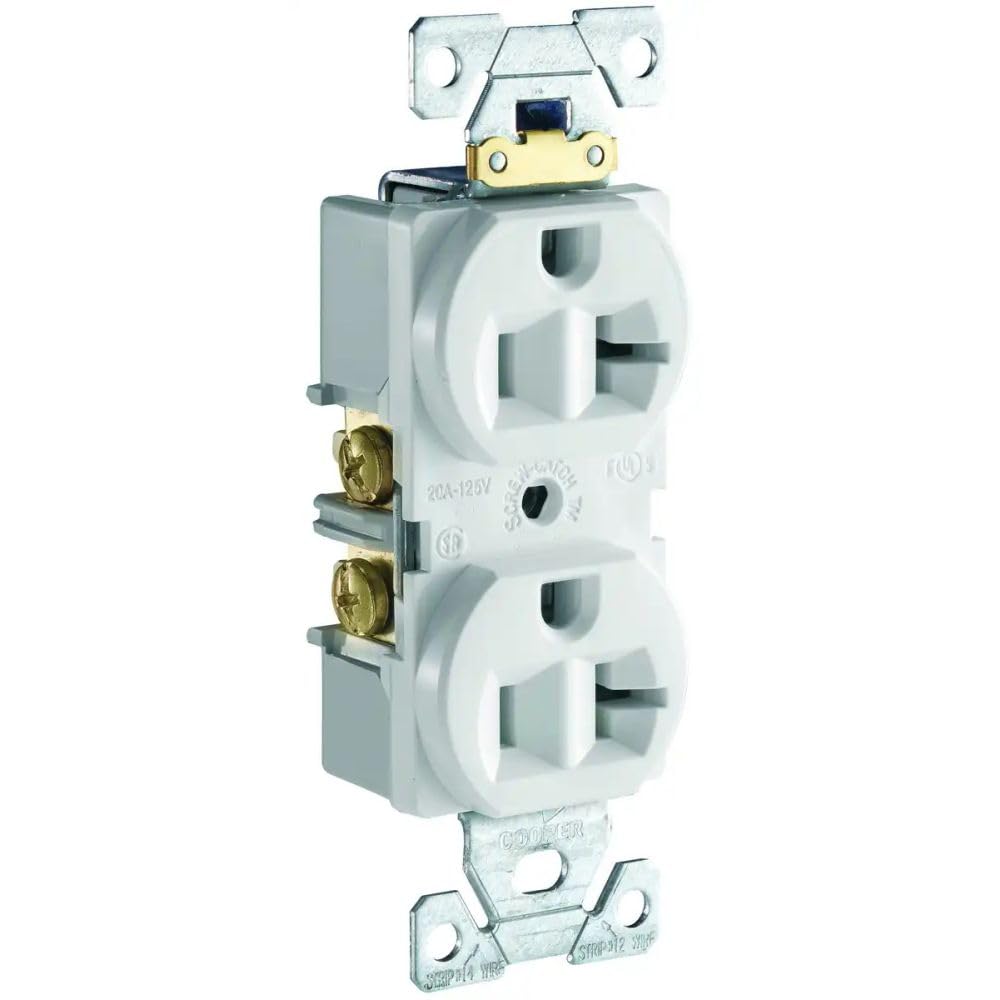

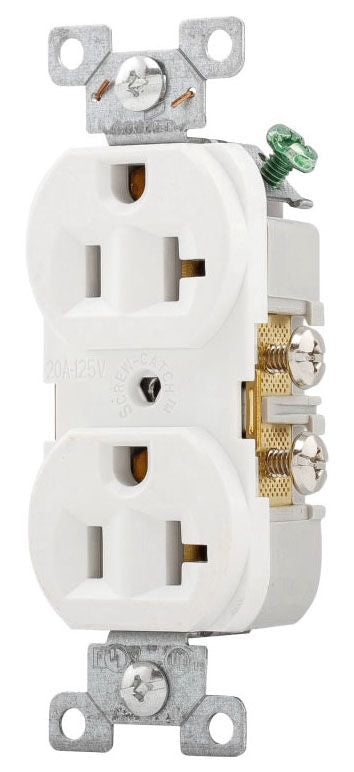

Eaton CR20W straight blade duplex receptacle 125 VAC 20 A

Product Description

The EATON CR20W is a commercial specification grade straight blade duplex receptacle engineered for safe and reliable performance. This device offers maximum durability for a variety of applications and provides installation efficiency. It is rated for 125 VAC and 20 A and features a side wire connection.

• Engineered for safe, reliable performance
• Maximum durability in a wide variety of applications
• Installation efficiency to help finish the job on time

Product Highlights

Commercial specification grade duplex receptacle with side wire connection, designed for durability and efficient installation in diverse applications.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: CR20W
• Country of Origin: CHN

Technical Specifications

• Amperage: 20 A
• Voltage: 125 VAC
• Poles: 2
• Wires: 3
• NEMA Configuration: 5-20R
• Listing: UL 498 and Federal Specification WC-596
• Type: Duplex Receptacle
• Grade: Commercial Specification Grade
• Wiring: Side wire
• Material: Brass, High-impact nylon, PVC
• Mounting: Flush
• Wire Range: NO.14-10 AWG
• Constructional Feature: Impact/Tamper Resistant
• Voltage Rating: 125 Volt AC
• Current Rating: 20 Amp
• Ground Type: Grounding
• RoHS Compliant: True
• Contact Material: Brass Alloy
• Applicable Standard: FS 6233-01
• Compliance: Nafta Compliant
• Amperage Rating: 20A
• Temperature Rating: -20 to 70 deg C
• Terminal Type: Side Wire/Screw
• Application: Commercial
• Device grade: Commercial
• Number of wires: 3
• Mounting method: Flush
• Number of poles: Two-pole
• Style type: Standard
• Packaging type: Core pack
• Color: White
• Connection type: Screw
• Allowable wire size: Side Wiring: #10-14 Copper or Copper Clad Aluminum
• NEMA configuration: 5-20R
• Torque rating: 14 lbf-inch
• Design type: Straight blade
• Face/body material: High-impact nylon PVC
• Receptacle type: Duplex
• Compliances: RoHS Compliant
• Certifications: cULus Listed NOM Federal Specification Classification 6233 01
• Product Type: Commercial specification grade
• Device type: Receptacle
