Eaton CR20V Duplex Straight Blade Receptacle 20 A, 125 VAC, NEMA 5-20R

Product Description

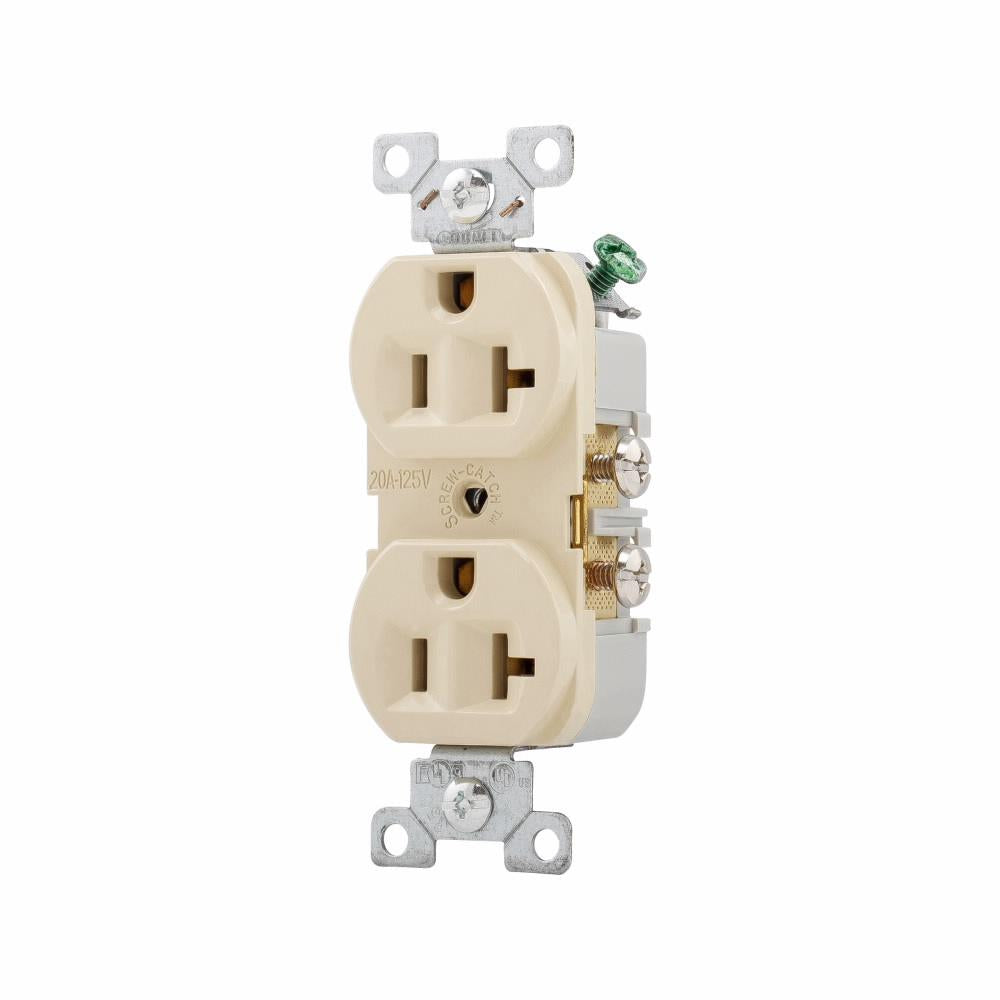

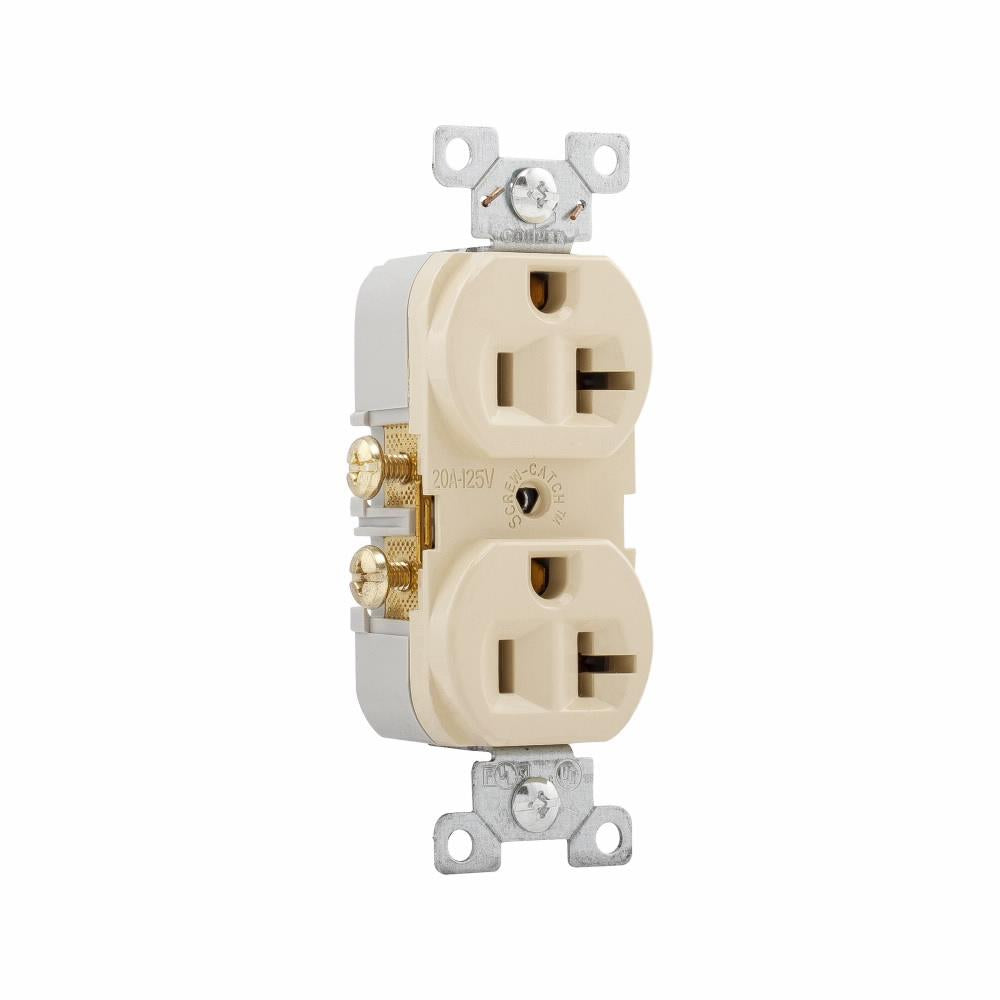

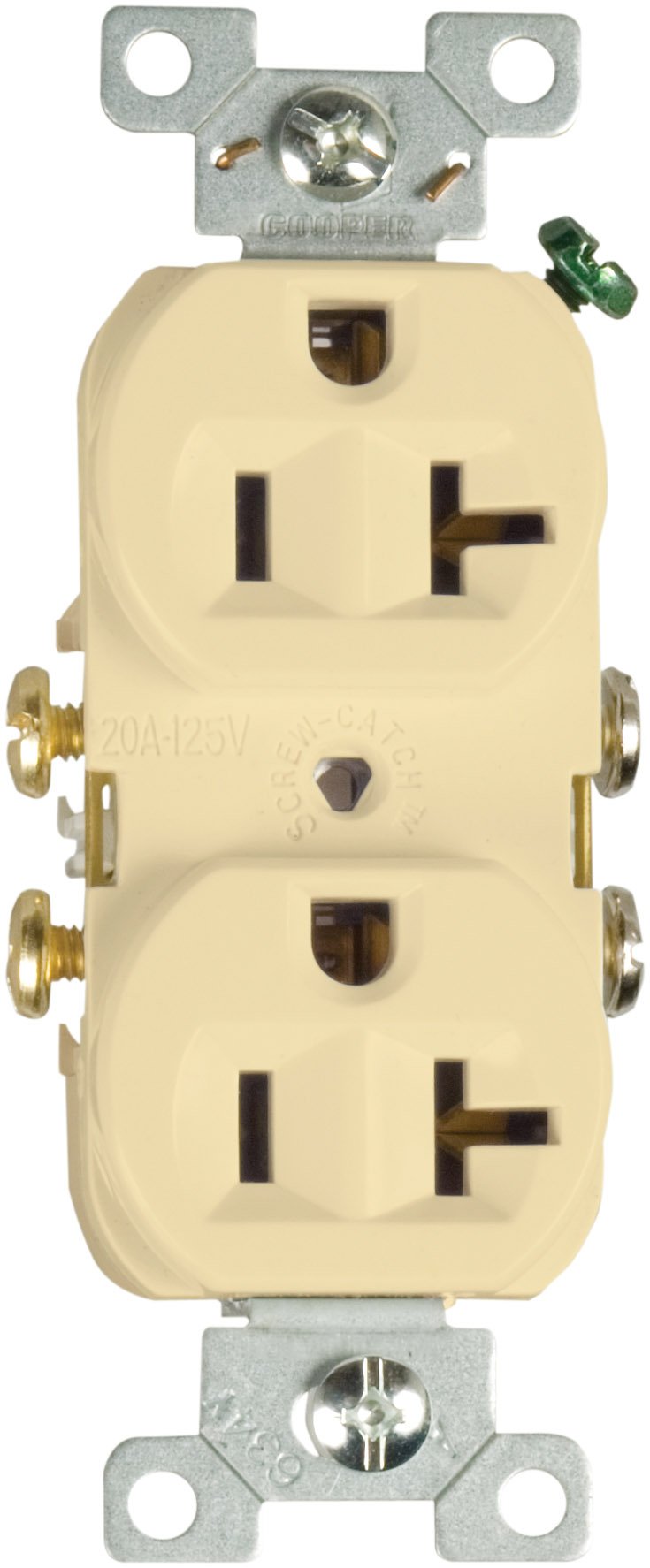

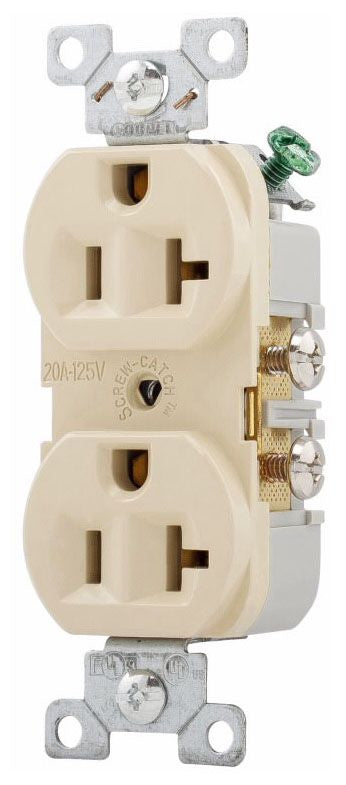

The EATON CR20V is a commercial specification grade straight blade duplex receptacle. Rated for 20 A and 125 VAC with a NEMA 5-20R configuration, it is engineered for safe and reliable performance. This receptacle is UL 498 and Federal Specification W-C-596 listed, providing maximum durability and installation efficiency.

• Features a galvanized steel, wraparound yoke mounting strap for assembly security.
• Automatic grounding system eliminates the need for a bonding jumper.
• Screw catch feature speeds mounting of wallplates.

Product Highlights

This EATON receptacle is ideal for commercial applications requiring a durable and code-compliant wiring device.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: CR20V
• Country of Origin: CHN

Technical Specifications

• Grade: Commercial
• Material: PVC
• NEMA Rating: NEMA 5-20R
• Series: CR20
• Temperature Rating: -4 to 158 deg F
• Terminal Type: Side Wire/Screw
• Type: Duplex
• Voltage Rating: 125 VAC
• Amperage Rating: 20 A
• Number of Poles: 2
• Number of Wires: 3
• Wire Size: 14 to 10 AWG
• Mounting Type: Flush
• Configuration: 5-20R
• Wiring: Side
• Approval: UL (Canada and US), UL 94, CSA C22.2, NOM 426
• RoHS/NAFTA Compliant: Compliant
• Connection Type: Screw
• Applicable Standard: ANSI, FS 6233-01
• Dielectric Strength: 2000 V
• Power Rating: 1 hp
