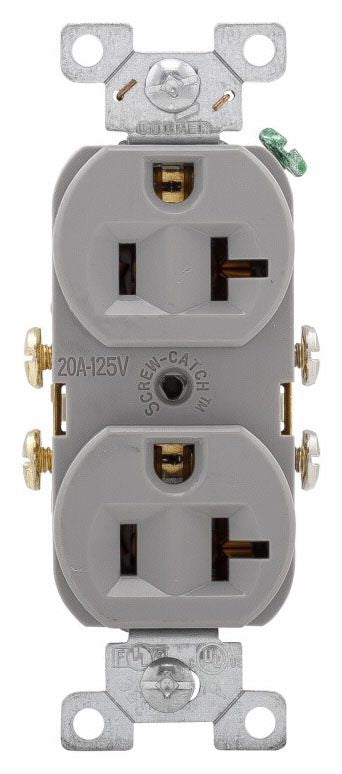

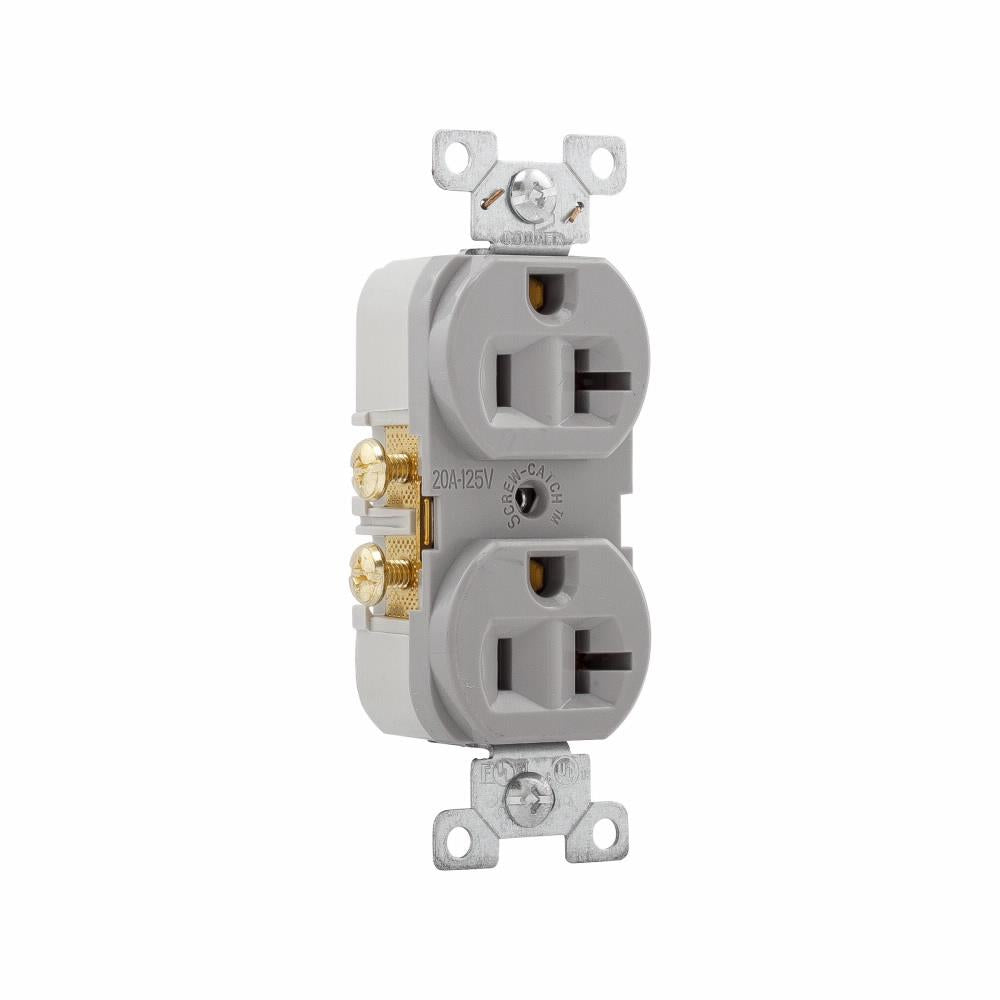

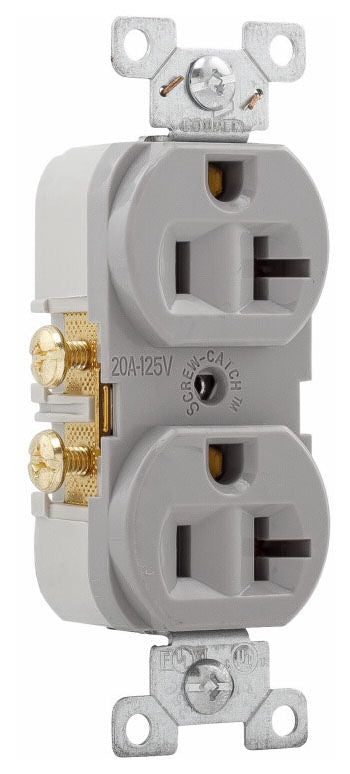

Eaton CR20GY Duplex Tamper-Resistant Straight Blade Receptacle 20A 125V

Product Description

The EATON CR20GY is a commercial specification grade straight blade receptacle, engineered for safe, reliable performance. This duplex tamper-resistant receptacle is rated for 20A and 125 VAC, and NEMA 5-20R. It provides maximum durability in a wide variety of applications and installation efficiency.

• Compliant with 2014 NEC Article 406.12 for tamper-resistant receptacles in dwelling units.
• Features a galvanized steel, wraparound yoke mounting strap for assembly security.
• Automatic grounding system eliminates the need for a bonding jumper in grounded metal enclosures.

Product Highlights

This EATON straight blade receptacle is ideal for commercial applications requiring a durable and code-compliant electrical connection.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: CR20GY
• Country of Origin: CHN

Technical Specifications

• Grade: Commercial
• Material: PVC
• NEMA Rating: NEMA 5-20R
• Series: CR20
• Temperature Rating: -4 to 158 deg F
• Terminal Type: Side Wire/Screw
• Type: Duplex, Straight Blade
• Voltage Rating: 125 VAC
• Amperage Rating: 20 A
• Number of Poles: 2
• Number of Wires: 3
• Wire Size: 14 to 10 AWG
• Mounting Type: Flush
• Configuration: NEMA 5-20R
• Current Rating: 20 Amp
• Ground Type: Grounding
• Wiring: Side
• Approval: UL (Canada and US), NOM 426
• RoHS Compliant: True
• Connection Type: Screw
• Flammability Rating: UL 94-V2
• Application: Non-Residential Applications
• Standards/Approvals: cULus Listed|UL 498|UL File No. E15058|Federal Specification W-C-596G|NOM 426 Certified|UL 94 V-2 Flammability Rated
• Allowable wire size: Side Wiring: #10-14 Copper or Copper Clad Aluminum
• Torque rating: 14 lbf-inch
• Design type: Straight blade
• Face/body material: PVC High-impact nylon
• Receptacle type: Duplex
