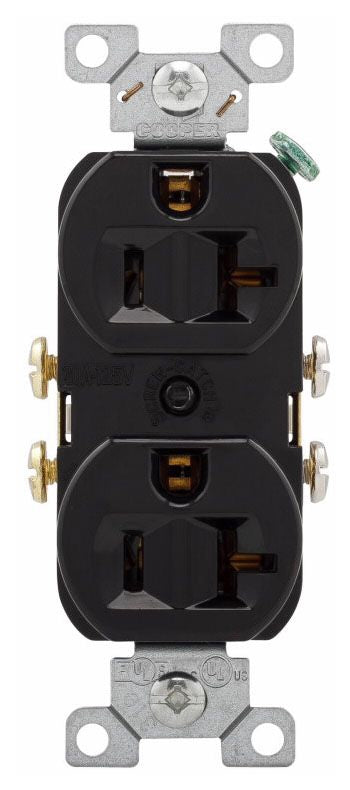

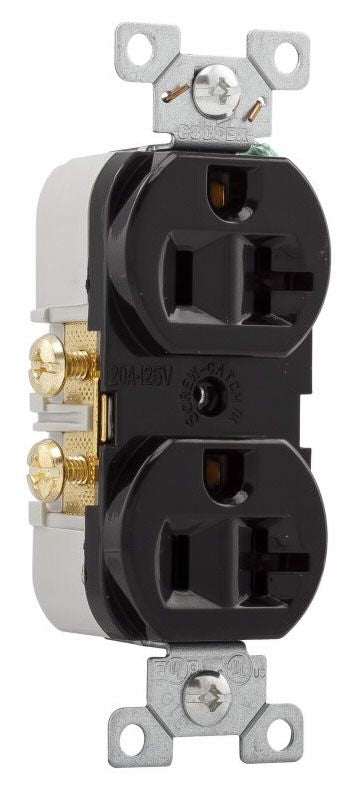

Eaton CR20BK Recp Duplex 20A 125V 2P3

Product Description

The Eaton CR20BK is a commercial specification grade duplex receptacle designed for non-residential applications. Rated for 20A and 125V, it supports wiring from 14-10 AWG. Constructed with high-impact nylon and PVC, this receptacle features side wiring and a screw connection type. It is UL 498 and Federal Specification WC-596 listed for durability and safety.

• Suitable for commercial applications
• Constructed from durable PVC and high-impact nylon
• Features side wiring and screw connection

Product Highlights

This Eaton duplex receptacle is ideal for commercial settings, offering a robust design and reliable performance.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: CR20BK
• Country of Origin: CHN

Technical Specifications

• NEMA: 5-20R
• Type: Commercial Grade
• Brand: Eaton
• Voltage: 125 Volt AC
• Amperage: 20 Amp
• Material: PVC
• Sub Brand: Eaton Wiring Devices
• Wire Size: 14-10 AWG
• Applications: For Non-Residential Receptacle
• Mounting Type: Flush
• Conductor Size: 14-10 AWG
• Connection Type: Duplex Receptacle
• Number of Poles: 2 Pole
• Number of Wires: 3 Wire
• Temperature Rating: -20 to 70 degrees C
• Insulation Material: PVC
• Constructional Feature: Chemical/Impact Resistant
• Ground Type: Grounding
• Wiring: Side
• Grade: Commercial
• RoHS Compliant: True
• Flammability Rating: UL 94 V-2
• Voltage Rating: 125 VAC
• Amperage Rating: 20 A
• Terminal Type: Side Wired
• Standard & Approvals: cULus Listed, CSA Certified, NOM Certified, UL Listed, RoHS Complaint
• Manufacturer: Eaton
• Vendor SKU: CR20BK
• UNSPSC: 39121406
• UPC: 032664554902
• GTIN: 00032664554902
• Product Length/Depth: 1.24 in
• Product Width: 0.79 in
• Compliances: RoHS Compliant
• Certifications: cULus Listed NOM Federal Specification Classification 6233 01
• Product Type: Commercial specification grade
• Device type: Receptacle
• Receptacle type: Duplex
• Contact material: Brass
• Application: Commercial
• Device grade: Commercial
• Mounting method: Flush
• Style type: Standard
• Allowable wire size: Side Wiring: #10-14 Copper or Copper Clad Aluminum
• NEMA Configuration: 5-20R
• Torque rating: 14 lbf-inch
• Design type: Straight blade
• Face/body material: PVC High-impact nylon
• Product Series: Commercial Grade
• Family Series: Eaton Plugs & Receptacles, Commercial Grade Series
• Watertight: No
• Isolated Ground: No
• Illuminated: No
• Approvals: CSA, UL
• Comments: Side Wire Only
