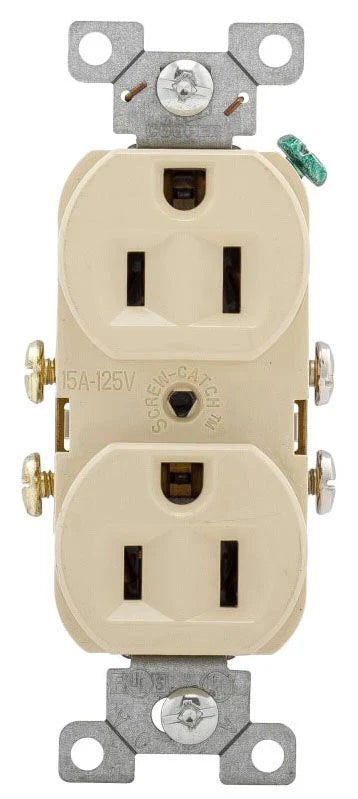

EATON CR15V Duplex Straight Blade Receptacle, 15A/125V, NEMA 5-15R

Product Description

The Eaton CR15V is a commercial specification grade duplex receptacle designed for reliable electrical connections. This receptacle is rated for 15 Amps at 125 Volts and complies with the NEMA 5-15R standards, making it suitable for various applications. The product features a sturdy nylon face that is both high impact and chemical resistant.

• Automatic grounding system simplifies installation.
• Screw-Catch feature for fast wall plate mounting.
• Designed for use in non-residential applications.

Product Highlights

This receptacle provides maximum durability and efficiency, ensuring safe operations in various conditions, from -4 to 158 degrees Fahrenheit.

Product Information

Standard Information

• Manufacturer: Eaton
• MPN: CR15V

Technical Specifications

• Amperage Rating: 15 A
• Voltage Rating: 125 VAC
• Color: Ivory
• NEMA Rating: NEMA 5-15R
• Material: PVC
• Dimensions: 4.19 inches H x 1.3 inches W x 0.82 inches D
• Grade: Commercial
• Number of Poles: 2
• Number of Wires: 3
• Temperature Rating: -4 to 158 degrees Fahrenheit
• Standards/Approvals: cULus Listed, UL 498
