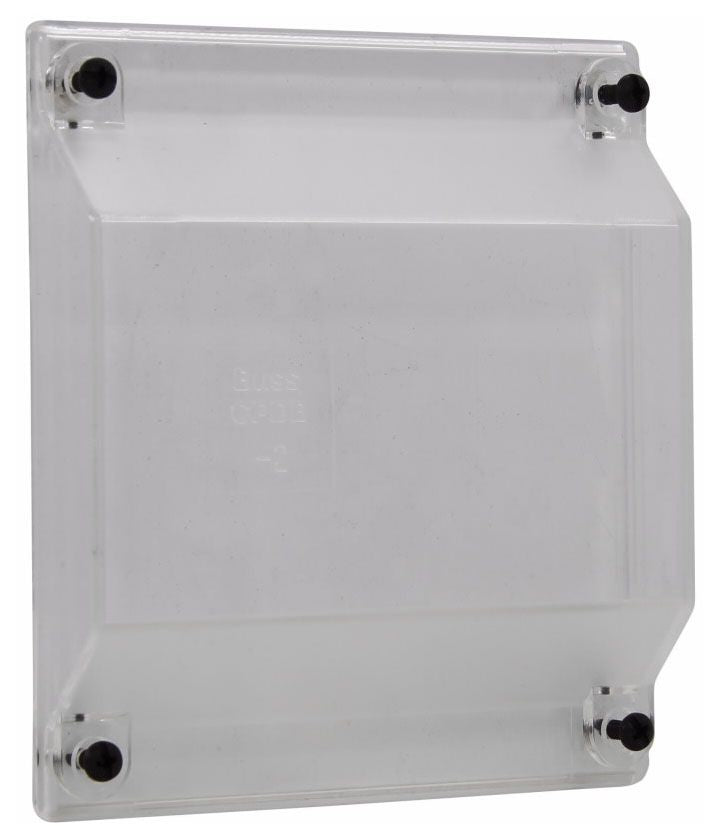

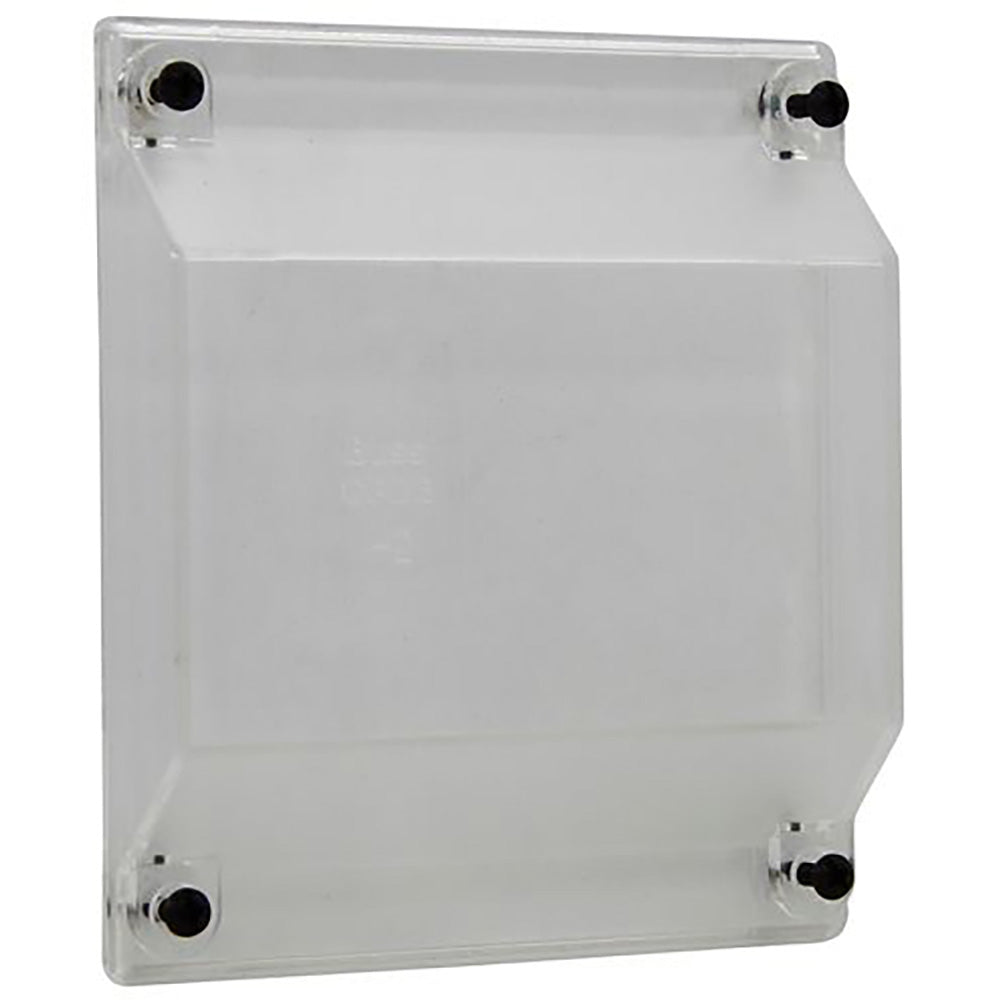

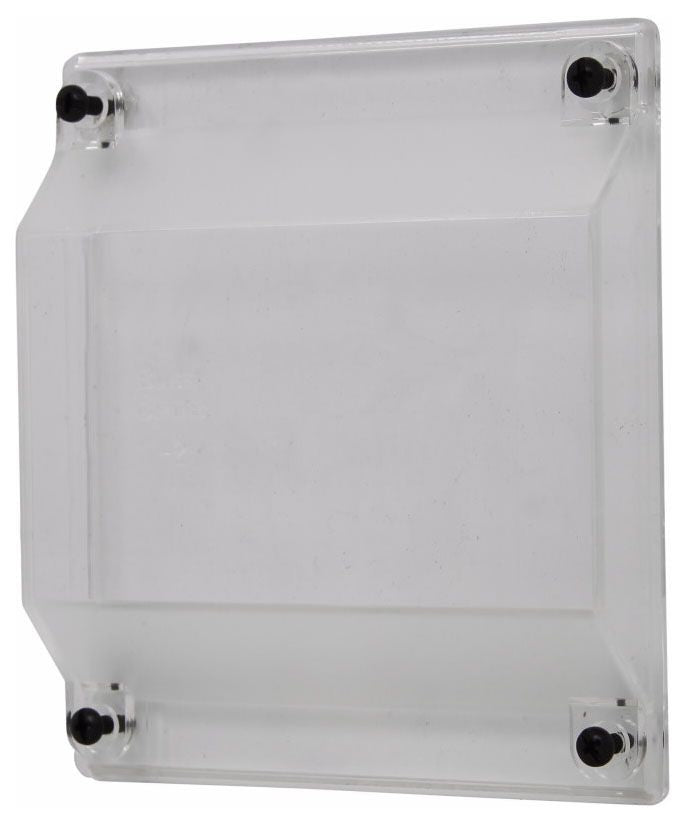

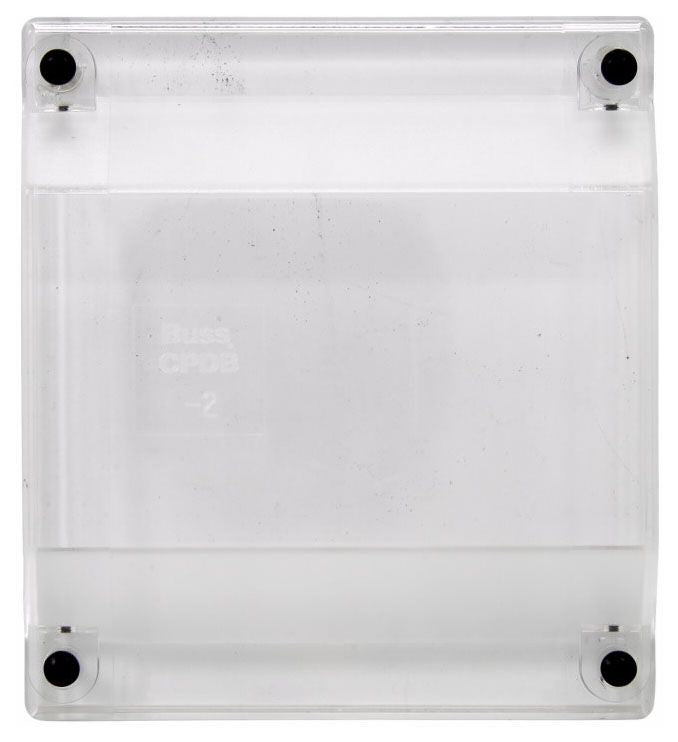

Eaton CPDB-2 163 Power Distribution Block Cover 600 Vac (3.72 in x 4.14 in)

Product Description

The Eaton CPDB-2 is a two-pole power distribution block cover for use with 163 series power distribution blocks. It provides insulation and protection for block connections and is panel-mount compatible. The cover is rated 600 Vac with a 200 kAIC short-circuit rating and accepts 14 AWG to 350 kcmil copper conductors; overall size approx 3.72 in x 4.14 in for electrical panels and OEM assemblies.

• Two-pole cover designed for Eaton/Bussmann 163 series power distribution blocks
• Electrical rating: 600 Vac; short-circuit rating: 200 kAIC; accepts 14 AWG to 350 kcmil Cu
• Panel-mount design with approximate dimensions 3.72 in L x 4.14 in W

Product Highlights

Two-pole 163 series panel-mount cover; 600 Vac and 200 kAIC rating; supports 14 AWG–350 kcmil copper conductors

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: CPDB-2
• Country of Origin: USA

Technical Specifications

• Brand: Eaton (Bussmann)
• Manufacturer Part Number: CPDB-2
• Series: 163
• Product Type: Power distribution block cover
• Number of Poles: 2
• Voltage Rating: 600 Vac
• Short Circuit Rating: 200 kAIC
• Wire Range: 14 AWG to 350 kcmil copper
• Mounting Type: Panel mount
• Dimensions: 3.72 in L x 4.14 in W (height not specified)
• Weight: 0.9 lb
• Compliance: RoHS compliant
• UPC: 51712247467
• Country of Origin: USA
• Intended Use: Used with 163 series power distribution and terminal blocks
• Application: Electrical assemblies, panels, and OEM applications
