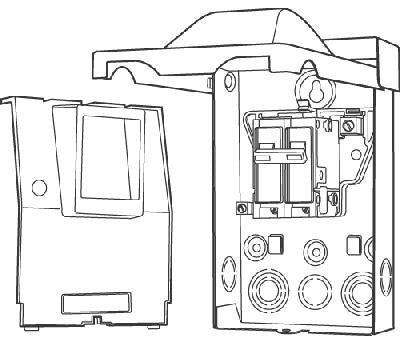

Eaton Corporation DPB222RP 60A Ac Disconnect Nema 3R

Product Description

The EATON CORPORATION DPB222RP is a 60-amp, 2-pole air conditioner disconnect switch rated for 240 volts. It is built as a molded case switch enclosed in a NEMA 3R rainproof housing, making it suitable for outdoor installation at residential and light commercial condensing units. Licensed electricians install this disconnect as the locally accessible means of disconnecting power to the air conditioning unit, as required by the National Electrical Code. The NEMA 3R enclosure protects internal components against rain, sleet, and external ice formation.

This disconnect is used in residential and light commercial HVAC applications where a fused or non-fused outdoor disconnect is required adjacent to the condensing unit or heat pump. It is rated at 60 amps and 240 volts, covering the majority of standard split-system air conditioners and heat pumps installed in single-family and small multi-family settings. The molded case switch design provides a compact, reliable disconnect mechanism without requiring separate fuse blocks.

Key Features

• 60-amp continuous current rating for standard residential AC loads
• 2-pole configuration for 240-volt single-phase disconnection
• NEMA 3R rainproof enclosure rated for outdoor installation
• Molded case switch design — no fuses required
• 240-volt rating covers most residential and light commercial condensing units

Compatibility

Designed as an OEM-style replacement or new-installation disconnect for residential and light commercial air conditioner and heat pump condensing units requiring a 60-amp, 240-volt, 2-pole non-fused disconnect.

Installation Notes

Installation must be performed by a licensed electrician in accordance with NEC Article 440 requirements for disconnecting means on air conditioning equipment. De-energize the circuit at the main panel before wiring the disconnect. The disconnect must be mounted within sight of the condensing unit and accessible to service personnel. Verify that the supply conductors are sized appropriately for the 60-amp rating before making connections.

Technical Specifications

• Current Rating: 60 amps
• Voltage Rating: 240 volts
• Poles: 2
• Switch Type: Molded Case Switch
• Enclosure Rating: NEMA 3R
• Weight: 15.9 pounds

Standard Information

• Brand: EATON CORPORATION
• Manufacturer Part Number: DPB222RP
