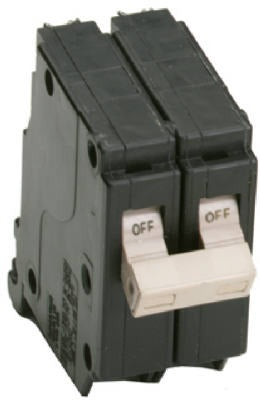

Eaton Corporation CHF250 50A Double Pole Circuit Breaker

Product Description

The EATON CORPORATION CHF250 is a 50-amp double pole circuit breaker designed for residential and light commercial electrical panel applications. Each pole measures 0.75 inches wide for a total width of 1.5 inches, making it a standard-size unit for common load center installations. The CHF250 features a tan toggle switch and a built-in trip flag indicator that provides a clear visual signal when the breaker has tripped. Licensed electricians install this type of breaker during panel upgrades, service calls, and new construction wiring. It ships in bulk packaging, with a unit of measure of each and a package quantity of five.

The CHF250 is suited for residential load centers and light commercial electrical panels where a 50-amp double pole position is required. Typical applications include branch circuits serving electric ranges, dryers, HVAC condensing units, water heaters, and similar 240-volt loads. The double pole configuration handles two-phase loads and provides simultaneous disconnection of both conductors on a fault event.

Key Features

• 50-amp double pole configuration for 240-volt branch circuit protection
• 0.75 inches per pole, 1.5 inches total width for standard load center fit
• Tan toggle switch for clear ON/OFF/TRIP position identification
• Built-in trip flag indicator for fast visual fault identification
• Bulk packaging with a package quantity of five units

Compatibility

Designed as an OEM-style replacement for standard residential and light commercial load center double pole circuit breaker positions. Verify panel compatibility with the breaker series and bus connection type before installation.

Installation Notes

Installation must be performed by a licensed electrician in accordance with the National Electrical Code (NEC) and all applicable local codes. Always shut off the main service disconnect and verify the bus bars are de-energized before removing or installing any breaker. Do not exceed the breaker amperage rating for the connected load or the conductor gauge specified for the circuit. Confirm the breaker series is listed and approved for use in the target load center before installation.

Technical Specifications

• Amperage: 50 amps
• Configuration: Double Pole
• Width Per Pole: 0.75 inches
• Total Width: 1.5 inches
• Toggle Color: Tan
• Trip Indicator: Trip Flag
• Package Quantity: 5
• Unit of Measure: Each
• Weight: 3.3 pounds

Standard Information

• Brand: EATON CORPORATION
• Manufacturer Part Number: CHF250
