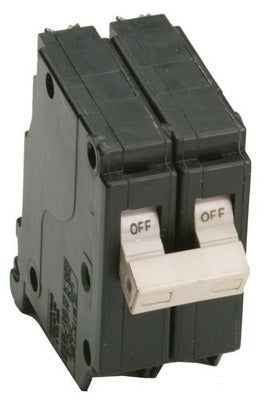

Eaton Corporation CHF220CS 20A Double Pole Circuit Breaker

Product Description

The EATON CORPORATION CHF220CS is a 20-amp double pole circuit breaker designed for residential and light commercial panelboard applications. Each pole measures 0.75 inches wide for a total width of 1.5 inches, making it a compact fit for standard loadcenters. The breaker includes a trip flag indicator, which provides a clear visual signal when the breaker has tripped, allowing technicians to identify a fault condition without manual testing of each device. This breaker is installed by licensed electricians during panel upgrades, branch circuit additions, or direct replacement of failed overcurrent protection devices.

The CHF220CS is suited for 120/240-volt residential branch circuits requiring double pole overcurrent protection. Typical applications include circuits serving electric ranges, dryers, water heaters, and HVAC equipment that require a two-pole disconnect at the panel. Its clamshell packaging indicates retail or counter-sale distribution, making it a practical stock item for electrical supply houses and service vans alike.

Key Features

• 20-amp double pole configuration provides 240-volt branch circuit protection
• Trip flag indicator gives immediate visual confirmation of a tripped condition
• 0.75 inches per pole, 1.5 inches total width fits standard loadcenter slots
• Clamshell packaged for retail counter or supply house distribution
• Compact form factor suits panel retrofits and direct breaker replacements

Compatibility

Designed as an OEM-style replacement double pole circuit breaker for compatible Eaton and Cutler-Hammer loadcenters and panelboards accepting CHF-series breakers. Verify panelboard labeling and UL listing marks before installation.

Installation Notes

Circuit breaker installation must be performed by a licensed electrician in accordance with the National Electrical Code (NEC) and applicable local codes. Always shut off main power to the panelboard before removing or installing any breaker. Confirm that the panel is rated to accept CHF-series breakers before proceeding. Do not exceed the breaker ampacity for the connected wire gauge.

Technical Specifications

• Amperage: 20 amps
• Configuration: Double Pole
• Width Per Pole: 0.75 inches
• Total Width: 1.5 inches
• Trip Indicator: Trip Flag Indicator included
• Package Quantity: 3 per package
• Unit of Measure: EA
• Weight: 2.1 pounds

Standard Information

• Brand: EATON CORPORATION
• Manufacturer Part Number: CHF220CS
