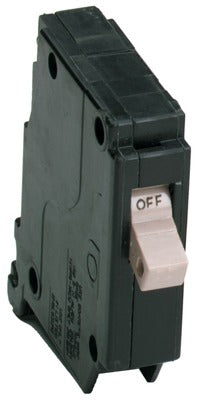

Eaton Corporation CHF130CS 30A Single Pole Circuit Breaker

Product Description

The EATON CORPORATION CHF130CS is a 30-amp single-pole circuit breaker designed for residential and light commercial panelboard applications. Built under the Cutler-Hammer product line, it provides reliable overcurrent protection for branch circuits. The breaker features a trip flag indicator that gives a clear visual signal when the breaker has tripped, allowing technicians and electricians to identify a fault condition without guesswork. At 3/4 inch per pole wide, it fits standard load centers that accept this form factor. Licensed electricians are the primary installers for this device in new construction, service upgrades, and panel replacement work.

The CHF130CS is suited for use in residential load centers and light commercial distribution panels where a 30-amp single-pole breaker is required. Common applications include branch circuits serving electric dryers, well pumps, or other 120-volt, 30-amp dedicated circuits. The trip flag indicator makes it particularly useful in multi-circuit panels where quick fault identification reduces diagnostic time on a service call.

Key Features

• 30-amp single-pole overcurrent protection for branch circuit applications
• Trip flag indicator provides a clear visual fault signal at the breaker
• 3/4 inch per pole wide profile fits standard compatible load centers
• Clamshell packaged for retail and counter-sale convenience
• Sold as individual units (each)

Compatibility

Designed as an OEM-style replacement or new-installation single-pole circuit breaker for standard residential and light commercial load centers that accept the Cutler-Hammer CHF-series breaker form factor.

Installation Notes

Installation must be performed by a licensed electrician in accordance with the National Electrical Code (NEC) and all applicable local codes. Always de-energize the panelboard at the utility disconnect or main breaker before working inside the load center. Verify that the breaker amperage and pole configuration match the circuit conductor size and load requirements before installation. Do not install a higher-rated breaker than the wire gauge serving the circuit can support.

Technical Specifications

• Amperage: 30 amps
• Poles: Single pole
• Width Per Pole: 0.75 inches
• Trip Indicator: Trip flag included
• Package: Clamshell
• Unit of Measure: Each
• Package Quantity: 6
• Weight: 2.1 pounds

Standard Information

• Brand: EATON CORPORATION
• Manufacturer Part Number: CHF130CS
