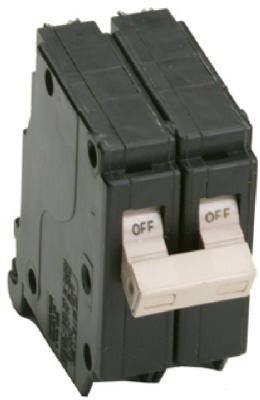

Eaton Corporation CH260 Double Pole Circuit Breaker 60A

Product Description

The EATON CORPORATION CH260 is a 60-amp double pole circuit breaker designed for residential and light commercial electrical panels. It provides overcurrent protection for 240-volt branch circuits, interrupting fault current to prevent wire damage and fire hazard. The breaker features a tan toggle switch and measures 0.75 inches per pole, totaling 1.5 inches wide. It fits standard load centers that accept CH-series breakers. Licensed electricians install this type of device during new construction, panel upgrades, and circuit additions.

The CH260 is suited for 240-volt residential branch circuits including electric dryers, water heaters, HVAC equipment, and similar double-pole loads. Its 1.5-inch total width fits standard tandem-style CH load centers. The unit is sold in bulk packaging with a package quantity of five, making it practical for electrical contractors stocking service vehicles or completing multi-circuit rough-in work.

Key Features

• 60-amp rating for double pole 240-volt branch circuit protection
• 0.75 inches per pole, 1.5 inches total width for CH-series panel compatibility
• Tan toggle switch for clear ON/OFF/TRIPPED indication
• Bulk packaging, 5 units per package
• Double pole design interrupts both legs of a 240-volt circuit simultaneously

Compatibility

Designed as an OEM-style replacement and new-installation breaker for load centers accepting CH-series double pole breakers.

Installation Notes

Installation must be performed by a licensed electrician in accordance with the National Electrical Code (NEC) and all applicable local codes. Always shut off the main breaker and verify the bus bar is de-energized before handling or installing circuit breakers. Use appropriately rated conductors for the 60-amp rating and ensure proper torque on all terminal connections per the panel manufacturer specifications. Do not install in panels that are not rated for CH-series devices.

Technical Specifications

• Amperage: 60 amps
• Pole Configuration: Double pole
• Width per Pole: 0.75 inches
• Total Width: 1.5 inches
• Toggle Color: Tan
• Package Quantity: 5 units
• Weight: 3.3 pounds

Standard Information

• Brand: EATON CORPORATION
• Manufacturer Part Number: CH260
