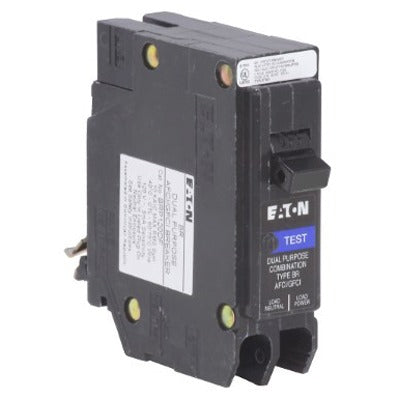

Eaton Corporation BRP115DF 15A 1-pole Afci Gfci Circuit Breaker

Product Description

The EATON CORPORATION BRP115DF is a 15-amp, single-pole combination AFCI/GFCI circuit breaker designed for residential and light commercial electrical panels. It provides dual protection by detecting both arc faults and ground faults on the same circuit, reducing fire and shock hazards simultaneously. Built to Type BR specifications, this breaker fits Eaton BR-series load centers and is a standard tool for electricians working to current NEC requirements for bedroom, kitchen, laundry, and living area circuits. The 15-amp rating suits general-purpose branch circuits protected at standard household loads.

This breaker is used in residential new construction, renovation, and panel upgrade projects where NEC 2014 or later code compliance is required. Electricians install it as a direct replacement in existing Type BR panels or in new BR load centers. It handles single-phase, 120-volt branch circuits and consolidates arc-fault and ground-fault protection into one device, eliminating the need for separate AFCI and GFCI protection on a single circuit.

Key Features

• Combination AFCI and GFCI protection in a single 1-pole breaker
• 15-amp rating for standard general-purpose branch circuits
• Type BR form factor for compatibility with Eaton BR-series panels
• Meets NEC requirements for combined arc-fault and ground-fault protection
• Single-pole design for 120-volt branch circuit applications

Compatibility

Designed as an OEM-style replacement for Type BR single-pole circuit breaker positions in residential and light commercial load centers accepting BR-series breakers.

Installation Notes

Installation must be performed by a licensed electrician in accordance with the NEC and applicable local codes. Always shut off the main breaker and verify the panel is de-energized with a non-contact voltage tester before handling breakers or bus connections. Follow manufacturer instructions for proper bus-stab seating and neutral pigtail connection, which is required for AFCI/GFCI combination devices. Do not bypass or defeat the test and reset functions after installation.

Technical Specifications

• Amperage: 15 amps
• Poles: 1
• Protection Type: AFCI/GFCI Combination
• Breaker Type: Type BR
• Weight: 8 pounds
• Unit of Measure: EA
• Package Quantity: 20

Standard Information

• Brand: EATON CORPORATION
• Manufacturer Part Number: BRP115DF
