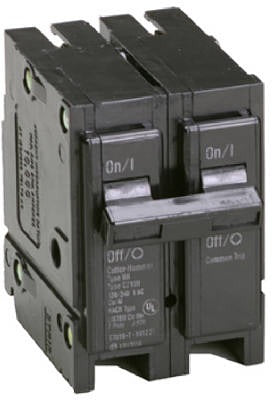

Eaton Corporation BR240 40A Double Pole Circuit Breaker

Product Description

The EATON CORPORATION BR240 is a 40-amp, double-pole, interchangeable circuit breaker rated for 120/240 volts. It is designed for use in residential and light commercial load centers where branch-circuit overcurrent protection is required. The BR240 is fullsize, measuring 2 inches wide, and fits the BR-series panel format. Licensed electricians install this breaker during panel upgrades, new construction wiring, and branch-circuit additions. The double-pole configuration provides simultaneous trip protection across both legs of a 240-volt circuit, making it suitable for appliances such as electric dryers, ranges, water heaters, and HVAC equipment.

This breaker is intended for use in BR-series load centers commonly found in residential panel installations. Its interchangeable design allows it to seat correctly in compatible enclosures without modification. The fullsize, 2-inch width fits standard tandem-ready and full-slot positions within the BR panel family. Each unit is individually barcoded and sold in bulk packaging with a package quantity of 5 units per package, which suits stocking needs for electrical contractors and supply houses alike.

Key Features

• 40-amp, double-pole overcurrent protection for 240-volt branch circuits
• Fullsize 2-inch wide form factor for BR-series load centers
• Rated 120/240 volts for compatibility with standard residential service
• Interchangeable design for drop-in replacement and new installation
• Individual UPC barcode on each unit for inventory and job tracking
• Bulk packaging with a quantity of 5 units per package

Compatibility

Designed as an OEM-style replacement and new-installation breaker for BR-series residential and light commercial load centers accepting fullsize double-pole breakers.

Installation Notes

Installation must be performed by a licensed electrician in accordance with the National Electrical Code (NEC) and applicable local codes. Always shut off main panel power before removing or inserting any breaker. Verify that the load center bus bar accepts the BR-series interchangeable form factor before installation. Do not exceed the breaker ampacity rating when sizing branch-circuit conductors.

Technical Specifications

• Amperage: 40 amps
• Poles: Double Pole
• Voltage Rating: 120/240 volts
• Width: 2 inches
• Size: Fullsize
• Weight: 3.5 pounds
• Package Quantity: 5 units
• Unit of Measure: EA

Standard Information

• Brand: EATON CORPORATION
• Manufacturer Part Number: BR240
