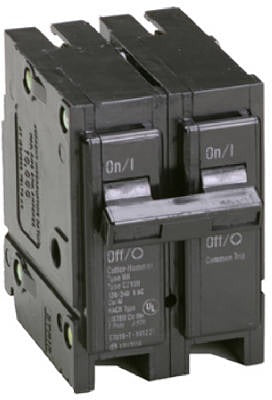

Eaton Corporation BR230 Double Pole Circuit Breaker 30A

Product Description

The EATON CORPORATION BR230 is a 30-amp double pole interchangeable circuit breaker rated for 120/240 volts. It is a full-size unit measuring 2 inches wide, designed for residential and light commercial electrical panels. Licensed electricians install this breaker to protect branch circuits from overcurrent conditions. The double pole configuration handles 240-volt loads such as dryers, ranges, water heaters, and HVAC equipment. Its interchangeable design simplifies panel work and replacement in compatible loadcenters.

This breaker is suited for residential service panels and light commercial applications where a full-size 30-amp double pole breaker is required. It is commonly installed to protect 240-volt dedicated circuits in single-family homes, multi-family units, and small commercial buildouts. The unit ships in bulk packaging with individual UPC bar coding, making it practical for wholesale distributors and electrical contractors managing inventory on active job sites.

Key Features

• 30-amp double pole overcurrent protection at 120/240 volts
• Full-size 2-inch wide form factor for standard loadcenter slots
• Interchangeable design for straightforward panel replacement
• Individual UPC bar code on each unit for inventory and job-site tracking
• Bulk packaging suitable for contractor and wholesale purchasing

Compatibility

Designed as an OEM-style interchangeable replacement for full-size double pole circuit breaker positions in residential and light commercial electrical panels.

Installation Notes

Installation must be performed by a licensed electrician in accordance with the National Electrical Code (NEC) and all applicable local codes. De-energize the panel and verify the main breaker is off before handling any breaker or bus connections. Confirm the panel's bus bar is compatible with the interchangeable BR-series form factor before installation. Never install a breaker rated above the circuit conductor's ampacity.

Technical Specifications

• Amperage: 30 amps
• Voltage Rating: 120/240 volts
• Pole Configuration: Double Pole
• Width: 2 inches
• Size: Full Size
• Weight: 3.5 pounds
• Package Quantity: 5 per package
• Unit of Measure: EA

Standard Information

• Brand: EATON CORPORATION
• Manufacturer Part Number: BR230
