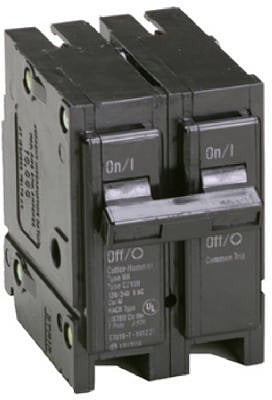

Eaton Corporation BR220 Double Pole Circuit Breaker 20A

Product Description

The EATON CORPORATION BR220 is a 20-amp, double-pole interchangeable circuit breaker rated for 120/240 volts. It is designed for use in fullsize residential load centers and panelboards where branch circuit overcurrent protection is required. At 2 inches wide, it occupies a standard two-pole breaker slot. The BR220 provides overcurrent and short-circuit protection for 240-volt loads such as HVAC equipment, water heaters, dryers, and similar double-pole branch circuits. Licensed electricians install this breaker during new construction, panel upgrades, and service calls requiring branch circuit replacement or addition.

This breaker is suited for fullsize residential load center applications operating at 120/240 volts. It fits standard interchangeable-style panel configurations. The double-pole design makes it appropriate for protecting two-wire, 240-volt branch circuits as well as multi-wire branch circuits sharing a neutral. Typical installations include residential service panels in single-family and multi-family dwellings where a fullsize, double-pole slot is available.

Key Features

• 20-amp overcurrent rating for double-pole branch circuit protection
• 120/240-volt dual-voltage rating covers standard residential service voltages
• Fullsize 2-inch width fits standard interchangeable load center slots
• Interchangeable design allows direct replacement in compatible BR-series panels
• Individual UPC barcode included for inventory and job-site tracking

Compatibility

Designed as an OEM-style interchangeable replacement for fullsize residential load centers and panelboards accepting standard double-pole circuit breakers.

Installation Notes

Installation must be performed by a licensed electrician in accordance with the National Electrical Code (NEC) and applicable local codes. De-energize the panel and verify the absence of voltage at the bus bars before handling any breaker or wiring. Ensure the breaker slot and panel bus are compatible with the BR220 before installation. Do not install in a panel that does not accept interchangeable-style BR-series breakers.

Technical Specifications

• Amperage: 20 amps
• Poles: 2 (Double Pole)
• Voltage Rating: 120/240 volts
• Width: 2 inches
• Size: Fullsize
• Weight: 3.5 pounds
• Package Quantity: 5 per package
• Unit of Measure: EA

Standard Information

• Brand: EATON CORPORATION
• Manufacturer Part Number: BR220
