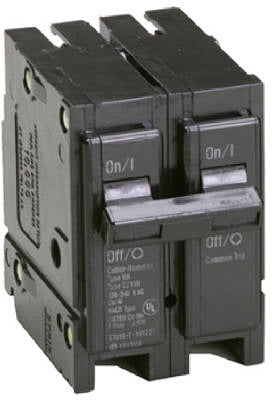

Eaton Corporation BR2100 100A Double Pole Circuit Breaker

Product Description

The EATON CORPORATION BR2100 is a 100-amp double-pole interchangeable circuit breaker rated for 120/240 volts AC. It is a fullsize unit measuring 2 inches wide and is designed for use in residential and light commercial electrical panelboards. The BR2100 can serve as a replacement main breaker or as an add-on 100-amp main breaker in 125-amp main lug load centers. It also functions as a branch circuit breaker where a high-ampacity double-pole position is required. Licensed electricians install this breaker during new construction, panel upgrades, and service replacements.

The BR2100 fits Eaton BR-series load centers and is commonly installed in residential main panels requiring a fullsize 2-inch double-pole position. It is suitable for use as a replacement main breaker when upgrading or restoring service in 125-amp main lug load centers, and also handles heavy branch circuit loads such as electric ranges, dryers, water heaters, and HVAC disconnect applications.

Key Features

• 100-amp double-pole configuration for 240-volt circuit protection
• Fullsize 2-inch width fits standard BR-series panel slots
• Interchangeable design supports both main breaker and branch circuit applications
• Rated 120/240 volts for compatibility with standard residential service voltage
• Includes individual UPC bar code for inventory and job-site tracking

Compatibility

Designed as a replacement main breaker or add-on 100-amp main breaker for 125-amp main lug load centers. Also used as a branch circuit breaker in compatible fullsize BR-series panelboards.

Installation Notes

Installation must be performed by a licensed electrician in accordance with NFPA 70 (National Electrical Code) and applicable local codes. The utility service must be de-energized at the meter before any main breaker work is performed. Verify panel bus rating and available slot width before installing. Do not install in subpanels or enclosures rated below the breaker ampacity.

Technical Specifications

• Amperage: 100 amps
• Voltage: 120/240 volts
• Poles: 2
• Width: 2 inches
• Size: Fullsize
• Weight: 3.5 pounds
• Package Quantity: 5

Standard Information

• Brand: EATON CORPORATION
• Manufacturer Part Number: BR2100
