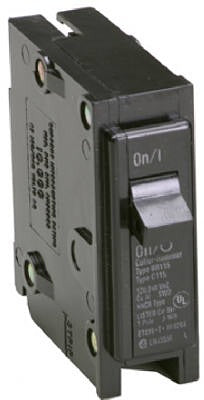

Eaton Corporation BR130 Single Pole Circuit Breaker 30A

Product Description

The EATON CORPORATION BR130 is a 30-amp single-pole circuit breaker rated at 120 volts, designed for residential and light commercial panelboard installations. At 1 inch wide, it fits standard loadcenters that accept interchangeable-style breakers. This breaker provides overcurrent protection for branch circuits, tripping automatically when current exceeds the rated amperage to protect wiring and connected equipment. It is a standard tool for licensed electricians during new construction, panel upgrades, and branch circuit additions. Each unit ships individually barcoded, making inventory tracking straightforward for electrical contractors and supply houses.

This breaker is suited for 120-volt single-pole branch circuits in residential panels and light commercial applications. Typical installations include lighting circuits, receptacle circuits, and small appliance branch circuits that require 30-amp overcurrent protection. Its interchangeable form factor allows it to slot into compatible loadcenters without special adapters or hardware. Electricians working on service upgrades or circuit additions will find this a direct-fit solution for panels designed around the BR-style breaker footprint.

Key Features

• 30-amp continuous current rating for branch circuit overcurrent protection
• 120-volt single-pole configuration
• 1-inch wide profile fits standard interchangeable-style panelboards
• Automatic trip mechanism opens the circuit on overcurrent or short circuit events
• Individual UPC barcode on each unit for jobsite and warehouse inventory control

Compatibility

Designed as an OEM-style replacement and new-installation breaker for panelboards that accept BR-series interchangeable single-pole circuit breakers.

Installation Notes

Installation must be performed by a licensed electrician in accordance with the National Electrical Code (NEC) and applicable local codes. Always shut off the main breaker and verify the panel is de-energized before installing or replacing a circuit breaker. Confirm the panelboard is listed for use with interchangeable-style BR breakers before installation. Do not exceed the breaker's rated ampacity when sizing the connected branch circuit conductors.

Technical Specifications

• Amperage: 30 amps
• Voltage: 120 volts
Poles: Single pole
• Width: 1 inch
• Weight: 3.5 pounds
• Unit of Measure: Each
• Package Quantity: 10

Standard Information

• Brand: EATON CORPORATION
• Manufacturer Part Number: BR130
