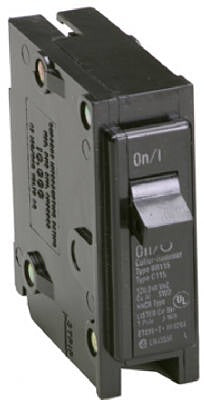

Eaton Corporation BR115 Single Pole Circuit Breaker 15A

Product Description

The EATON CORPORATION BR115 is a single-pole plug-on circuit breaker rated at 15 amps and 120 volts. It is designed for residential and light commercial electrical panelboards to provide overcurrent protection for branch circuits. The breaker measures 1 inch wide and features an interchangeable design, making it compatible with a range of load centers that accept BR-style breakers. Licensed electricians install this breaker as part of new construction wiring or panel upgrades. Its compact single-pole form factor fits standard panel positions without modification.

The BR115 is suited for residential branch circuit protection in kitchens, bathrooms, bedrooms, and utility spaces where 15-amp, 120-volt circuits are required. It is commonly installed in load centers during new builds, service upgrades, or circuit additions. The interchangeable design allows straightforward replacement of aging or tripped breakers in compatible panels without special adapters or tools beyond standard electrician hand tools.

Key Features

• 15-amp overcurrent protection on a single-pole configuration
• Rated for 120-volt branch circuits
• 1-inch wide profile fits standard single-pole panel slots
• Interchangeable plug-on design for compatible BR-style load centers
• Individual UPC bar code included for inventory and project tracking

Compatibility

Designed as an OEM-style replacement or new-install single-pole breaker for load centers and panelboards that accept BR-style interchangeable circuit breakers.

Installation Notes

Installation must be performed by a licensed electrician in accordance with the National Electrical Code (NEC) and all applicable local codes. Always shut off the main breaker and verify the panel is de-energized before handling any breaker or bus bar connection. Do not exceed the breaker's rated amperage for the connected branch circuit conductors. Confirm the load center is rated for BR-style interchangeable breakers before installation.

Technical Specifications

• Amperage: 15 amps
• Voltage: 120 volts
• Poles: Single pole
• Width: 1 inch
• Weight: 3.5 pounds
• Package Quantity: 10 per package
• Unit of Measure: EA

Standard Information

• Brand: EATON CORPORATION
• Manufacturer Part Number: BR115
