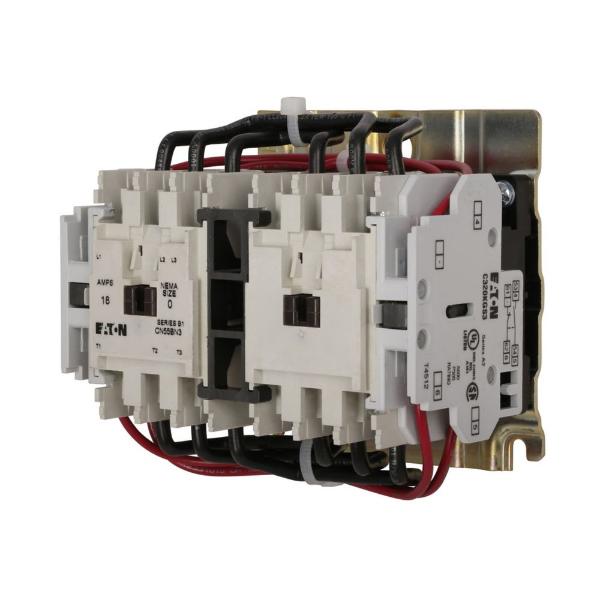

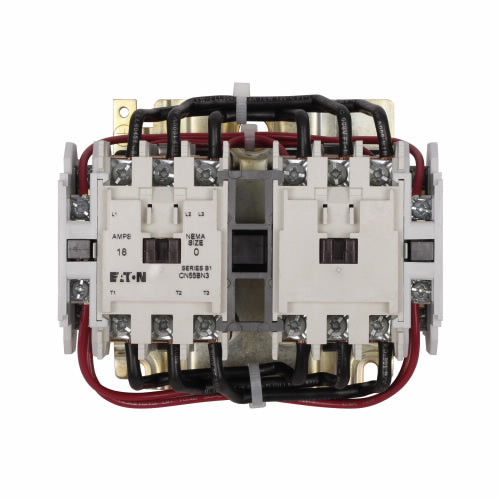

Eaton CN55AN3BB Freedom NEMA Motor Control Contactor 9A

Product Description

The EATON CN55AN3BB Freedom NEMA motor control contactor is a NEMA Freedom Series reversing contactor with a maximum horsepower of 1/3 hp at 115V, 1 hp at 230V, 1-1/2 hp at 208,240V, and 2 hp at 480,600V. It features a 240V/60 Hz or 220V/50 Hz coil voltage and a 9A, three-pole, Size 00.

• Designed for use with CE or CN non-reversing and reversing contactors.
• Features a full line of snap-on accessories common to both IEC and NEMA devices.
• Suitable for commercial and institutional buildings and structures.

Product Highlights

The EATON CN55AN3BB contactor is designed for use in various applications. It ensures overload protection and features easy-to-use accessible terminals for simple wiring.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: CN55AN3BB
• Country of Origin: United States

Technical Specifications

• Product Name: Eaton Freedom NEMA motor control contactor
• Catalog Number: CN55AN3BB
• UPC: 782113781204
• Product Length/Depth: 3.49 in
• Product Height: 3.88 in
• Product Width: 1.75 in
• Product Weight: 3.1 lb
• Warranty: Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first.
• Certifications: CSA Certified UL Listed
• Catalog Notes: Common Control
• Product Type: Motor control contactor
• HP rating - max: 1/3 hp at 115V,1 hp at 230V, 1-1/2 hp at 208,240V, 2 hp at 480,600V
• Phase: Single-phase, three-phase
• Amperage Rating: 9A
• Size: 0
• Coil voltage: 220-240 Vac, 50/60 Hz
• UNSPSC: 39121529
• Application: Commercial, Institutional Buildings and Structures
• Mounting Type: Surface
• Terminal Type: Line/Load
• Enclosure Type: Open
• Frequency Rating: 50/60
• Operating Temperature: -20°C ~ 65°C
• Type: 1/3-Phase Reversing
• Series: Freedom
• Dimensions: 3.49 in L x 1.75 in W x 3.88 in H
• Maximum Load Current: 9
• Voltage - Load: 600V
• Current - Output: 9A
• Wattage - Load: 1.491 kW
• Voltage - Supply: 220 ~ 240VAC
• Motor Type: AC Motor
• Control / Drive Type: Reversing Relay
• Motor Driver Boards, Modules: Motor Driver Boards, Modules
• Number of Motors: 1
• Manufacturer: Eaton Electrical
• Packaging: Box
• Part Status: Active
• Brand: Eaton/Cutler Hammer
• MPN: CN55AN3BB
• Country of Origin: United States
