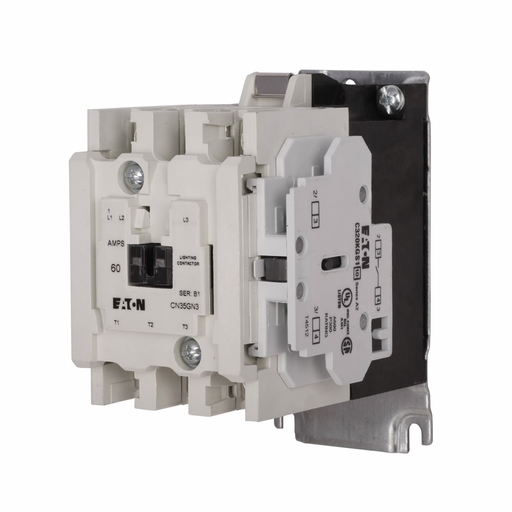

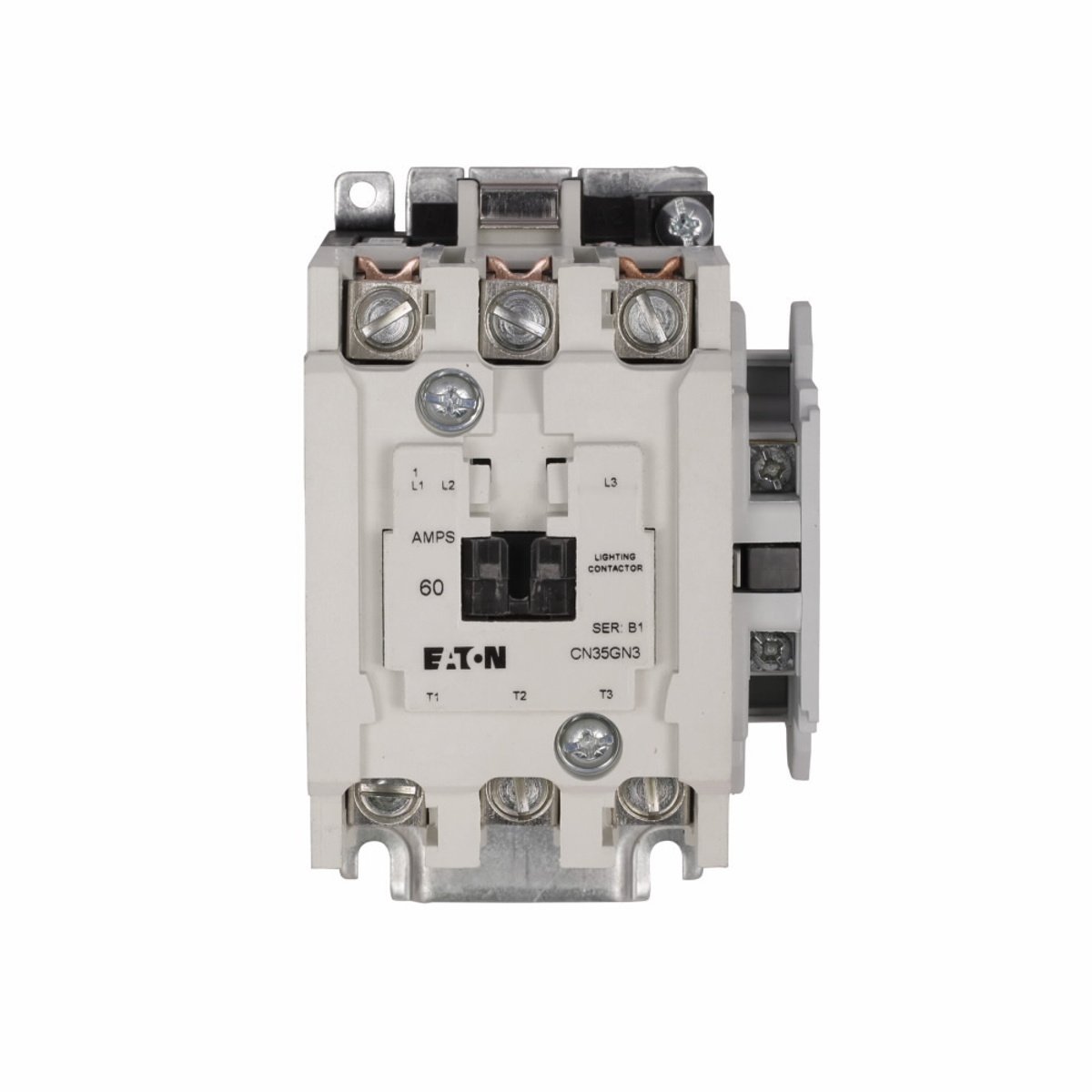

Eaton CN35GN3AB Contact Light Electrically Held 60A 1NO

Product Description

The Eaton CN35GN3AB is a lighting contactor designed for electrical control, featuring a rating of sixty amps with one normally open contact. This unit operates on a voltage range of one hundred ten to one hundred twenty VAC and is built for robust performance. Ideal for managing loads from incandescent to fluorescent lighting, it ensures reliable operation in both commercial and industrial environments.

• Rated for up to sixty amps with an open enclosure.
• Compatible with tungsten and ballast lamp loads.
• Designed to withstand high inrush currents without welding.

Product Highlights

This lighting contactor is engineered for effective control of lighting systems in large facilities, ensuring safety and efficiency.

Product Information

Standard Information

• Brand: Eaton
• Manufacturer Part No: CN35GN3AB

Technical Specifications

• Contact Rating: 60 A
• Coil Voltage: 110/120 VAC
• Number of Poles: 3
• Size: 65 mm
• Dimensions: 4.44 in L x 2.56 in W x 5.05 in H
• Frequency Rating: 50/60 Hz
• Contact Configuration: 1NO
• Number of Auxiliary Contacts: 1
