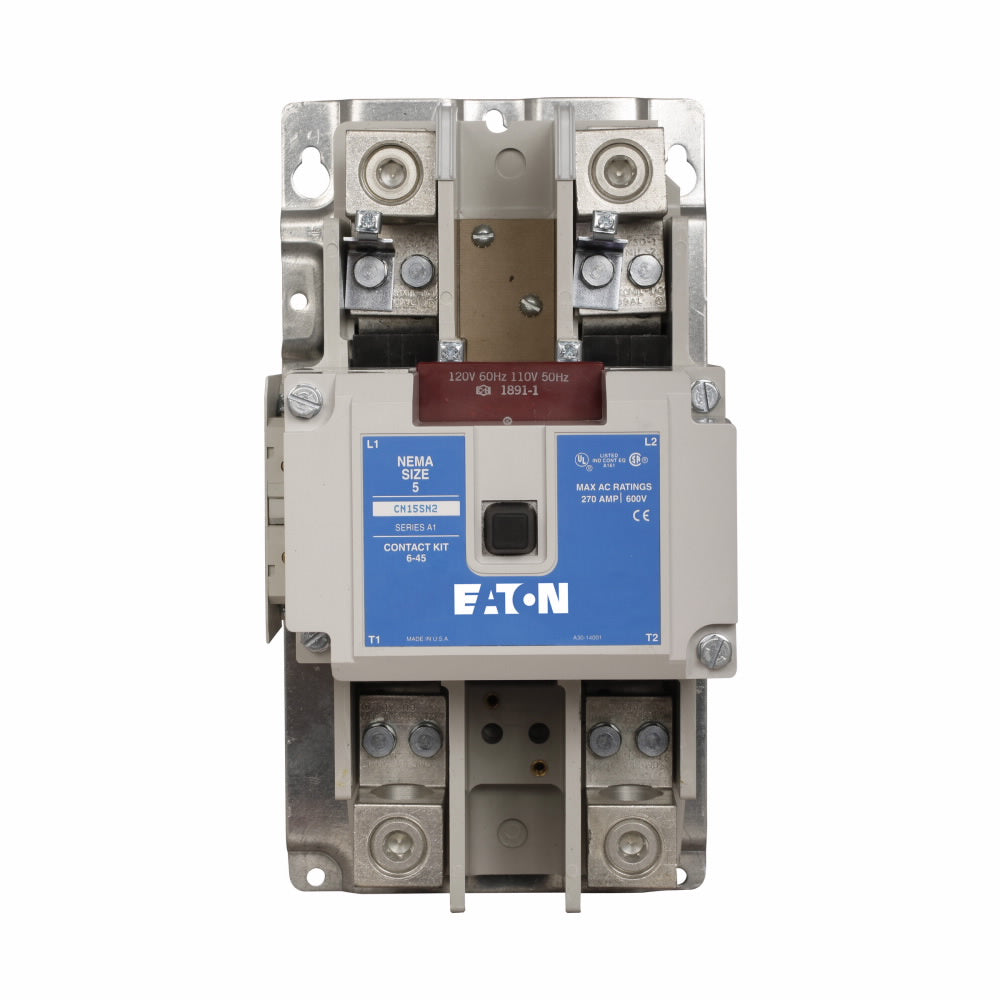

Eaton CN15SN3A Freedom NEMA Contactor Size 5 270A 120V Coil

Product Description

The Eaton CN15SN3A NEMA Freedom Series Non-Reversing Contactor delivers reliable motor control for commercial and institutional settings. This compact, three-pole contactor is designed for robust performance with a NEMA Size 5 classification and operates with a 120/60 or 110/50 coil voltage.

• Robust design suitable for heavy-duty applications
• Offers a high horsepower capacity up to 200 hp at 480V
• Designed for easy mounting and maintenance

Product Highlights

Designed for longevity and efficiency, the CN15SN3A features a durable construction and offers manual and automatic operation. Its modular design simplifies process automation.

Product Information

Standard Information

• Brand: Eaton
• MPN: CN15SN3A

Technical Specifications

• Amperage: 270 Amp
• NEMA Size: 5
• Dimensions: 7.78 inches Length x 7.05 inches Width x 13.12 inches Height
• Weight: 27.6 lb
• Coil Voltage: 120/60 or 110/50
• Number of Poles: 3
• Operational Frequency: 50/60 Hz
• Horsepower: 75/100/200 hp
