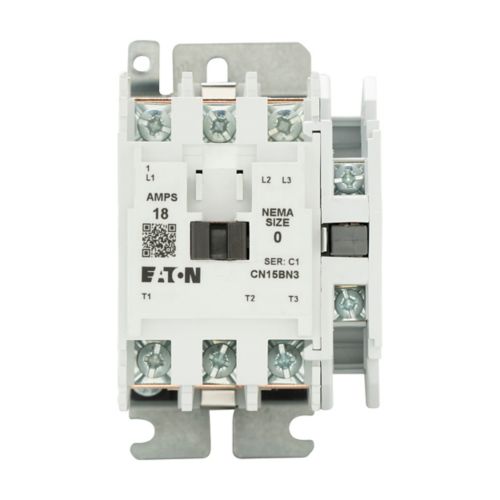

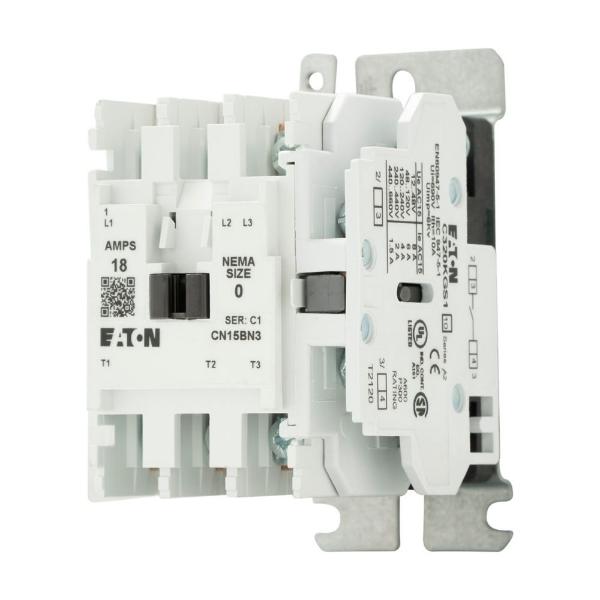

Eaton CN15BN3AB-T16 Freedom NEMA motor control contactor 18A

Product Description

The Eaton CN15BN3AB-T16 Freedom NEMA motor control contactor is a NEMA contactor designed for use with CE or CN non-reversing and reversing contactors. It features ring lug terminals, a three-pole design, and is open. Suitable for NEMA sizes 0, 1, and 2, with a T16 full amperes adjustment and a continuous ampere rating of 18A.

• Screw type power terminals with captive, backed-out self-lifting pressure plates reduce wiring time.
• Accessible terminals allow for ease of use and are convenient for simple wiring.
• Top located contactor magnet coils have three terminals which permit either top or diagonal wiring.

Product Highlights

The Eaton Freedom series contactors are designed for use in HVAC, pump, and industrial applications. They feature a full line of snap-on accessories common to both IEC and NEMA devices.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: CN15BN3AB-T16
• Country of Origin: US

Technical Specifications

• Product Name: Eaton Freedom NEMA motor control contactor
• Catalog Number: CN15BN3AB-T16
• UPC: 782114156124
• Product Length/Depth: 3.49 in
• Product Height: 3.88 in
• Product Width: 1.75 in
• Product Type: Motor control contactor
• Enclosure: NEMA 0, NEMA 1, NEMA 2
• Series: Freedom
• Terminals: Ring lug terminals
• Continuous ampere rating: 18 A
• Design: Open
• Amperage Rating: 18A
• Coil voltage: 110-120 Vac, 50/60 Hz
• Alternate Mfr Part Number: CN15BN3AB-T16
• Brand: Eaton - Cutler Hammer
• Manufacturer Part Number: CN15BN3AB-T16
• Overview: NEMA OPEN 3P CONT SIZE 0 120V COIL W/RING LUG TERM
• UNSPSC: 39121521
• Application: Project Construction, HVAC, Pump and Industrial Applications
• Mounting Type: Surface
• Terminal Type: Lug Ring
• Contact Rating: 18
• Enclosure Type: Open
• Frequency Rating: 50/60
• Type: Non-Reversing
• Includes: Steel Mounting Plate
• Amps Rating: 18A
• Frequency: 50/60 Hz
• Length: 3.49"
