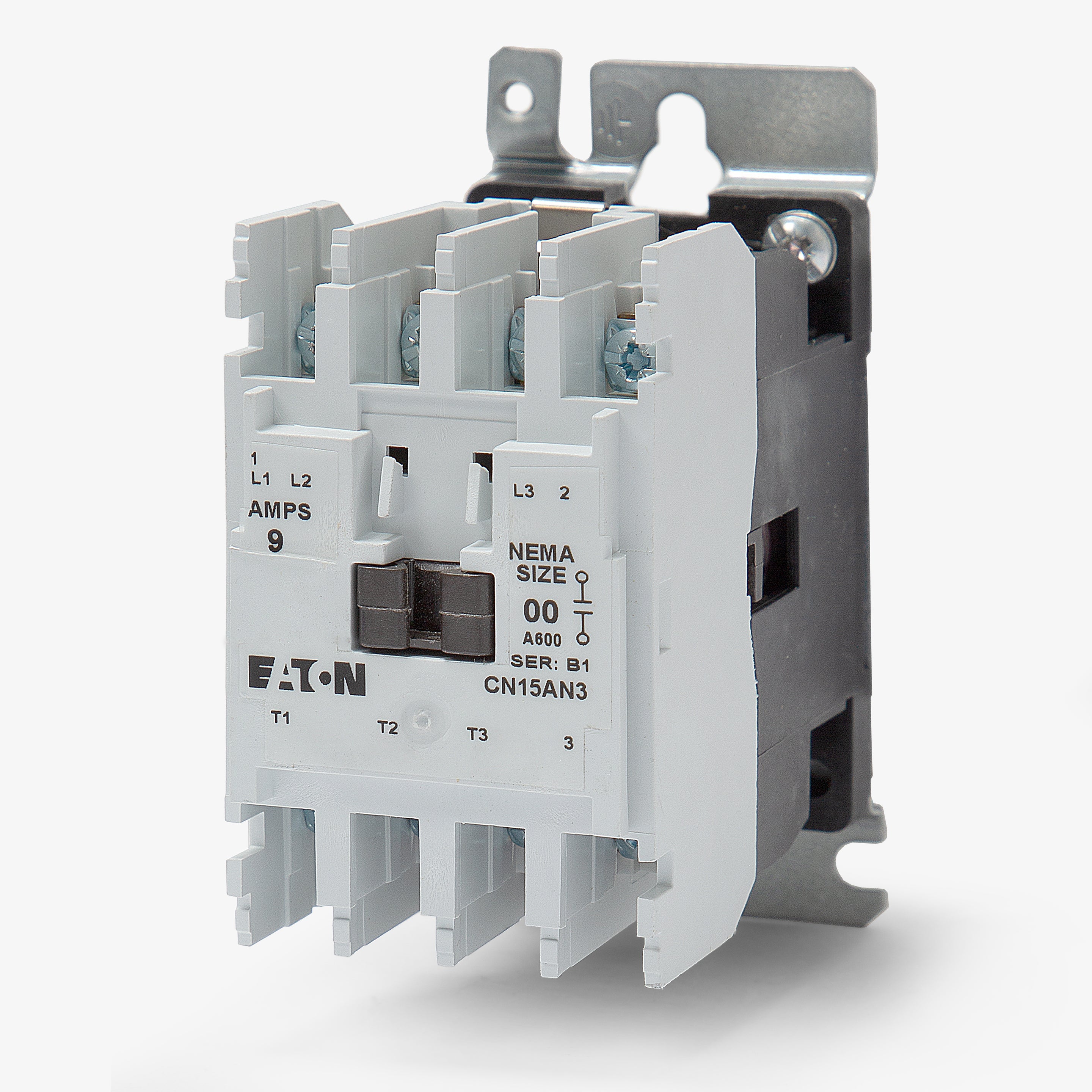

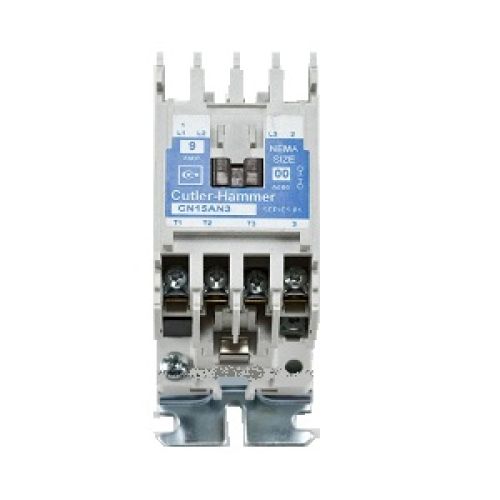

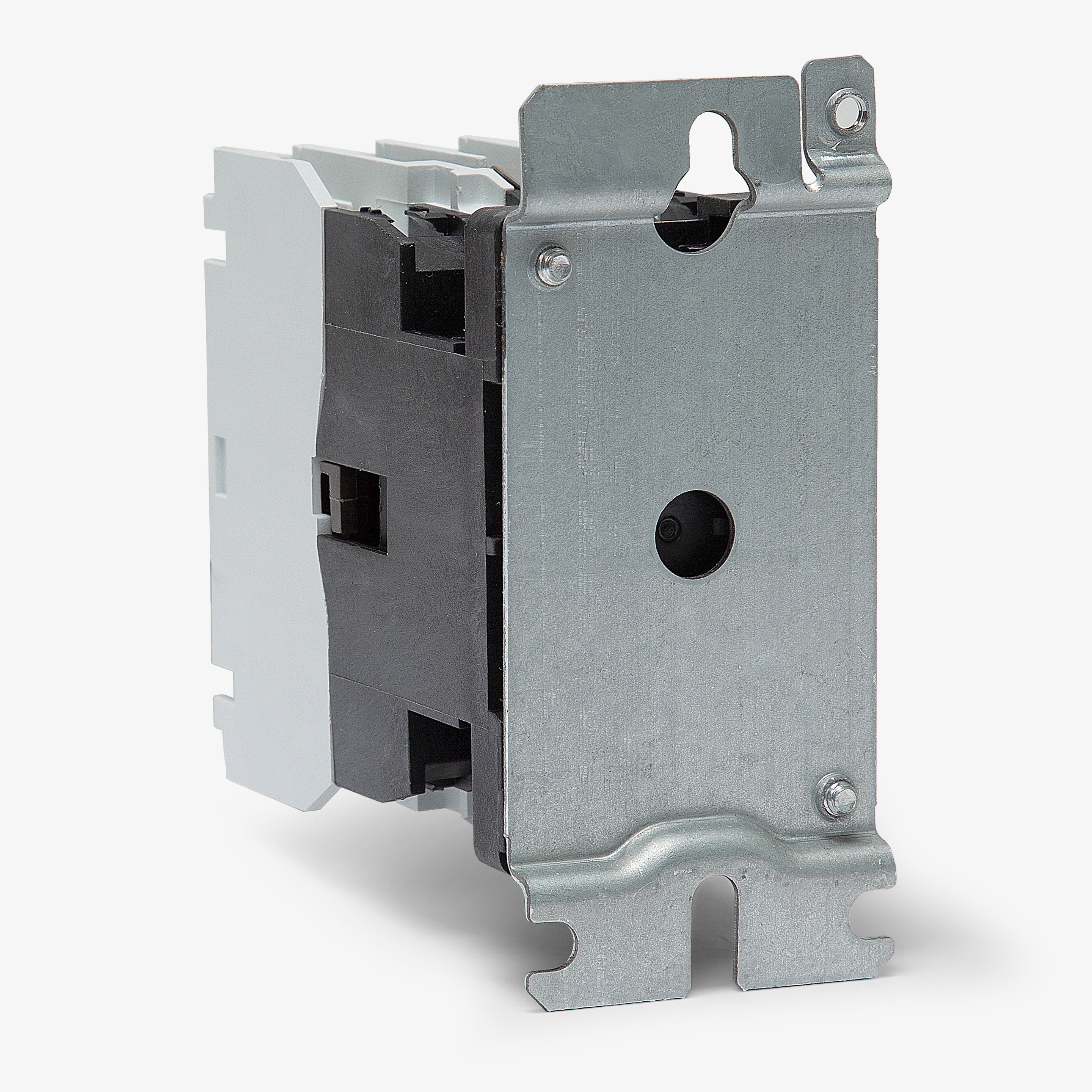

Eaton CN15AN3AB Freedom NEMA motor control contactor 9A Size 00

Product Description

The Eaton CN15AN3AB Freedom NEMA motor control contactor is a NEMA Freedom Series non-reversing contactor. Rated at 1/3 hp at 115V,1 hp at 230V, 1-1/2 hp at 208,240V, 2 hp at 480,600V maximum horsepower, with a 110-120 Vac coil voltage at 50/60 Hz, 9A, three-pole, and Size 00.

• Three-pole contactor with a current rating of 9 Amps
• Coil voltage of 110-120 Vac at 50/60 Hz
• Suitable for motor control systems

Product Highlights

The Eaton CN15AN3AB contactor is designed for use in applications where running overcurrent protection is either not required or is provided separately.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: CN15AN3AB
• Country of Origin: China

Technical Specifications

• Product Name: Eaton Freedom NEMA motor control contactor
• Catalog Number: CN15AN3AB
• UPC: 782113777153
• Product Length/Depth: 3.49 in
• Product Height: 3.88 in
• Product Width: 1.75 in
• Certifications: UL Listed CSA Certified
• Catalog Notes: Common Control
• Product Type: Motor control contactor
• HP rating - max: 1/3 hp at 115V,1 hp at 230V, 1-1/2 hp at 208,240V, 2 hp at 480,600V
• Phase: Single-phase, three-phase
• Number of poles: 3
• Amperage Rating: 9A
• Size: 00
• Coil voltage: 110-120 Vac, 50/60 Hz
• Brand: Eaton Cutler-Hammer
• Series: CN15
• Voltage: 600V
• Poles: 3P
• Contactor Type: Magnetic
• Mpn: CN15AN3AB
• Gtin: 00782113777153
• Category: Business & Industrial
• Country of Origin: China
• Contact Form: 3PST-NO (3 Form A)
• Contact Rating (Current): 9 A
• Packaging: Box
• Switching Voltage: 600VAC - Max
• Part Status: Active
• Termination Style: Screw Terminal
• Mounting Type: Chassis Mount
• Voltage Type: AC
• Frame Type: CN15
• UNSPSC: 39121529
• Approval: UL, CSA
• Application: Commercial, Institutional Buildings and Structures
• Terminal Type: Screw
• Enclosure Type: Open
• Frequency Rating: 50/60
• Enclosure: Open
• Construction Standard: NEMA 600V AC
• Contact Configuration: 1NO
• Operating Temperature: -5 to 65
• Type: Non-Reversing Contactor
• Dimensions: 3.49 in L x 1.75 in W x 3.88 in H
• Hp 1-Phase 230V: 1 Hp
• Hp 3-Phase 200V: 1.5 Hp
• Hp 3-Phase 230V: 1.5 Hp
• Hp 3-Phase 460V: 2 Hp
• Hp 3-Phase 575V: 2 Hp
• Auxiliary Contacts: (1) NO Side Mounted
• UL Cont. Amps: 9A
• Hp 1-Phase 115V: 0.33 Hp
