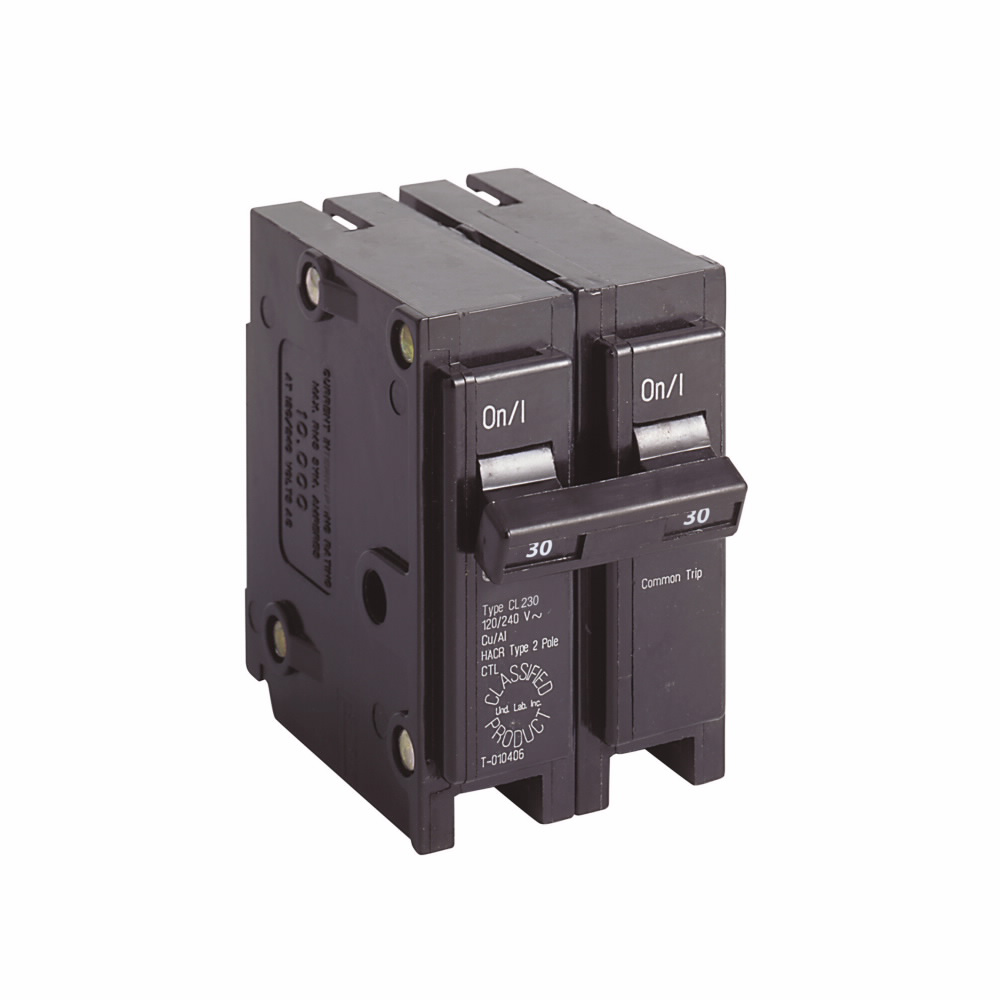

EATON CL230 BREAKER CKT MAG THRM REPLACEMENT 30A 2

Product Description

The EATON CL230 is a thermal magnetic circuit breaker with a current rating of thirty amps and a voltage rating of 120/240 VAC. This circuit breaker is UL classified and is a reliable replacement option for a variety of applications. It features a common trip design and is suitable for use with copper or aluminum wires sized from fourteen to four AWG.

• Common trip mechanism requiring two one-inch spaces
• High interrupt rating of ten kiloamperes
• Plug-on mounting for easy installation

Product Highlights

This circuit breaker provides reliable protection for electrical circuits, ensuring safety and compliance in a range of environments. The breaker is compatible with multiple load centers and offers versatility for various electrical systems.

Product Information

Standard Information

• MPN: CL230
• Brand: EATON

Technical Specifications

• Voltage Rating: 120/240 VAC
• Amperage Rating: 30 A
• Number of Poles: 2
• Interrupt Rating: 10 kAIC
• Mounting Type: Plug-On
• Wire Size: 14 to 4 AWG Copper/Aluminum
• Dimensions: 3 in L x 2 in W x 3 in H
• Temperature Rating: 60 to 75 deg C
• Approval Standard: UL 489
• Phase: 1 ph
