Eaton CL150 classified 3/4 inches thermal magnetic circuit breaker 50a 120/240v single-pole

Product Description

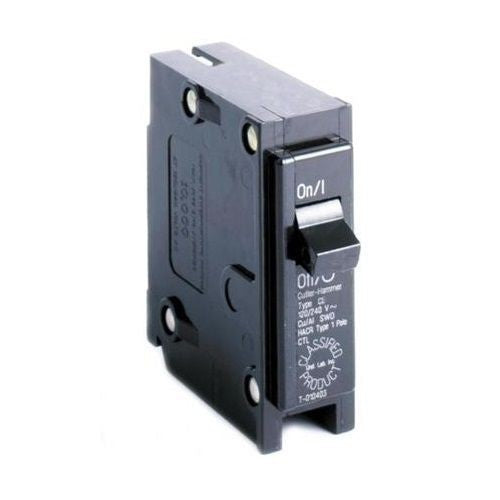

The EATON CL150 is a Classified 3/4" thermal magnetic circuit breaker designed for use in Type CH loadcenters. This single-pole breaker provides 50 A, 120/240V protection with a 10 kAIC interrupt rating. It safeguards electrical wiring from overloads and short circuits in residential and light commercial applications, accepting #14-4 AWG Cu/Al wire.

• Type CL 1-Inch classified replacement breaker
• Replaces Square D Homeline, GE Type THQ, Crouse-Hinds Type MP, Thomas and Betts Type TB, Murray Type MP, ITE/Siemens Type QP
• Requires 1-inch (25.4 mm) space

Product Highlights

Dependable overcurrent and short circuit protection with a 10 kAIC interrupting capacity.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: CL150

Technical Specifications

• Product Type: 3/4" Thermal magnetic circuit breakers
• Compatible Loadcenters: Type CH Loadcenters
• Amperage: 50 A
• Voltage: 120/240 V
• Breaker Type: Type CL
• Interrupt Rating: 10 kAIC
• Wire Size: #14-4 AWG Cu/Al
• Number of Poles: Single-pole
• Certifications: UL 489
• Catalog ID: C-HCL150
• Temperature Rating: 60 to 75 deg C
• Trip Unit Type: Thermal-magnetic
