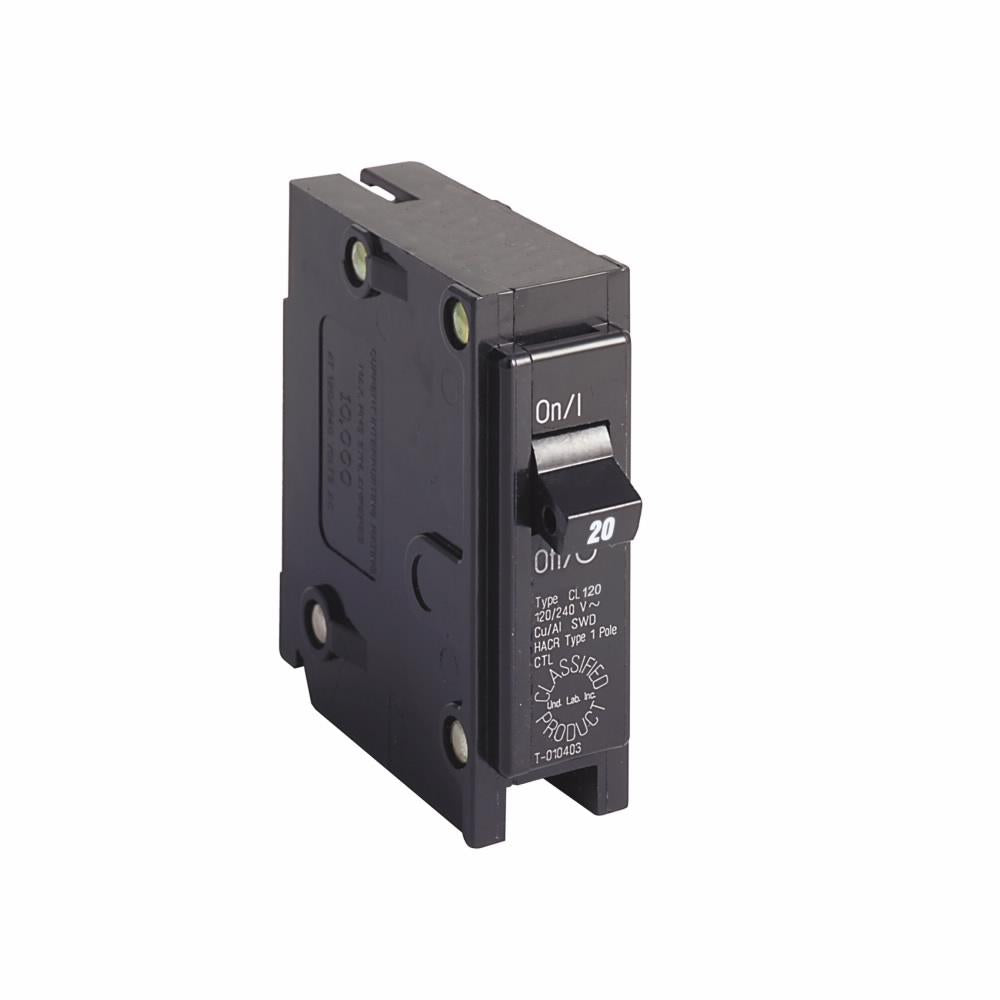

Eaton CL120CS Type CL Replacement Molded Case Circuit Breaker 120/240 VAC 20 A 10 kA Interrupt

Product Description

Eaton CL120CS is a UL classified thermal magnetic circuit breaker designed for Type CL applications. This single-pole breaker operates at a voltage of 120/240 VAC and is rated for 20 Amperes. Its interrupt rating stands at 10 kAIC, making it suitable for residential and commercial applications.

• Single-pole design with thermal magnetic trip
• Meets UL 489 standards for safety
• Allows for wire sizes between #14 to #4 AWG

Product Highlights

The Eaton CL120CS provides reliable circuit protection for various applications including marine vessels, renewable energy systems, and datacenters.

Product Information

Standard Information

• Product Name: Eaton Classified Circuit Breaker
• Manufacturer: Eaton

Technical Specifications

• Catalog Number: CL120CS
• Voltage Rating: 120/240 VAC
• Amperage Rating: 20 A
• Interrupt Rating: 10 kAIC
• Number of Poles: 1
• Connection Type: Plug-In
• Dimensions: 3 inches L x 1 inch W x 3 inches H
• Temperature Rating: 60 to 75 degrees Celsius
• Country of Origin: Dominican Republic
