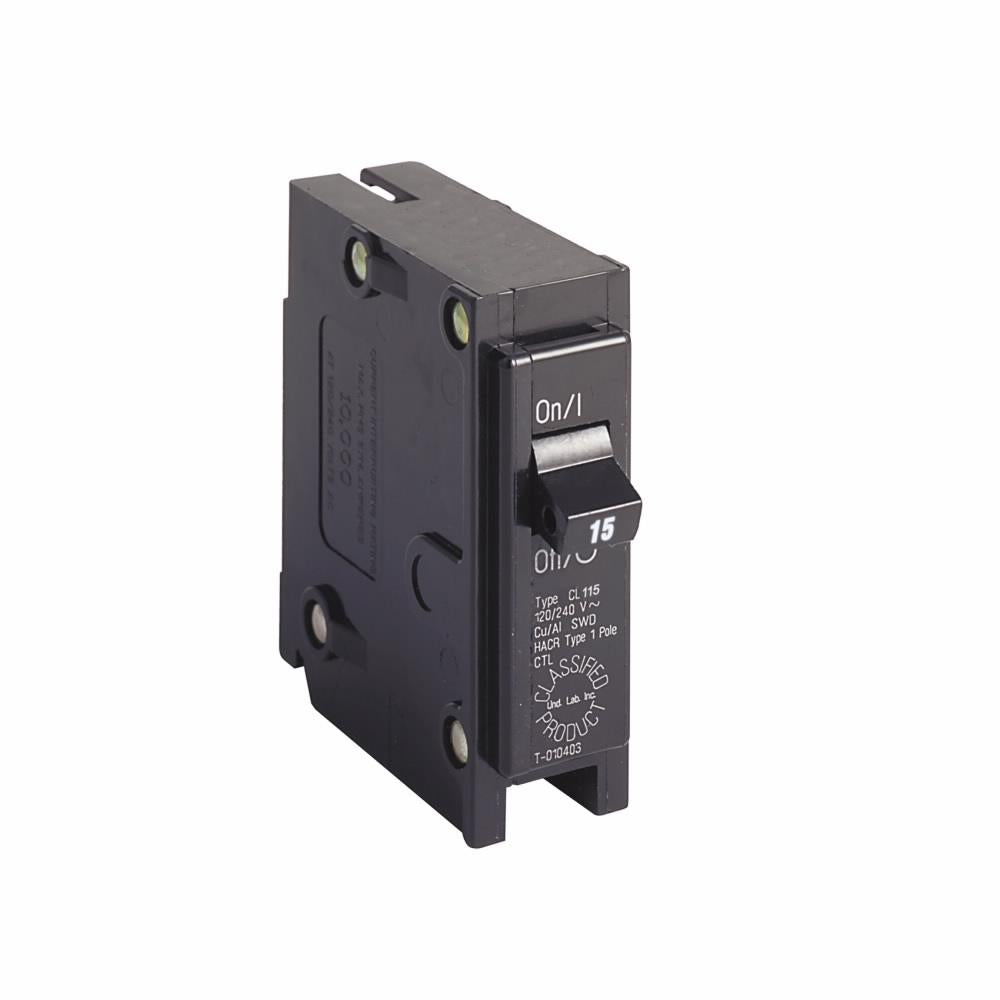

EATON CL115CS Type CL 1 in Replacement Molded Case Circuit Breaker 120/240 VAC 15 A 10 kA Interrupt

Product Description

EATON CL115CS is a molded case circuit breaker designed for 120/240 VAC. It features a 15 A rating and a 10 kA interrupt capacity. This circuit breaker is classified as a direct replacement by Underwriters Laboratories.

• Type CL, 1 Pole, Plug-In
• Temperature rated from 60 to 75 degrees Celsius
• Compatible with 14 to 4 AWG aluminum/copper wire

Product Highlights

This breaker is ideal for residential and commercial applications. Its thermal magnetic trip provides effective overload protection.

Product Information

Standard Information

• Manufacturer: Eaton
• Brand: EATON
• Part #: CL115CS EC
• UPC: 782114753026

Technical Specifications

• Connection Type: Plug-In
• Dimensions: 3 in L x 1 in W x 3 in H
• Phase: 1 ph
• Temperature Rating: 60 to 75 deg C
• Type: Type CL 1 in Replacement
• Wire Size: 14 to 4 AWG Al/Cu
• Voltage Rating: 120/240 VAC
• Amperage Rating: 15 A
• Interrupt Rating: 10 kA
• Number of Poles: 1
• Trip Type: LI/Thermal Magnetic
