Product Description

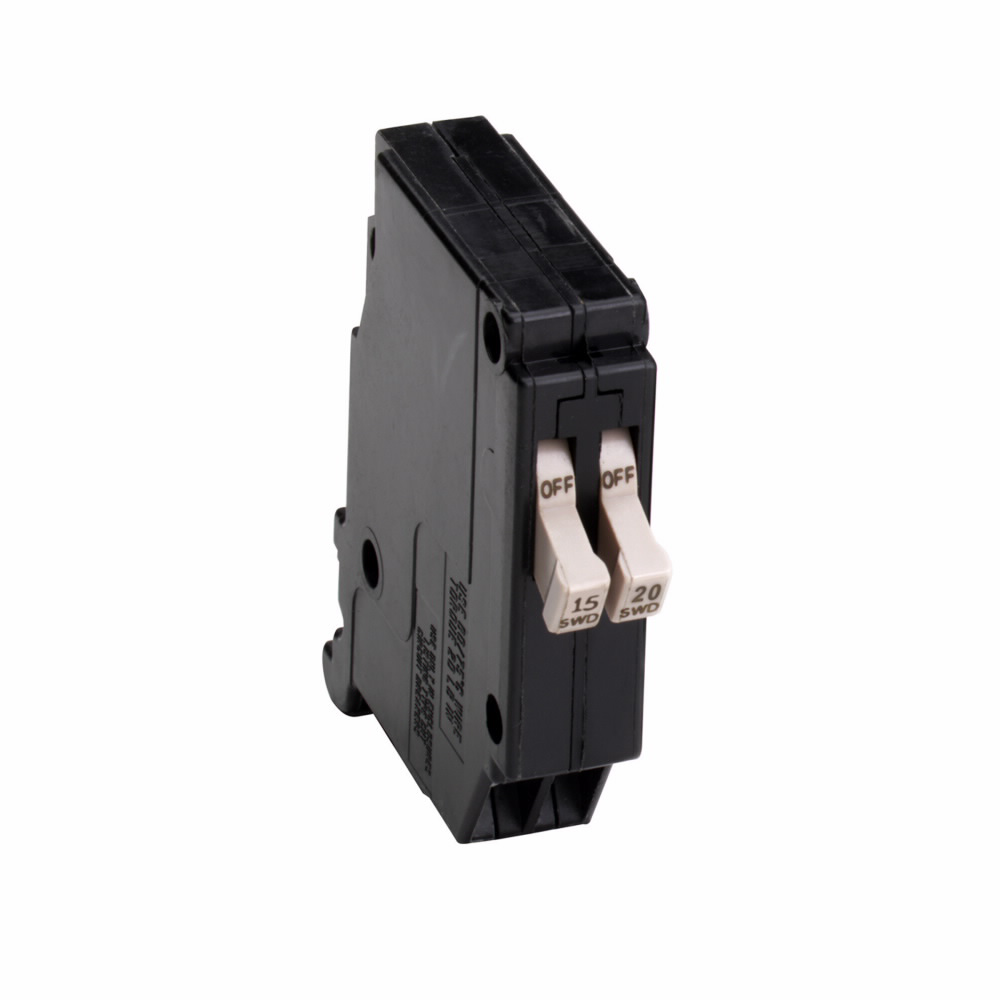

The Eaton CHT1520 is a twin circuit breaker known for its thermal magnetic operation. It operates at 15 to 20 amps and supports a voltage range of 120 to 240 volts. Suitable for residential power distribution, this circuit breaker is designed to fit Type CH loadcenters. It measures seven tenths of an inch in length and two point six inches in height.
- Operates at 15-20 amps
- Voltage rating of 120/240 volts
- Quick-make, quick-break switch mechanism
Product Highlights
This Eaton circuit breaker features a common/LI trip mechanism which ensures quick response during overload or short-circuit conditions. The plug-on mount design allows for easy installation in Type CH loadcenters.
Product Information
Standard Information
-
Brand: Eaton
-
Manufacturer: Cutler-Hammer / Eaton
Technical Specifications
-
Amperage Rating: 15 to 20 amps
-
Voltage Rating: 120/240 volts
-
Frequency Rating: 50-60 Hz
-
Interrupt Rating: 10 kAIC
-
Number of Poles: 1
-
Wire Size: 14-8 AWG
-
Dimensions: 0.7 inch (L) x 0.5 inch (W) x 2.6 inch (H)
