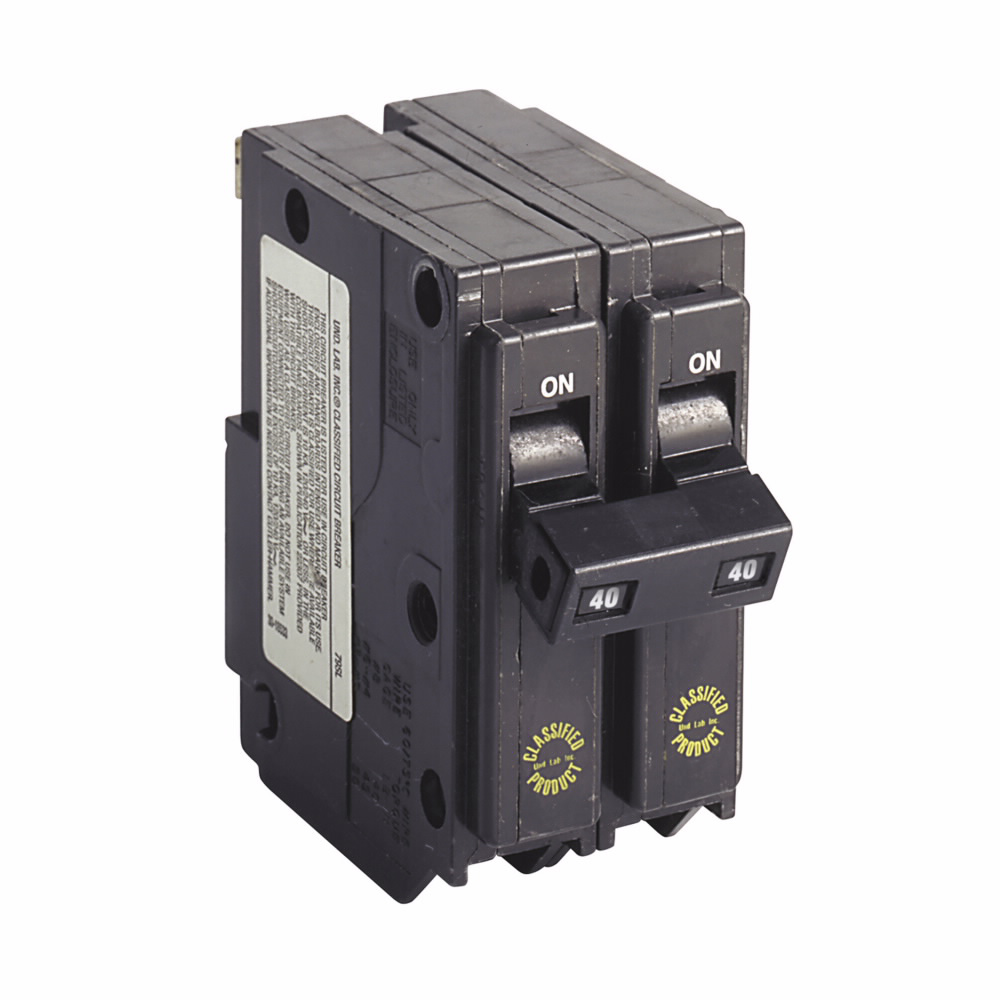

Eaton CHQ240 Type CHQ Classified Replacement Breaker, 120/240 VAC, 40 A, 10 kAIC Interrupt, 2 Poles, Common Trip

Product Description

The Eaton CHQ240 is a Type CHQ classified replacement circuit breaker with the MPN CHQ240. It operates at 120/240 volts and has a maximum amperage rating of forty amps. This dual-pole breaker is designed for reliable circuit protection in residential and commercial applications. Ideal for use in CH load centers, it features a common trip mechanism which allows both poles to trip simultaneously.

• Classified UL replacement circuit breaker
• 40 amp, dual-pole configuration
• Clamshell packaging for easy handling

Product Highlights

This circuit breaker is suitable for various applications including marine vessels and conventional energy generation.

Product Information

Standard Information

• Brand: Eaton
• MPN: CHQ240

Technical Specifications

• Amperage Rating: 40 A
• Voltage Rating: 120/240 VAC
• Trip Type: Common breaker trip
• Number of Poles: 2
• Interrupt Rating: 10 kAIC
• Wire Size: (1) 14 to 8 AWG, (2) 14 to 10 AWG
• Dimensions: 2.5 inches L x 1.5 inches W x 3 inches H
• Country of Origin: Dominican Republic
• Standard: UL 489
• GTIN: 00782113010946
• UPC: 782113010946
