Product Description

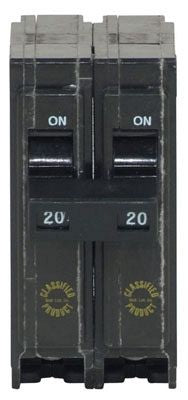

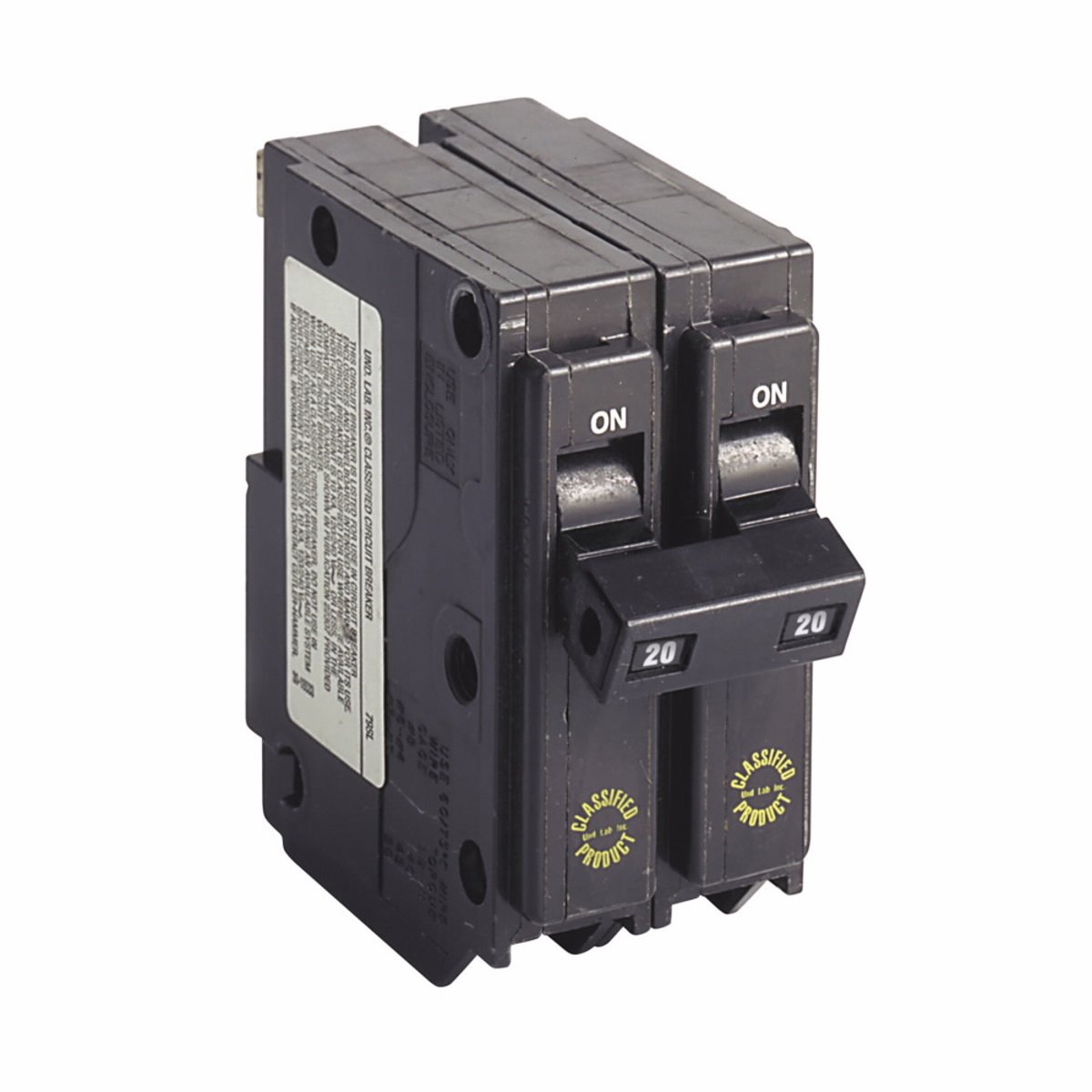

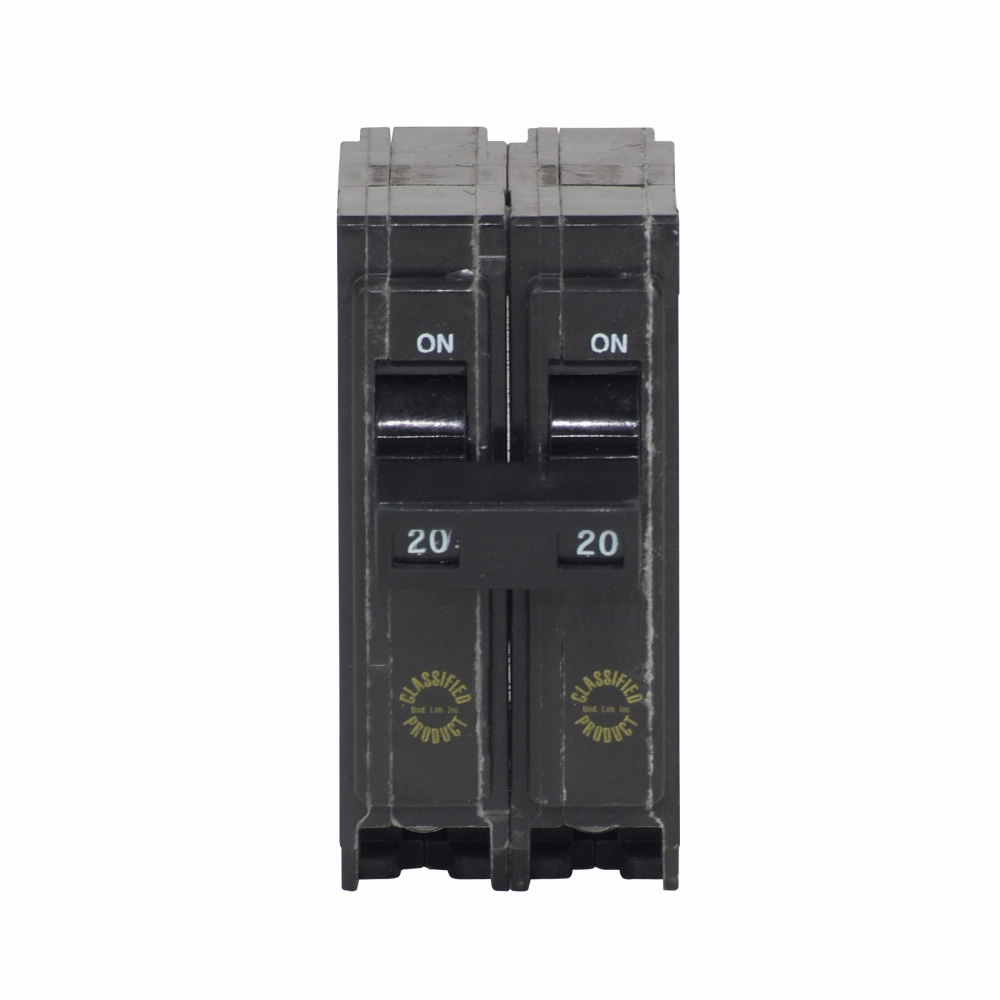

The Eaton CHQ220 is a 3/4 inch classified replacement circuit breaker designed for use in Type CH loadcenters. With a voltage rating of 120/240 volts, this thermal magnetic circuit breaker provides reliable protection for electrical systems. It features a common breaker trip, ensuring safety and efficiency. This model is dual-pole, rated for 20 amps, and has an interrupting capacity of ten kAIC, making it suitable for various applications.
- Type CHQ 3/4-Inch classified replacement
- 20 Amp rating
- Two-pole circuit breaker
Product Highlights
This circuit breaker is a direct replacement for Underwriters Laboratories approved applications, providing peace of mind with a fifteen-year warranty.
Product Information
Standard Information
-
Brand: Eaton
-
Catalog Number: CHQ220
Technical Specifications
-
Voltage Rating: 120/240 V
-
Amperage Rating: 20 A
-
Number of Poles: 2
-
Interrupt Rating: 10 kAIC
-
Wire Size: (1) 14 to 8 AWG Cu/Al, (2) 14 to 10 AWG Cu/Al
-
Type: Type CHQ
-
Application: Suitable for Marine Vessels and Equipment, IT Spaces, and Conventional Energy Generation
-
Country of Origin: Dominican Republic
