EATON CHPY44E225X9 CH Surge Loadcenter 225 A X9

Product Description

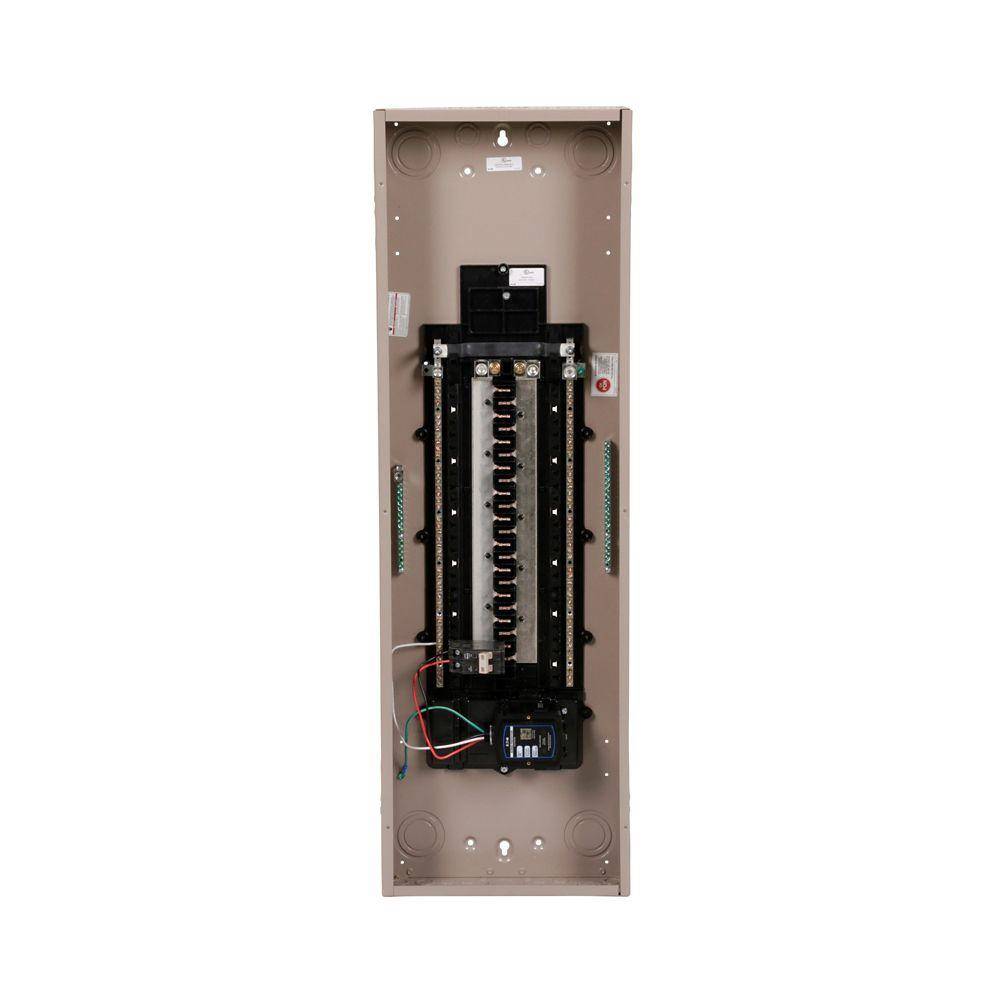

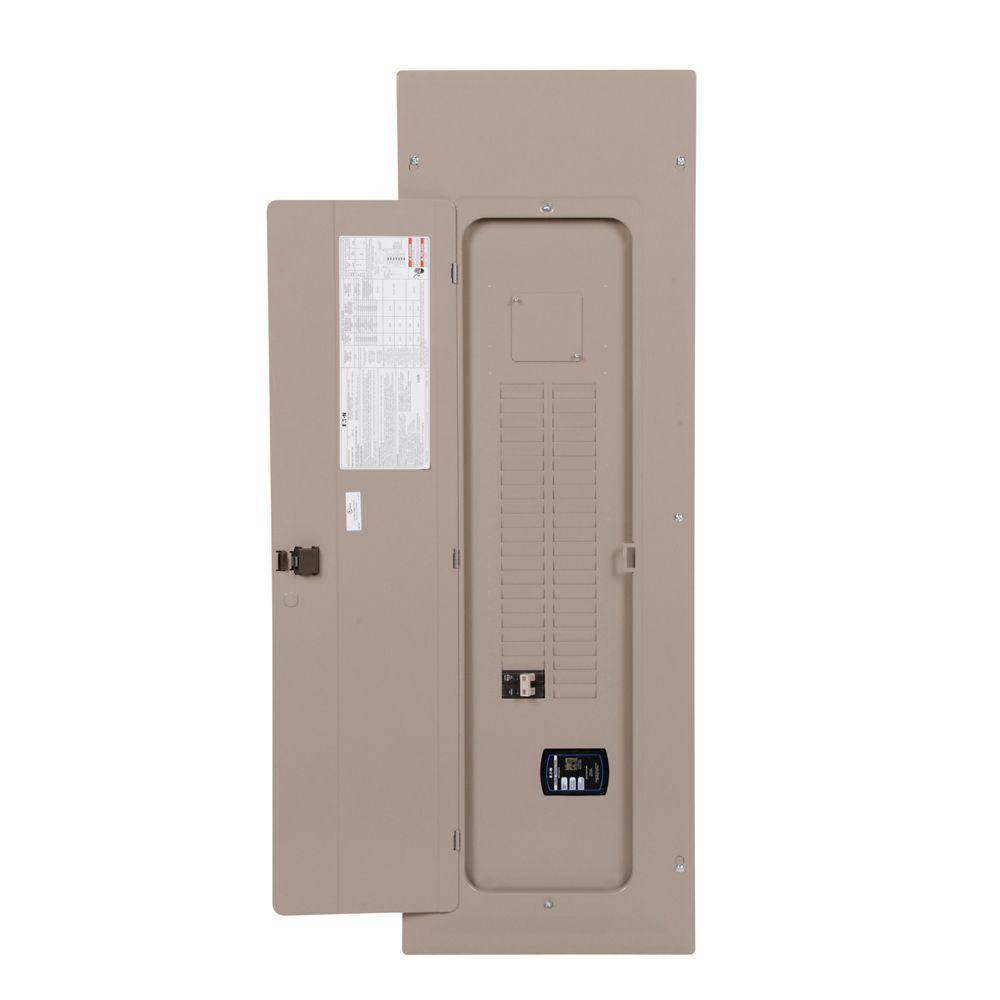

The Eaton CHPY44E225X9 CH surge loadcenter is a single-phase, 225A convertible loadcenter equipped with surge protection and is designed for indoor use. It includes main lugs and offers 44 spaces for circuit breakers, making it suitable for both residential and light commercial installations.

• 225 A amperage rating
• Convertible with main lugs installed

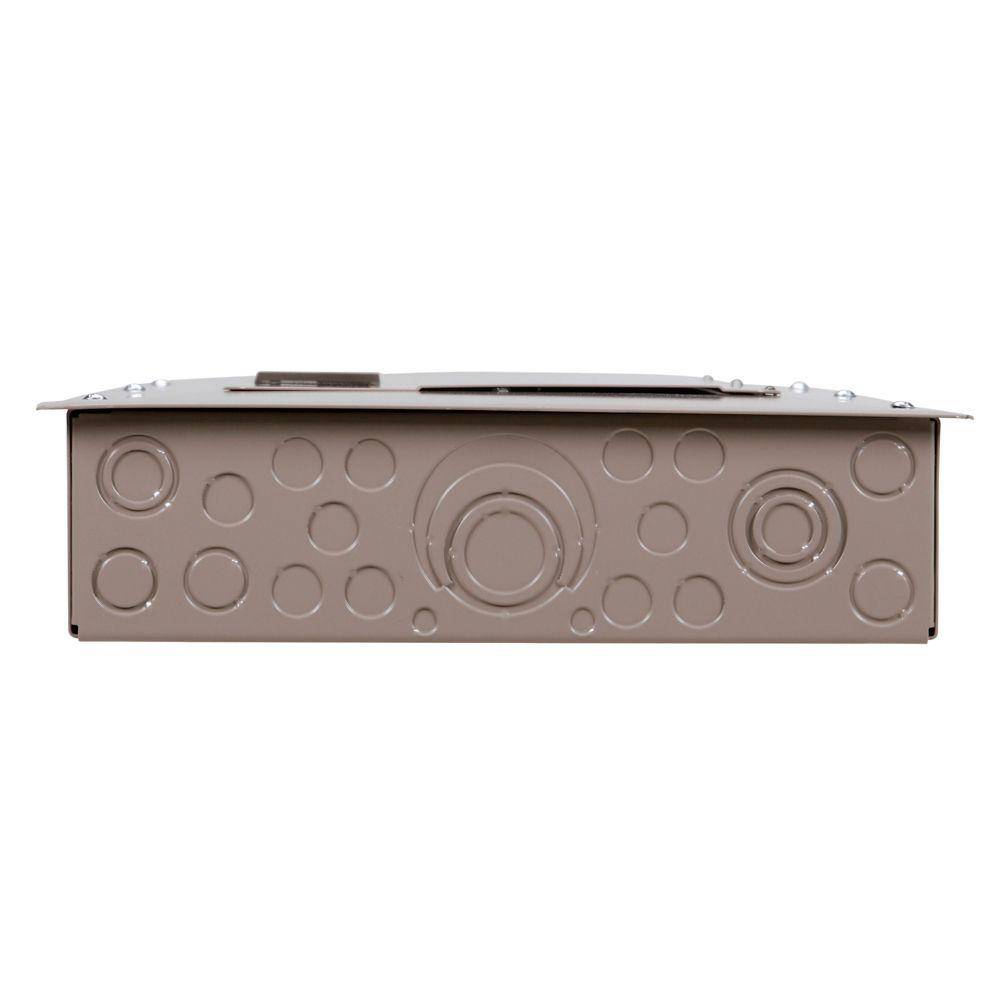

• NEMA 1 metallic enclosure

Product Highlights

The Eaton loadcenter effectively distributes power while providing essential circuit protection. Ideal for homes and smaller commercial buildings.

Product Information

Standard Information

• Product Name: Eaton CH surge loadcenter
• Catalog Number: CHPY44E225X9

Technical Specifications

• Amperage Rating: 225 A
• Voltage Rating: 120/240 V
• Box Size: X9
• Dimensions: 3.88 H x 45 L x 14.31 W inches
• Enclosure Type: NEMA 1
• Bus Material: Copper
• Number of Spaces: 44
• Feed Type: Top/bottom
• Phase: Single-phase
