Product Description

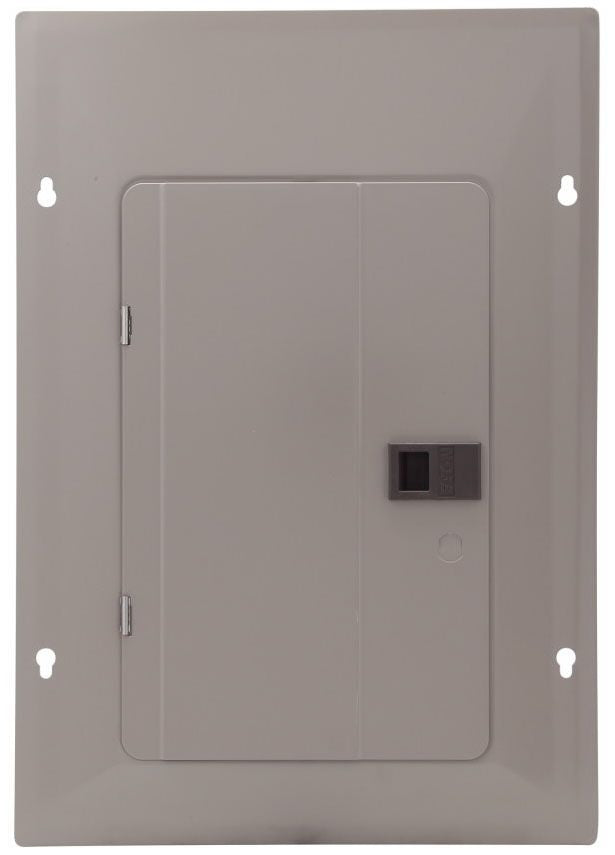

The EATON CHPX2AF is a load center cover designed for flush mounting. It has dimensions of one inch in length, fifteen point thirty-one inches in width, and twenty-two inches in height. This cover is compatible with Type CH three-quarter inch X2 box breakers and provides space for up to twenty-four circuits. It is suitable for residential buildings and light commercial applications.
- Flush mounting capability enhances installation options.
- Compatible with 120/240 VAC, 100/125 A Plug-On Neutral load centers.
- Encloses CH circuit breakers for effective power distribution.
Product Highlights
The EATON CHPX2AF cover is essential for protecting circuit breakers in load centers. It is made from durable materials that meet NEMA 1 standards, suitable for indoor applications.
Product Information
Standard Information
-
Color: Sandalwood
-
Manufacturer: EATON
-
Item Type: Accessory
Technical Specifications
-
Catalog Number: CHPX2AF
-
NEMA Rating: NEMA 1
-
Height: 22 inches
-
Width: 15.31 inches
-
Length: 1 inch
-
Weight: 7.4 pounds
-
Suitable For Use With: Type CH three-quarter inch X2 box breakers
-
Application: Residential buildings and facilities
