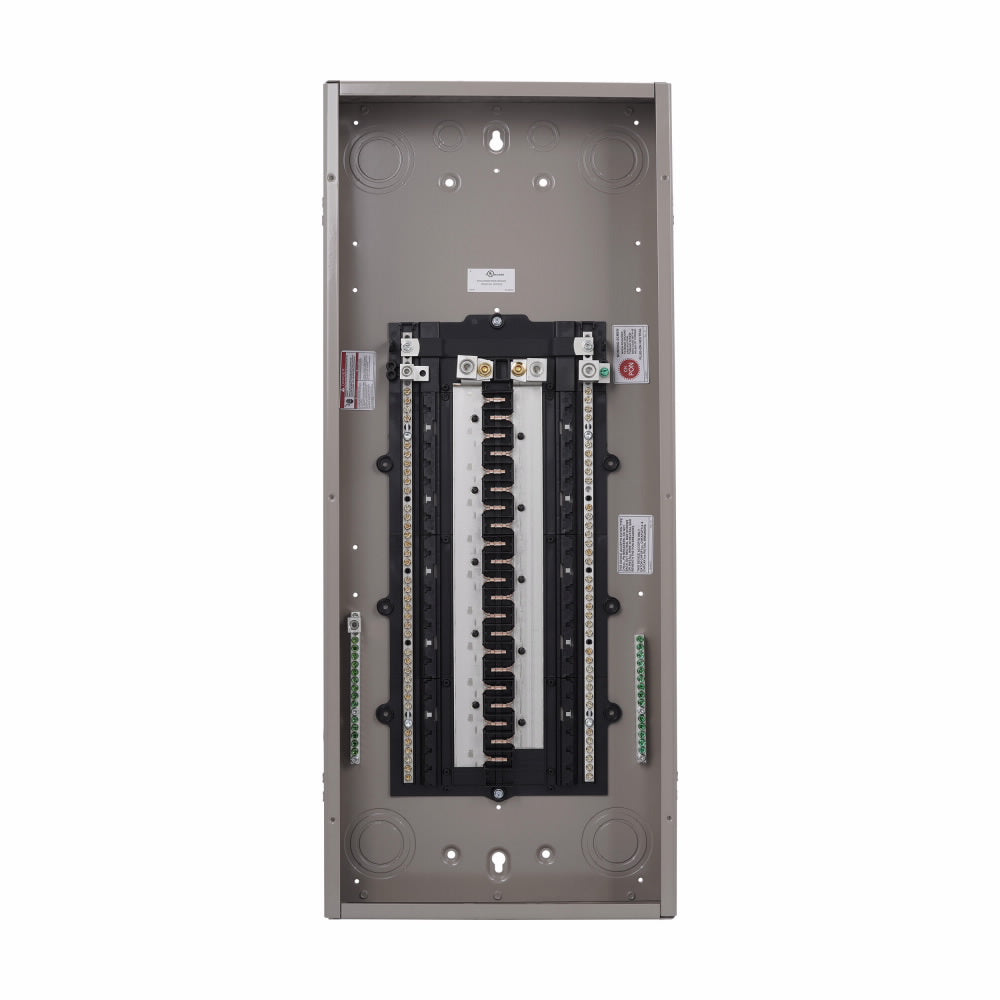

EATON CHP42L225X6 CENTER LOAD LUG MAIN 120/240VAC 225A 1

Product Description

EATON CHP42L225X6 is a main lug load center designed for power distribution and circuit protection. This product operates at 120/240 VAC with a capacity of 225 amperes and features one pole. It is suitable for residential and light commercial applications. Load centers play a crucial role in distributing electricity from utility sources throughout buildings, ensuring that power reaches lights and outlets safely.

• One pole with 225 A capacity.
• Three-wire configuration.
• Plug-on neutral breaker mounting.

Product Highlights

This main lug load center accommodates up to 84 circuits and utilizes CH/CHP circuit breakers for reliable protection. It features a NEMA 1 enclosure made from sheet steel, ensuring durability in indoor applications.

Product Information

Standard Information

• Voltage Rating: 120/240 VAC
• Amperage Rating: 225 A

Technical Specifications

• Breaker Type: CH/CHP
• Number of Poles: 1
• Number of Spaces: 42
• Interrupt Rating: 25 kA
• Wiring Configuration: 3-Wire
• Dimensions: 34.12 in L x 14.31 in W x 3.88 in H
• Wire Size: 4 AWG to 300 kcmil
• Enclosure Type: NEMA 1
